Поз.
Артикул
Описание
1

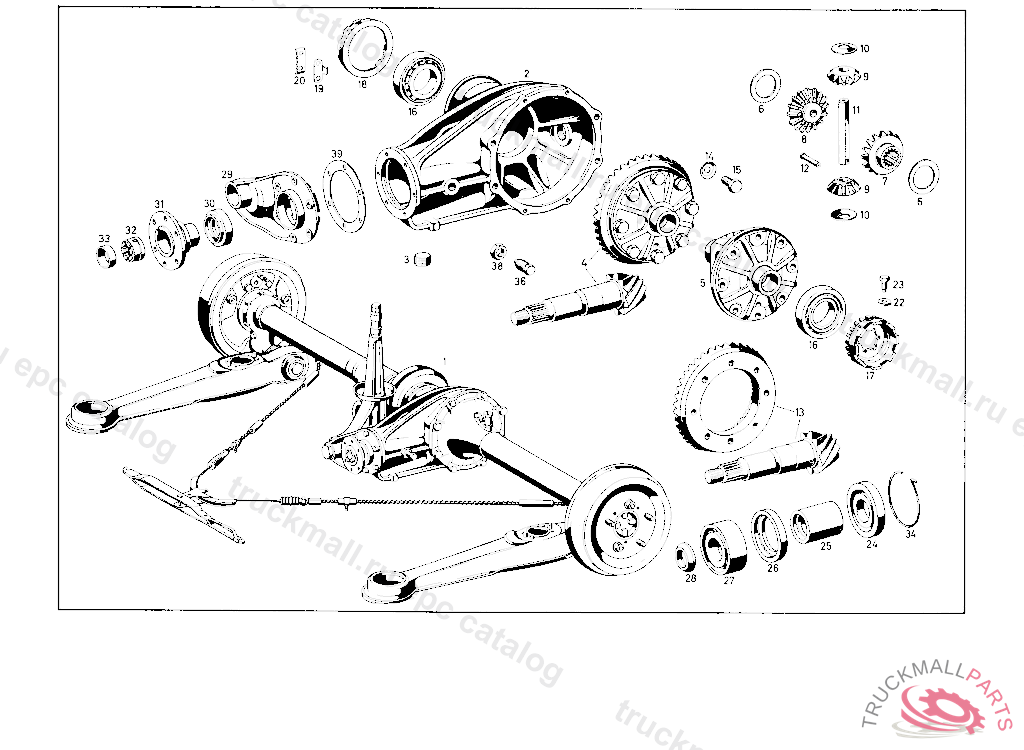

REAR AXLE, COMPLETE, RATIO 1:4.1 IN CASE OF RIGHT-HAND DRIVE, THE BUILT-IN COMPENSATING LEVER FOR HAND BRAKE HAS TO BE EXCHANGED WI
2
REAR AXLE HOUSING, COMPLETE
3
SCREW PLUG , Replaced By: A0009972632
4
DIFFERENTIAL GEAR,. DIFFERENTIAL GEAR, COMPLETE WITHOUT TAPERED ROLLER BEARING, RATIO 1:4.1 EXPORT FOR MADEIRA AND HONKONG
5
DIFFERENTIAL CASE , 000,001,010 UP TO REAR AXLE 088702, 100,101,110 UP TO REAR AXLE 037327, Replaced By: A1103530101, +001A1103530048
6
THRUST WASHER , Replaced By: A1153531162
7
REAR AXLE SHAFT GEAR, LEFT, 16 TEETH
8
REAR AXLE SHAFT GEAR, RIGHT, 16 TEETH
9
DIFFERENTIAL PINION , Replaced By: A1103530214
10
SPHERICAL WASHER
11
PIN
12
PIN
13
DRIVE PINION WITH RING GEAR RATIO 1:4.10 FOR TIRES 6.40-15
14
LOCKING PLATE FOR RING GEAR AT DIFFERENTIAL GEAR HOUSING
15
SECHSKANTSCHRAUBE. HEX.-HD. SCREW FOR RING GEAR TO DIFFERENTIAL CASE
16
TAPERED ROLLER BEARING , Replaced By: N000720030208
17
THREADED RING (FOR REAR AXLE HOUSING FLANGE) DIFFERENTIAL GEAR TO REAR AXLE HOUSING
18
SCREW COLLAR , Replaced By: A1103530125
19
LOCK
20
LOCK
22
LOCKING PLATE. SICHERUNGSBLECH FUR GEWINDERING TRAGROHR LINKS
23
LOCKING SCREW. LOCK SCREW THREADED RING TO REAR AXLE TUBE, LEFT
24
ANNULAR CYLINDER. CYLINDER ROLLER BEARING
25
SPACER SLEEVE
26
PRESSURE RING
27
ANGULAR CONTACT BEARING, TWO ROWS
28
SHOULDER RING
29
COVER FOR REAR AXLE HOUSING, FRONT
30
SEALING RING
31
JOINT FLANGE, BOLTHOLE CIRCLE DIA. 90-MM FOR DRIVE PINION FROM REAR AXLE 6501926
32
GROOVED NUT
33
LOCK
34
SNAP RING, REAR
36
STELLSCHRAUBE. ADJUSTING SCREW FOR THRUST RING
38
HEX.NUT FOR ADJUSTING SCREW
39
SHIM 1.00 MM THICK OPTIONAL
999
SHIM 1.10 MM THICK OPTIONAL
999
SHIM 1.20 MM THICK OPTIONAL
999
SHIM 1.30 MM THICK OPTIONAL WITH 120 353 24 52/26 52
999
SHIM 1.40 MM THICK OPTIONAL WITH 120 353 24 52/26 52
999
SHIM 1.50 MM THICK. SHIM, 1.50 MM THICK OPTIONAL
999
SHIM 1.60 MM THICK OPTIONAL
999
SHIM 1.70 MM THICK. SHIM, 1.70 MM THICK OPTIONAL
999
SHIM 1.80 MM THICK. SHIM, 1.80 MM THICK OPTIONAL
999
SHIM 1.90 MM THICK OPTIONAL WITH 120 353 24 52/26 52
999
SHIM 2.00 MM THICK. SHIM, 2.00 MM THICK OPTIONAL
999
SHIM 2.05 MM THICK OPTIONAL WITH 120 353 24 52/26 52
999
REAR AXLE HOUSING, WITH LEFT REAR AXLE TUBE, WITHOUT SLIDING JOINT, WITHOUT RIGHT REAR AXLE TUBE AND WITHOUT REAR AXLE SHAFTS, RAT
999
LOCK
999
LOCK
999
LOCK
999
LOCK
999
THRUST WASHER , Replaced By: A1153531062
999
THRUST WASHER , Replaced By: A1153530962
999
THRUST WASHER , Replaced By: A1153530862
999
THRUST WASHER AS REQUIRED 1.7 MM
