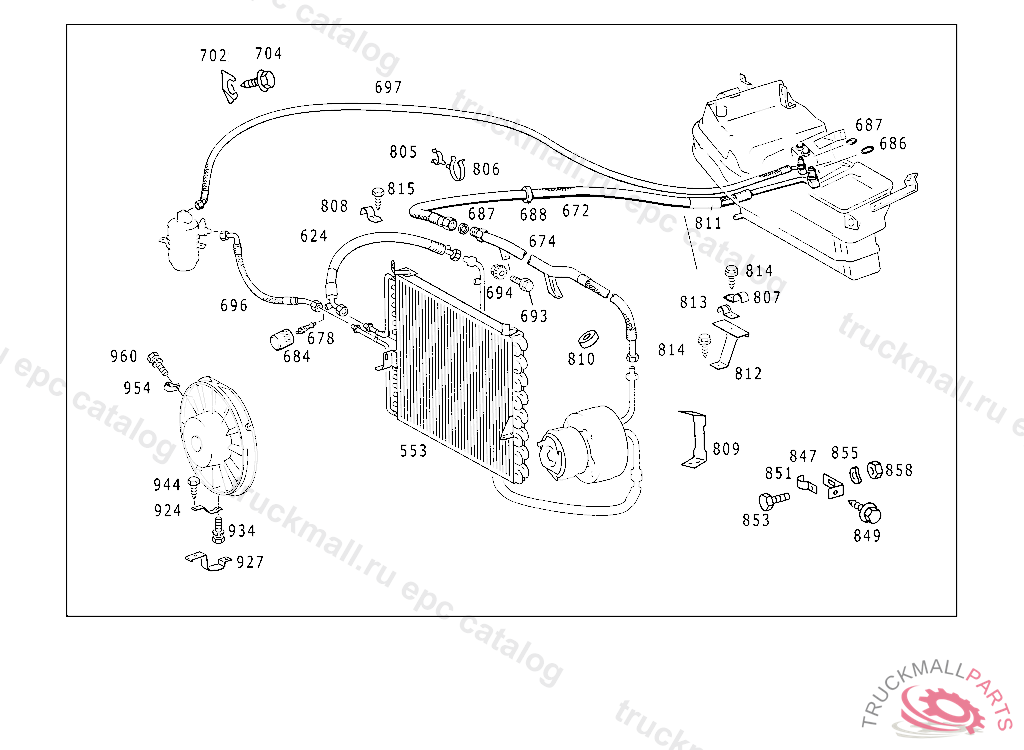

Поз.
Артикул
Описание
553
CONDENSER
553
CONDENSER
553
CONDENSER
553
CONDENSER , 023 016993 033 012222 123 009145 130 014497 033 098845 123 303955 130 266592 223 083075
624
PIPE LINE FROM COMPRESSOR TO CONDENSER
672
PIPE LINE FROM EXPANSION VALVE TO COMPRESSOR
672
PIPE LINE FROM BRACKET TO EXPANSION VALVE, UP TO MODEL YEAR '81130 157340
672
PIPE LINE FROM EXPANSION VALVE TO BRACKET
674
PIPE LINE FROM COMPRESSOR TO BRACKET, 123.126 UNTIL PRODUCTION STOP 123.102,103,123,125 140181-282684123.105,130,132 157339-257362123.120 170970-283524123.150 004735
674
PIPE LINE FROM COMPRESSOR TO BRACKET
678
VALVE INSERT , NOT USED
684
CAP (PARTS KIT),CAP
686
SEAL RING HOSE TO CONDENSER 14 MM
687
O-RING HOSE TO EXPANSION VALVE 17X2
688
RUBBER RING
688
GROMMET MAIN CABLE HARNESS THRU WINDOW SILL 36X25 MM
693
HEXAGON HEAD BOLT
694
NUT CLAMP TO BRACKET
696
PIPE LINE FROM CONDENSER TO LIQUID TANK
697
PIPE LINE FROM LIQUID TANK TO EXPANSION VALVE
697
PIPE LINE FROM LIQUID TANK TO EXPANSION VALVE
702
BRACKET
704
SHEET METAL SCREW
805
CLAMP , Replaced By: A0005465143
806
CLAMP HOSE TO HOSE 20 MM
807
CLAMP , UP TO CHASSIS107.024 012078 107.044 029875
807
CLAMP COMPRESSOR-TO-CONDENSER REFRIGERANT LINE TO SIDE MEMBER
808
CLAMP , UP TO CHASSIS107.024 012078 107.044 029875
809
BRACKET COMPRESSOR-TO-CONDENSER REFRIGERANT LINE TO SIDE MEMBER
810
RUBBER RING
811
INSULATING HOSE COMPRESSOR-TO-CONDENSER REFRIGERANT LINE TO SIDE MEMBER 250 MM,130 157340
812
BRACKET COMPRESSOR-TO-CONDENSER REFRIGERANT LINE TO SIDE MEMBER,033 035262
813
CLAMP , UP TO CHASSIS107.024 012078 107.044 029875
813
CLAMP TO MOUNT MAIN CABLE HARNESS
814
SHEET METAL SCREW , ONLY FOR MODELS 123.020,023,043,083
814
SHEET METAL SCREW
815
SHEET METAL SCREW BRACKET TO CAB FLOOR
847
BRACKET
849
SCREW , TO BE ADAPTED DURING ASSEMBLY
851
CLAMP TO MOUNT MAIN CABLE HARNESS
853
SCREW COVER PLATE TO COVER PLATE M 6 X 12
855
SPRING WASHER LICENSE PLATE TO BRACKET
858
NUT BALL PIVOT TO LEVER
924
BRACKET AUXILIARY FAN
927
BRACKET AUXILIARY FAN
934
COMBINATION BOLT
944
SHEET METAL SCREW BRACKET TO CAB FLOOR
954
CLAMP
960
COMBINATION BOLT
999
AIR CONDITIONER RANGE OF DELIVERY FOR SUBSEQUENT INSTALLATION
999
AIR CONDITIONER RANGE OF DELIVERY FOR SUBSEQUENT INSTALLATION
999
AIR CONDITIONER RANGE OF DELIVERY FOR SUBSEQUENT INSTALLATION
