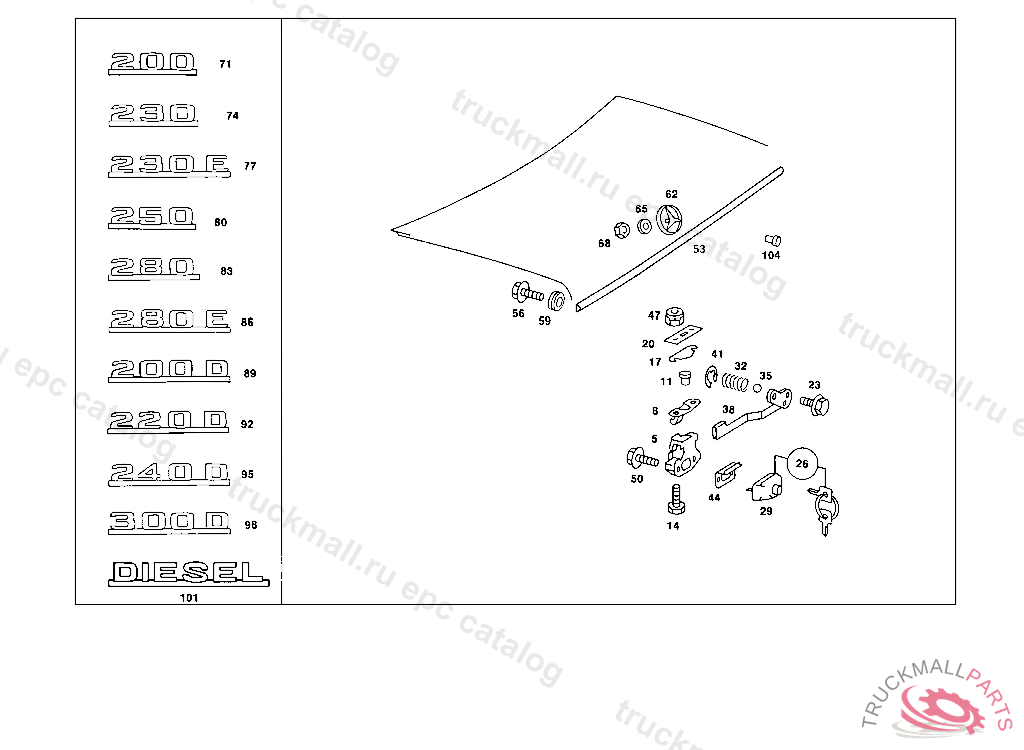

Поз.
Артикул
Описание
5
LOCK LOWER PART, BURGLARY ALARM SYSTEM
5
LOCK BOTTOM, USED WITH CENTRAL LOCKING MECHANISM
5
LOCK , Replaced By: A1267501885
5
LOCK , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A1267501885
8
LOCK UPPER PART
11
RUBBER BUFFER
14
SCREW , Replaced By: N304017006018
14
SCREW COVER PLATE TO COVER PLATE M 6 X 12
17
PAD
20
PLATE
23
SCREW , Replaced By: N910105006002
23
HEXAGON HEAD BOLT
26
LOCK WORKSHOP VERSION WITH KEY, ONLY W/CODE 466 (CENTRAL LOCKING MECHANISM)
26
LOCK WORKSHOP VERSION, WITH KEY, USED WITHOUT CODE 466 (CENTRAL LOCKG.MECHANISM)
29
LOCK LESS KEY, USED WITH CENTRAL LOCKING MECHANISM, STATE LOCK NUMBER WHEN ORDERING
29
LOCK LESS KEY, USED WITHOUT CENTRAL LOCKING MECHANISM, STATE LOCK NUMBER WHEN ORDERING
32
SPRING
35
BALL
38
PUSH BUTTON BASE USED WITH CENTRAL LOCKING MECHANISM
41
LOCK PLATE PIN TO CLUTCH SLAVE CYLINDER BOOT, Replaced By: N006799005004
44
PAD
47
NUT HEATING PIPE TO BRACKET
47
NUT , Replaced By: N913004006001
47
NUT PUMP TO BRACKET
50
SCREW , 023 001800 033 005039 123 001592 130 001725
53
HANDLE (GARNISH MOULDING),REAR LID
56
SCREW
59
SEAL RING REAR LID
59
SEAL RING , Replaced By: A2019970140
62
MERCEDES STAR REAR LID
65
RUBBER RING
68
NUT , Replaced By: N304032008006
68
NUT
77
TYPE DESIGNATION ON REAR LID "230 E"
104
GROMMET
