Поз.
Артикул
Описание

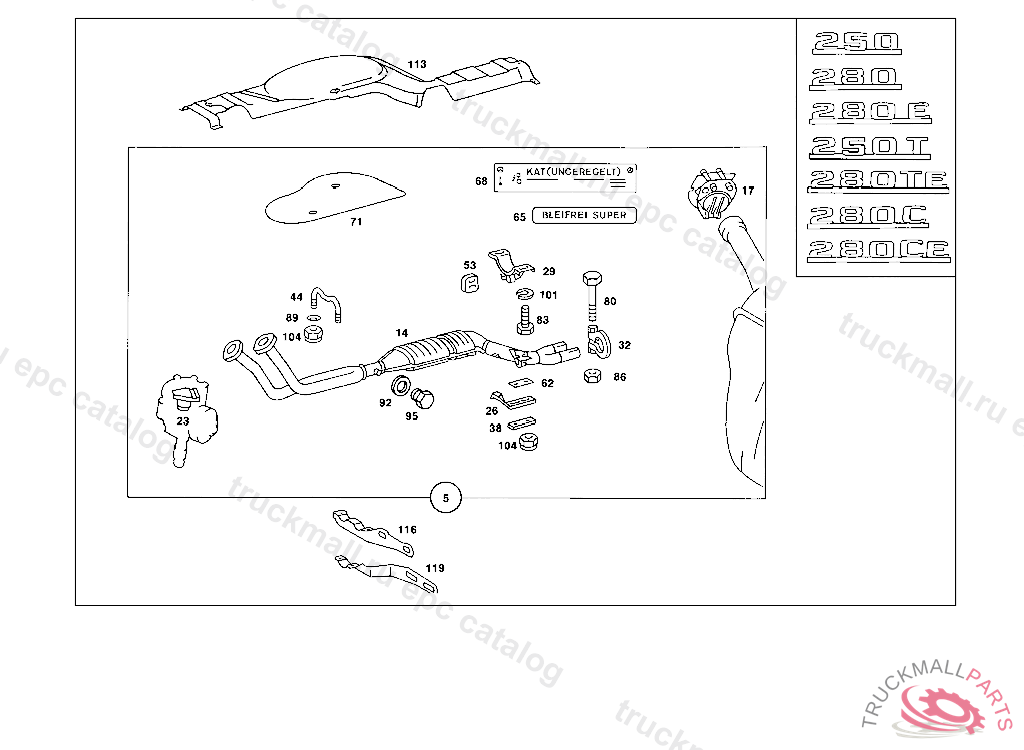

17
FILLER NECK
17
FUNNEL , Replaced By: A1694700029
26
BRACKET
29
BRACKET
38
BASE PLATE
53
DAMPING PAD , 003 078977 086 003334 ALSO INSTALLED ON 002924,002958,002959,002981,003004,003013,003017,003025,003114,003171,003282-003298,003300-003332.
62
INSULATION
65
GUIDE SIGN
68
GUIDE SIGN
71
SCREENING MAIN FLOOR,RIGHT, FROM CHASSIS 123.033 041774
83
SCREW PIPE CLAMP
83
SCREW , Replaced By: N304017008021
86
NUT
89
DISC SPRING EXHAUST PIPE TO BRACKET
92
SEAL RING VALVE TO VALVE,K 025179
95
SCREW PLUG
101
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
104
NUT POWER CYLINDER TO BRACKET
104
NUT , Replaced By: A0009903250
113
SCREENING
