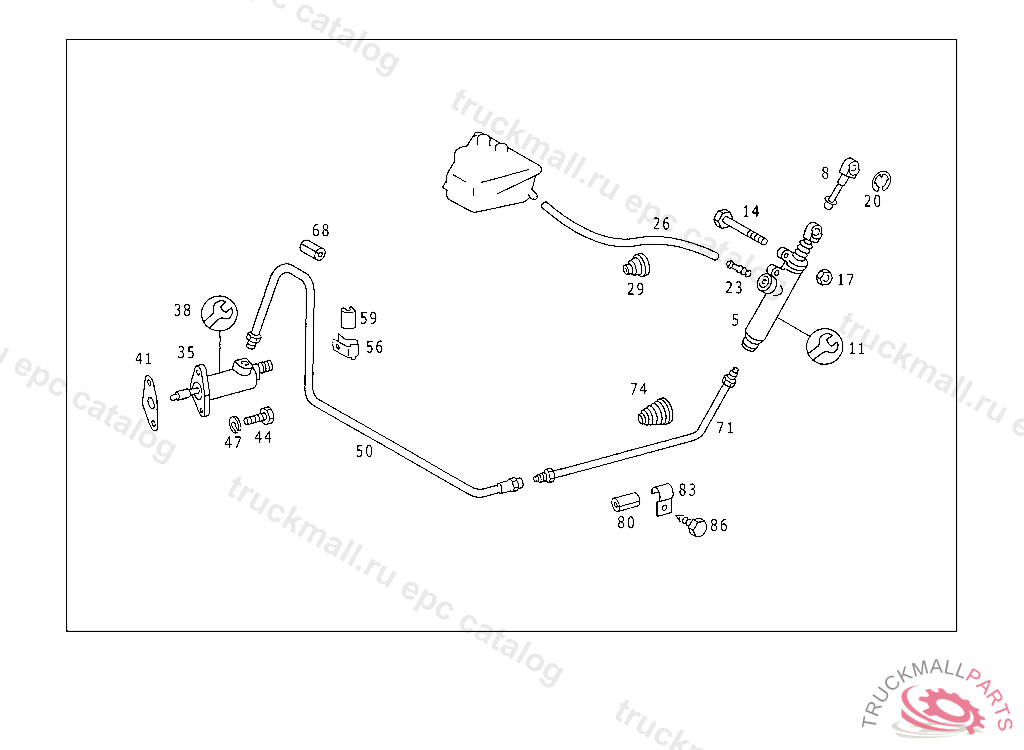

Поз.
Артикул
Описание
5
MASTER CYLINDER. CYLINDER
5
MASTER CYLINDER , Replaced By: A2022900112
8
RODTO 001 295 31 06, A 050827 F 003714
11
REPAIR KIT MASTER CYLINDER TO 001 295 31 06,68 06, A 050827 F 003714
14
SCREW CONNECTOR
17
NUT BATTERY MOUNTING
20
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
23
INTERMEDIATE PIECE REFILLING LINE TO MASTER CYLINDER
26
HOSE FROM RESERVOIR TO MASTER CYLINDER 270MM
29
BOOT
35
SLAVE CYLINDER , USED WITH TRANSMISSION: GL 76/27, 717.445
38
REPAIR KIT SLAVE CYLINDER TO 2012900311,0002958207
41
SHIM SLAVE CYLINDER TO TRANSMISSION CASE
44
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
47
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
50
PIPE CLUTCH LINE, 103.942 0 019878 602.961 0 005939
50
PIPE FROM CLUTCH HOSE TO SLAVE CYLINDER
50
PIPE FROM CLUTCH HOSE TO SLAVE CYLINDER
56
BRACKET PIPE LINE TO BELL HOUSING
59
BUSHING PIPE LINE TO BELL HOUSING
68
HOSE30 MM, ORDER BY THE METER
71
LINE FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER, TO BE ADAPTED DURING ASSEMBLY
71
LINE FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER,A 789815
71
LINE , Replaced By: A1003204153
74
BOOT FLEXIBLE SHAFT THRU FIRE WALL
80
HOSE30 MM, ORDER BY THE METER
83
CLAMP
86
SHEET METAL SCREW
86
SHEET METAL SCREW PIPE LINE TO FIRE WALL
