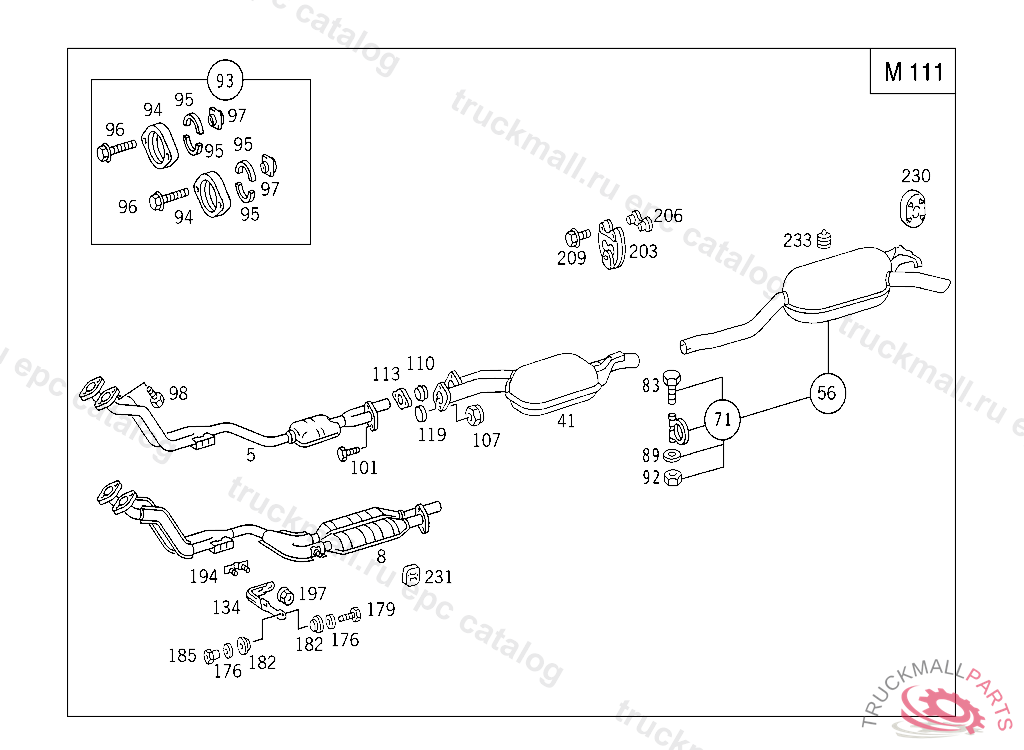

Поз.
Артикул
Описание
56
EXHAUST MUFFLER WITH PIPE REAR, NOT FOR R.S.A.
71
CLAMP , Replaced By: A0004900741
71
CLAMP
83
SCREW VALVE TO BRACKET M 8X55
89
WASHER BRACKET TO CROSS MEMBER
92
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
93
FLANGE PARTS KIT, REPAIR SIZE
94
FLANGE
95
THRUST RING
96
SCREW LOCKING BOLT M8X65,V 208920
97
NUT
98
SCREW LOCKING BOLT M8X65,V 208920
101
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL
101
SCREW VALVE TO BRACKET M 8X55
107
NUT POWER CYLINDER TO BRACKET
107
NUT , Replaced By: A0009903250
110
SEAL RING
110
SEAL RING , Replaced By: A2024920381
176
WASHER HIGH PRESSURE HOSE TO BRACKET
179
SCREW , Replaced By: N304017008021
179
SCREW PIPE CLAMP
182
RUBBER RING BRACKET TO MOUNTING PLATE OR TO TRANSMISSION
185
NUT BRACKET TO MOUNTING PLATE OR TO TRANSMISSION
203
SUSPENSION RING MAIN MUFFLER SUSPENSION
206
CLAMPING PIECE MAIN MUFFLER SUSPENSION
209
COMBINATION BOLT BRACKET TO EXHAUST MUFFLER
233
RUBBER BUFFER IN FRONT OF,AND BEHIND,POSTERIOR MUFFLER
