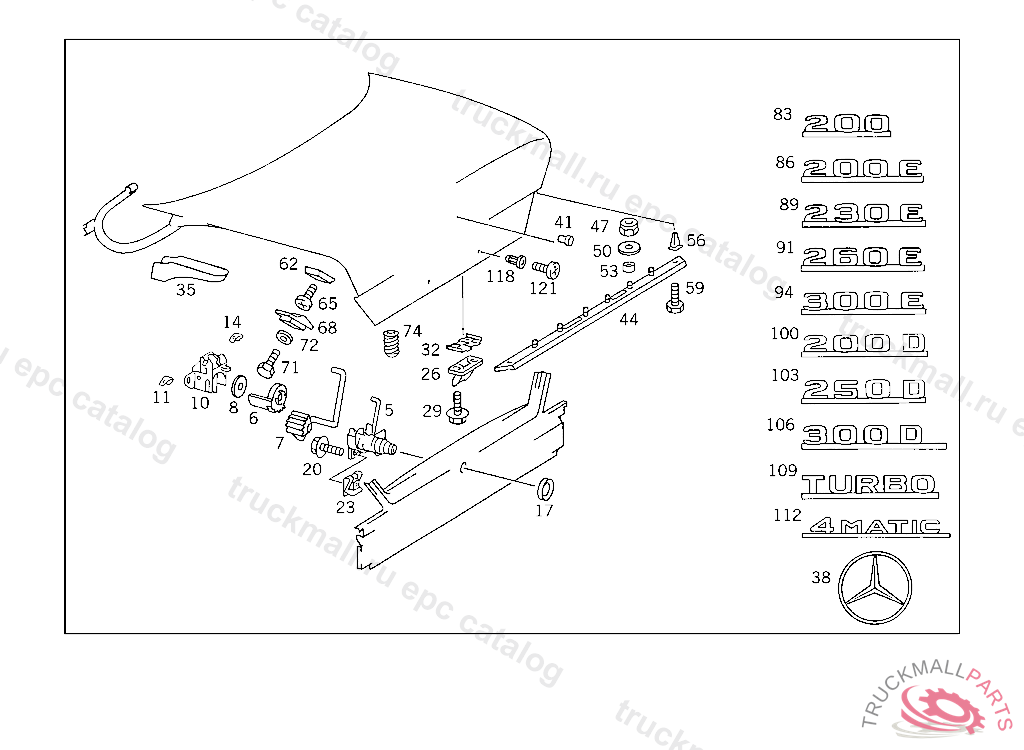

Поз.
Артикул
Описание
5
TUMBLER WORKSHOP VERSION WITH KEY, ONLY W/CODE 466 (CENTRAL LOCKING MECHANISM)
5
TUMBLER LESS KEY, USED WITH CENTRAL LOCKING MECHANISM, STATE LOCK NUMBER WHEN ORDERING
5
TUMBLER , Replaced By: A1247501591
5
LOCK , Replaced By: A1247500191
6
PUSH BUTTON BASETO 124 750 01 91
7
ROD REAR LID ELEMENT
8
WASHERTO 124 750 01 91
10
FASTENER
11
GUIDE LEFT
14
GUIDE RIGHT
17
SEAL BETWEEN LOCK AND REAR LID
20
SCREW LEVER TO ENGINE CONTROL SHAFT
20
SCREW , Replaced By: N910105006023
23
NUT RETAINER LEFT AND RIGHT BUMPER FACE BARS TO CENTRAL PART
26
BRACKET , Replaced By: A1247500432
26
BRACKET
29
SCREW , Replaced By: N910105006002
29
HEXAGON HEAD BOLT
32
PLATE REAR LID STIFFENING
35
COVERING HINGE LEVER CONSOLE
35
COVERING , Replaced By: A1247580129
38
MERCEDES STAR
41
GROMMET MERCEDES STAR TO REAR LID
44
HANDLE , Replaced By: A1247500193
44
HANDLE REAR LID
47
NUT TWO-WAY VALVE TO BRACKET
50
WASHER , Replaced By: N009021005205
50
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
53
RUBBER RING SIGNAL LAMP TO ROOF
53
RUBBER RING , Replaced By: A0009873841
56
TREENAIL , Replaced By: A6399980185
56
TREENAIL BRACKET TO FIRE WALL
59
SCREW HANDLE LEDGE TO REAR LID
62
STOP REAR LID
65
SCREW CLAMP MOUNTING M 6X16
65
SCREW , Replaced By: N000000001146
68
STOP REAR FENDER
71
SCREW COVER PLATE TO COVER PLATE M 6 X 10
71
SCREW , Replaced By: N304017006034
72
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
72
WASHER COMPRESSED AIR LINE TO BRACKET
74
RUBBER BUFFER REAR LID STIFFENING
106
TYPE DESIGNATION ON REAR LID,ADHESIVE "300D"
109
TYPE DESIGNATION ON REAR LID,ADHESIVE "TURBO"
118
NUT REAR LICENSE PLATE
121
SCREW HOOK TO BRACKET
