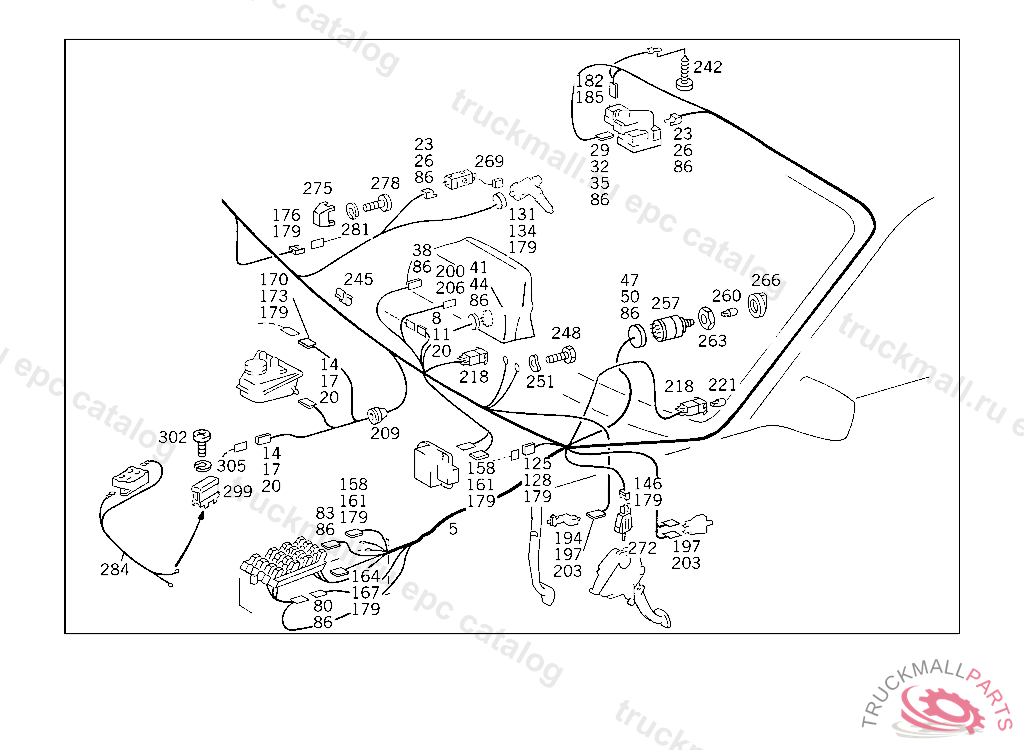

Поз.
Артикул
Описание
5
CABLE HARNESS (ADDIT. CABLE HARNESS) FOR AIR CONDITIONER,ONLY W/SUBSEQUENT INSTALLATION
5
ELECTRIC CABLE INBOARD,WITH AIR CONDITIONING AUTOMATICS,F 051968F 084207
5
ELECTRIC CABLE INBOARD, WITH HEATING AUTOMATICS
5
ELECTRIC CABLE INBOARD,WITH AIR CONDITIONING AUTOMATICS,F 084208
5
ELECTRIC CABLE INBOARD,WITH TEMPMATIK,F 051968F 084207
5
ELECTRIC CABLE INBOARD, WITH HEATING AUTOMATICS
5
CABLE HARNESS INBOARD,WITH TEMPMATIK
5
ELECTRIC CABLE INBOARD,WITH TEMPMATIK,F 084208
8
PIN BUSHING HOUSING UNIPOLAR, FROM CHASSIS:107.023 000429 107.043 006834 107.044 004104
11
COVERTO 011 545 10 28
14
PIN BUSHING HOUSING ELECTRIC CHANGE-OVER VALVE
17
COVERTO 008 545 08 28,008 545 09 28
20
ROUND PIN BUSHING4 MM2
23
PIN BUSHING HOUSING BIPOLAR
26
COVERTO 010 545 10 28
29
PIN BUSHING HOUSING MIRROR ADJUSTMENT SWITCH, 6-POLE
32
COVERTO 010 545 11 28
38
PIN BUSHING HOUSING CONTROL UNIT
41
PIN BUSHING HOUSING INSTRUMENT CLUSTER,15-POLE
44
COVERTO 010 545 04 28
47
PIN BUSHING HOUSINGTO 014 545 64 28
50
COVER LIGHT SWITCH
80
PIN BUSHING HOUSING RELAY CLUSTER
83
PIN BUSHING HOUSING LAMP CONTROL
86
ROUND PIN BUSHING2.5 MM2
125
PIN BUSHING HOUSING STEERING COLUMN MOUNTED CABLE HARNESS, 14-POLE
128
COVERTO 009 545 23 28
131
PIN BUSHING HOUSING IGNITION/STARTING SWITCH,7-POLE
134
COVERTO 009 545 73 28,
146
PIN BUSHING HOUSING BIPOLAR
158
PIN BUSHING HOUSING 4-POLE
161
COVER
164
PIN BUSHING HOUSING SEAT HEATER RELAY, 8-POLE
167
COVERTO 006 545 81 28
170
PIN BUSHING HOUSING 12-POLE
173
COVERTO 009 545 26 28
176
PIN BUSHING HOUSING REFRIGERANT COMPRESSOR
179
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
194
PIN BUSHING HOUSING PARKING BRAKE SWITCH
197
PIN BUSHING RADIO SET
200
CABLE SHOE CABLE HARNESS FOR ELECTRIC SEAT ADJUSTER
203
INSULATING SLEEVETO 000 546 43 40
206
INSULATING SLEEVETO 000 546 83 40
209
GROMMET
209
GROMMET FRONT BLINKER LAMP
218
SOCKET
218
SOCKET
221
BULB , Replaced By: N000000001061
221
BULB , Replaced By: A0008250094
221
BULB LIGHTING OF LEFT AND RIGHT OPERATING UNITS AND BLOWER SWITCH
242
SHEET METAL SCREW BRACKET TO CAB
245
CLIP WIRE CABLE TO AIR CLEANER
248
SCREW , Replaced By: N304017006016
248
SCREW PUMP TO BRACKET
251
SPRING WASHER LICENSE PLATE TO BRACKET
257
SWITCH , Replaced By: A0005456204, +001A1249902140
257
SWITCH (LIGHT SWITCH)
260
BULB , Replaced By: N000000001061
260
BULB , Replaced By: A0008250094
260
BULB LIGHTING OF LEFT AND RIGHT OPERATING UNITS AND BLOWER SWITCH
263
NUT WIRE CABLE TO INSTRUMENT PANEL
266
KNOB LIGHT ROTARY SWITCH
266
HANDLE , Replaced By: A2025450081
269
SWITCH WARNING BUZZER
272
SWITCH HAND BRAKE CONTROL
275
SOCKET-TERMINAL STRIP BIPOLE, TERMINAL 58D
278
SCREW , Replaced By: N000000001933
278
SCREW FUSE BOX TO SIDE MEMBER,5 097182
281
LOCK WASHER T-FITTING TO BRACKET
