Mercedes
CAR
300 D TURBODIESEL
124.133 TO 09/89
54 ELECTRICAL EQUIPMENT AND INSTRUMENTS

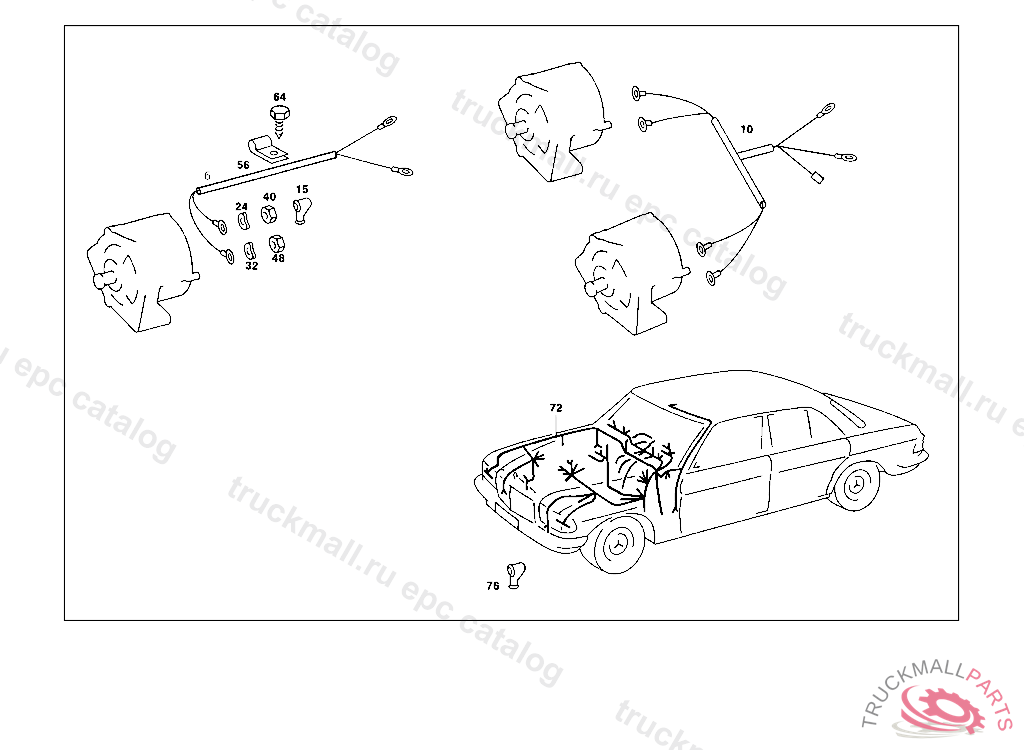

001 ELECTRICAL PARTS USED FOR ALTERNATOR (FOR TYPE 124, SEE STANDARD MICROFICHE)

Mercedes N916016012200 - ЗАЖИМ

300 D TURBODIESEL 124.133 TO 09/89

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 001 ELECTRICAL PARTS USED FOR ALTERNATOR (FOR TYPE 124, SEE STANDARD MICROFICHE)

Поз.
Артикул
Описание
6
A1265400408
CABLE HARNESS
6
A1265408510
CABLE HARNESS
10
A1265408508
CABLE HARNESS
15
A0005463335
BOOT HEATER PLUGS
24
N000137005203
SPRING WASHER ALTERNATOR CONNECTION D+
32
N000137008212
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
32
N000137008204
SPRING WASHER , Replaced By: N000137008212
40
N000934005008
NUT TACHOGRAPH TO BRACKET
48
N304032008006
NUT
48
N000934008010
NUT , Replaced By: N304032008006
56
N916016012200
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
64
N914128004303
SHEET METAL SCREW ALARM UNIT TO STRUT
64
N007976004217
SHEET METAL SCREW PRE-GLOW TIME RELAY TO STEERING COLUMN JACKET TUBE CONSOLE
72
A1235408806
CABLE HARNESS MAIN CABLE HARNESS
76
A0005463335
BOOT HEATER PLUGS
999
A0005467840
PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 4 MM2
999
A0005467940
PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2.5 MM2
999
A0055450228
PIN BUSHING HOUSING 3-POLE
