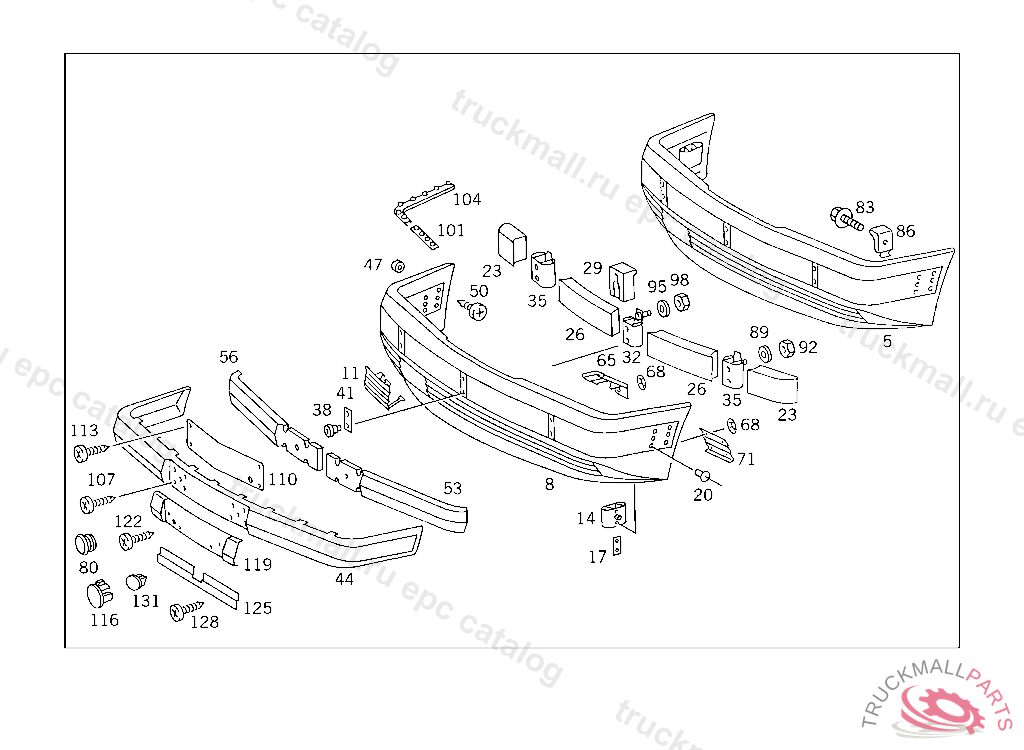

Поз.
Артикул
Описание
5
FRONT BUMPER FACE BAR WITH COVERING,OPEN VERSION
5
FRONT BUMPER FACE BAR , Replaced By: A1248801270
5
FRONT BUMPER FACE BAR , Replaced By: A1248802570
8
PANELLING FRONT BUMPER,OPEN VERSION
11
ESCUTCHEON TOWING BRACKET COVER FLAP
14
BRACKET ON BUMPER COVERING,LATERAL
17
PLATE ON BUMPER COVERING,LATERAL
20
RIVET BRACKET AND PLATE TO BUMPER COVERING
20
RIVET BRACKET AND PLATE TO BUMPER COVERING
23
ENERGY-ABSORBING UNIT FRONT INSIDE
26
ENERGY-ABSORBING UNIT FRONT INSIDE
29
ENERGY-ABSORBING UNIT FRONT CENTRAL INSIDE
32
BRACKET FRONT CENTRAL
35
BRACKET FRONT LEFT AND RIGHT
38
SCREW BRACKET AND ENERGY-ABSORBING UNIT TO BUMPER COVERING
41
PLATE BRACKET AND ENERGY-ABSORBING UNIT TO BUMPER COVERING
44
RAIL FRONT BUMPER
47
THREADED CHUCK PROTECTIVE RAIL TO PANELLING
50
SCREW , Replaced By: N000000000521
50
TAPPING SCREW CONTROL UNIT TO FIRE WALL
53
ENERGY-ABSORBING UNIT FRONT OUTSIDE LEFT
56
ENERGY-ABSORBING UNIT FRONT OUTSIDE RIGHT
65
INTERMEDIATE PIECE ON PANELLING,CONNECTION TO LEFT FRONT AIR BAFFLE,FOR ENGINE OIL COOLING
68
LOCK. CLIP LICENSE PLATE FLAP
71
BUMPER JOINT COVER BUMPER PANELLING,RIGHT
80
GROMMET TO LOCK TEMPERATURE SENSOR PASSAGE
83
SCREW BUMPER TO WHEELHOUSE ANGLE
86
ANGLE LATERAL BUMPER TO BODY
89
WASHER BUMPER TO CROSS MEMBER
89
WASHER , Replaced By: A2029903340
89
WASHER , Replaced By: A2029903440
92
NUT , Replaced By: N304032008006
92
NUT
95
WASHER
98
NUT BALL PIVOT TO LEVER
101
SEAL PANELLING BELOW LIGHTING UNIT
104
SEAL , Replaced By: A1248850985
104
SEAL , Replaced By: A1248851085
104
SEAL LEFT
104
SEAL RIGHT
107
SHEET METAL SCREW BRACKET TO FLOOR PLATE, Replaced By: N000000000460
107
SHEET METAL SCREW , Replaced By: N007981004233
107
SHEET METAL SCREW BRACKET TO FLOOR PLATE
110
BUMPER JOINT COVER
113
SCREW LICENSE PLATE TO BUMPER
116
PLUG LICENSE PLATE TO BUMPER
119
COVERING COVERING TO FRONT BUMPER
122
SCREW MOUNTING RAIL TO BUMPER
122
SCREW , Replaced By: A2029900021
122
SCREW , Replaced By: A2109900036
125
RAIL
128
SCREW LICENSE PLATE TO BUMPER
131
PLUG COVERING TO FRONT BUMPER
