Mercedes A1268210397 - Шланг

300 TD TURBODIESEL 124.193 200-300 9/89-10/92, 200D-300D 9/89-7/93

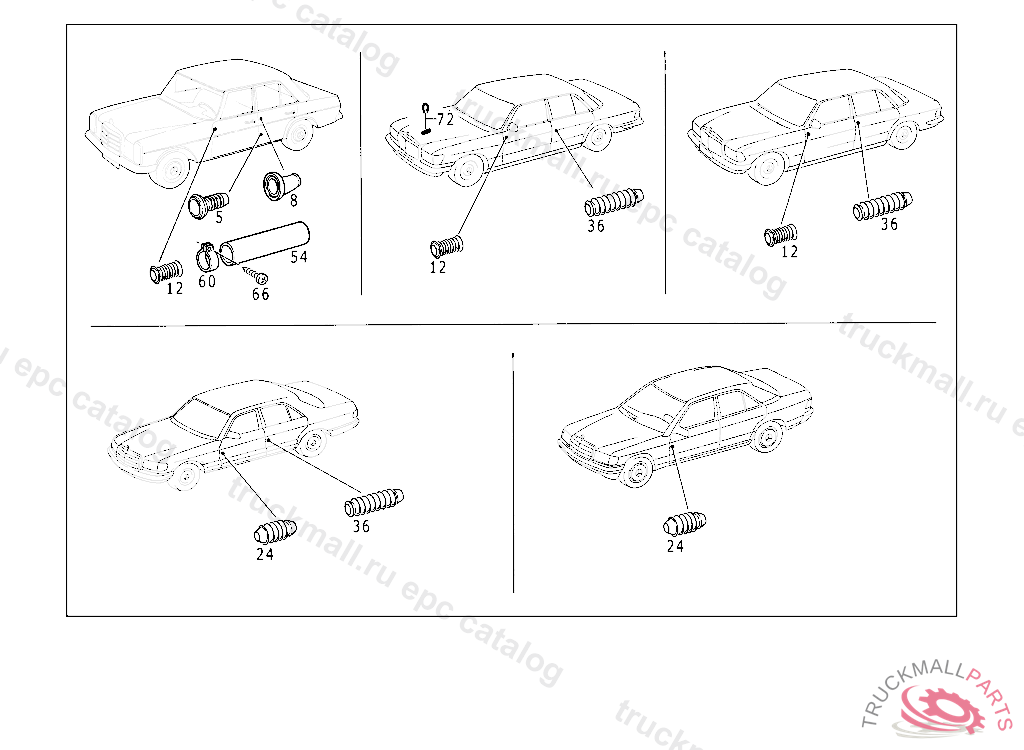

82 ELECTRICAL SYSTEM - 001 PROTECTIVE HOSES (TYPES 124,126,201 SEE STANDARD VERSION)

Поз.
Артикул
Описание
5
A1099970081
GROMMET CABLE PASSAGE THRU CENTRAL PILLARS
8
A1099970181
GROMMET (CABLE HARNESS THRU REAR DOOR)
12
A1078210097
HOSE LEFT AND RIGHT FRONT DOOR CABLE HARNESS
12
A1158210097
HOSE
24
A1268210397
HOSE FRONT-PANEL-PILLAR-TO-FRONT-DOOR-CABLE PROTECTIVE HOSE
36
A1168210097
HOSE CENTRAL-PILLAR-TO-REAR-DOOR-CABLE PROTECTIVE HOSE
36
A1238210697
HOSE CENTRAL-PILLAR-TO-REAR-DOOR-CABLE PROTECTIVE HOSE
54
A0009870527
PLASTIC PIPE FROM CENTRAL PILLAR TO REAR DOOR 500 MM, ORDER BY THE METER STATE COLOR NUMBER WHEN ORDERING
60
A1099950020
CLAMP , 107.023 UP TO CHASSIS 009336,107.024 UP TO006399,107.043 UP TO CHASSIS 011238,107.044 UP TO CHASSIS 018373,CONTINUED SEEFOOTNOTE 50
66
N000000000460
SHEET METAL SCREW BRACKET TO FLOOR PLATE
66
N007981004233
SHEET METAL SCREW BRACKET TO FLOOR PLATE, Replaced By: N000000000460
72
A0019877625
PLASTIC SECTION CABLE HARNESS TO ROOF RAIL
