Mercedes A6171870190 - ЗАЖИМ

300 D 4 MATIC 124.330 200-300 9/89-10/92, 200D-300D 9/89-7/93

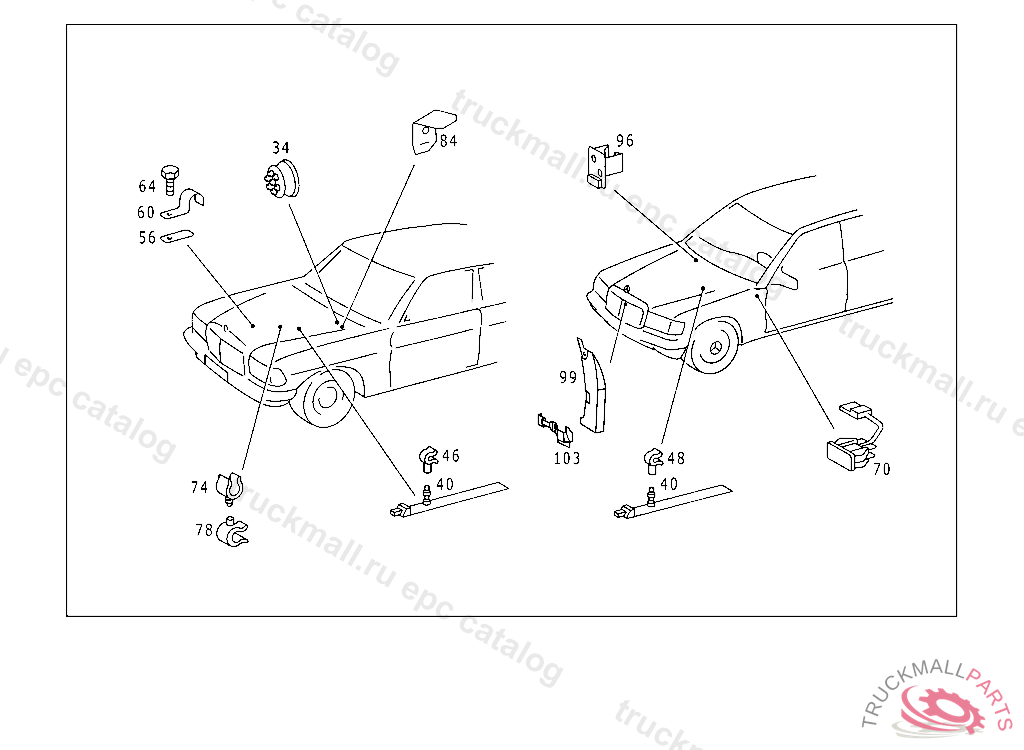

32 SPRINGS,SUSPENSION AND HYDRAULICS - 400 HYDRAULIC LINE MOUNTING PARTS

Поз.
Артикул
Описание
34
A1149970181
GROMMET
40
A0019974190
LOOM TIE , UP TO CHASSIS: 108.012 UNTIL PRODUCTION STOP 108.016 042417 108.018,019 043374 109.016 002452
46
A0009951765
CLAMP ELECTRIC CABLE TO BRAKE HOSE
48
A1239950065
CLAMP COMPRSSED AIR LINE TO SUBSTRUCTURE
56
A1148350314
BRACKET WIRE CABLE TO AIR CLEANER, TO BE ADAPTED DURING ASSEMBLY
60
A1239950920
CLAMP
64
A1159903101
SCREW , TO BE ADAPTED DURING ASSEMBLY
70
A0015465941
CABLE CONNECTOR FRONT PANEL PILLAR
74
A6171870190
CLAMP , Replaced By: A0005465143
78
A1109950165
CLAMP HOSE TO HOSE 20 MM
84
A1236870012
ANGLE AT FIRE WALL
96
A2018210033
CAP BLOWER SERIES RESISTOR
99
A1268891125
COVERING LEFT
103
A1268890625
COVERING RIGHT
