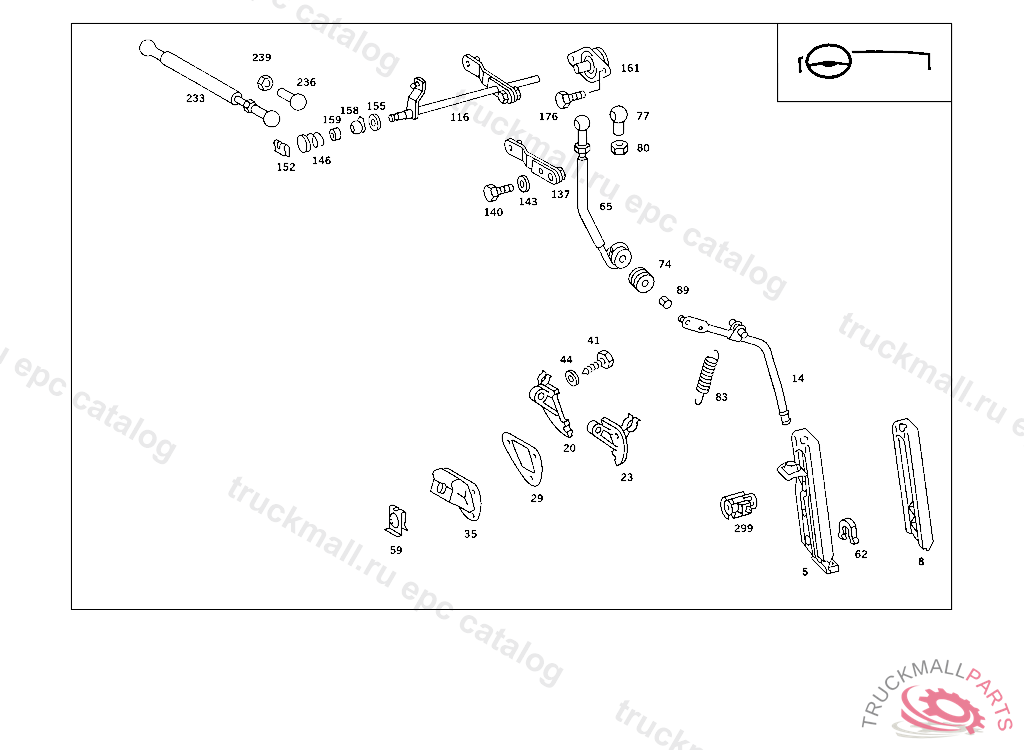

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL
8
PAD , 000 112328 003 056792 007 046654 083 000998 086 000712 093 000557 102,103 091560 105 115062 183 001323 190 001262
14
LEVER ACCELERATOR PEDAL
20
BEARING ACCELERATOR PEDAL
23
BEARING ACCELERATOR PEDAL
29
SHIM BEARING TO FIRE WALL
35
BOOT BEARING TO FIRE WALL
41
SHEET METAL SCREW RIGHT TOP ANTINOISE CAPSULE TO CAB B 6.3X25
44
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
44
WASHER COMPRESSED AIR LINE TO BRACKET
59
LOCK
59
LOCK , Replaced By: A0029945545
62
BRACKET , Replaced By: A1249888678
62
CLIP
65
ROD ACCELERATOR PEDAL TO BRACKET
74
RUBBER BUFFER
77
BALL SOCKETTO 102 070 09 75, Replaced By: A0009930461
77
BALL SOCKET , Replaced By: A0009918922
77
CONICAL CUPTO 102 070 09 75
80
NUT TACHOGRAPH TO BRACKET
83
SPRING
89
BUSHING BALL SOCKET TO ROD
116
SHAFT
137
LEVER (CONTROL LEVER)
140
SCREW COVER PLATE TO COVER PLATE M 6 X 12
140
SCREW , Replaced By: N304017006018
143
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
143
WASHER COMPRESSED AIR LINE TO BRACKET
146
SPRING CONTROL SHAFT
152
SCREW
152
CLIP , Replaced By: N000000002965
155
SPACER RING CONTROL SHAFT
158
JOINT BALL , Replaced By: A1263010485, +001A1163010150
158
RUBBER BUFFER
159
BUSHING
161
BRACKET
176
SCREW , Replaced By: N910106006000
176
SCREW
233
ROD
233
ROD
236
CONICAL CUPTO 102 070 09 75
236
BALL SOCKETTO 102 070 09 75, Replaced By: A0009930461
236
BALL SOCKET , Replaced By: A0009918922
239
NUT TACHOGRAPH TO BRACKET
299
SWITCH (KICK-DOWN SWITCH)
