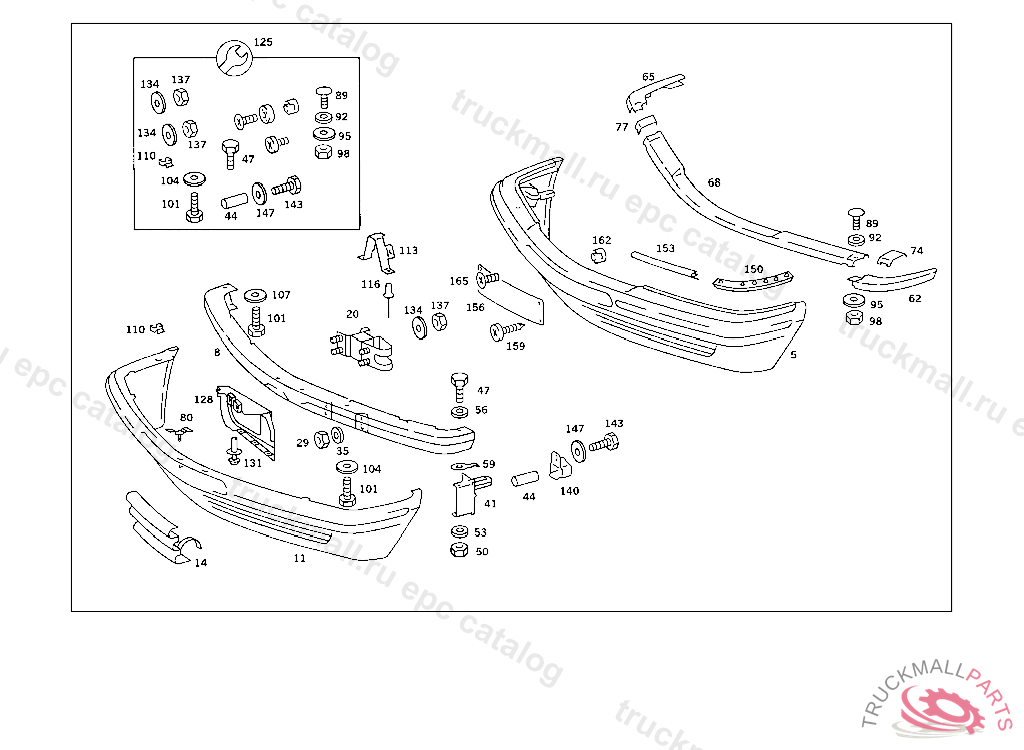

Поз.
Артикул
Описание
5
FRONT BUMPER FACE BAR WITH COVERING
5
FRONT BUMPER FACE BAR , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO.: A 485221, Replaced By: A1268802470
8
FRONT BUMPER FACE BAR LESS COVERING
11
PANELLING FRONT BUMPER
14
ESCUTCHEON RIGHT,TOWING BRACKET
20
BRACKET , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO.: A 485221 ONLY REPLACEABLE BY PAIRS, Replaced By: A1268804335
20
ENERGY-ABSORBING UNIT FRONT BUMPER
29
NUT SWITCH TO FLOOR PLATE
35
WASHER BRACKET TO LEFT SIDE MEMBER
35
WASHER , Replaced By: N009021008213
41
BRACKET FRONT OUTSIDE LEFT
41
BRACKET FRONT OUTSIDE RIGHT
44
HOSE OUTSIDE BRACKET TO FRONT BUMPER
47
SCREW OUTSIDE BRACKET TO FRONT BUMPER
50
NUT TACHOGRAPH TO BRACKET
53
WASHER , Replaced By: N009021008213
53
WASHER BRACKET TO LEFT SIDE MEMBER
56
WASHER STOP AND TAIL LIGHTS
59
WASHER OUTSIDE BRACKET TO FRONT BUMPER
62
FENDER SKIRT BUMPER PANELLING,LEFT
65
FENDER SKIRT BUMPER PANELLING,RIGHT
68
FENDER SKIRT BUMPER PANELLING,CENTRAL
74
BUMPER JOINT COVER ORNAMENTAL COVER JOINT,LEFT
77
BUMPER JOINT COVER ORNAMENTAL COVER JOINT,RIGHT
80
BRACKET ORNAMENTAL COVER TO BUMPER AND TO PANELLING
89
SCREW BRACKET TO FENDER,K 104588
92
WASHER LEFT AND RIGHT ORNAMENTAL COVERS TO CENTRAL ORNAMENTAL COVER
95
WASHER BRACKET TO LEFT SIDE MEMBER
95
WASHER , Replaced By: N009021008213
98
NUT , Replaced By: N304032008006
98
NUT
101
SCREW LEVER TO SHAFT
101
SCREW ORNAMENTAL COVER TO BUMPER AND TO PANELLING
101
SCREW , Replaced By: N304017005002
104
WASHER , Replaced By: N009021008213
104
WASHER BRACKET TO LEFT SIDE MEMBER
107
WASHER , 10/50,12/52,000,001,004,010 UP TO CHASSIS 099714,10/50,12/52,100,101,104,110 UP TO CHASSIS 210863,AND FOOTNOTE 4
110
LOCK ORNAMENTAL COVER TO BUMPER AND TO PANELLING
113
BRACKET FOGLAMP
116
CLINCH-BOLT BRACKET TO BUMPER
125
REPAIR KIT FRONT BUMPER MOUNTING MATERIAL
134
WASHER SUPPORT TO SIDE MEMBER,K 186867
134
WASHER , Replaced By: A2029903440
134
WASHER , Replaced By: A2029903340
134
WASHER BUMPER TO CROSS MEMBER
137
NUT , Replaced By: N304032008006
137
NUT BRACKET TO SUPPORT AND TO END PIECE
137
NUT
140
BRACKET FOR BUMPER BRACKET,OUTSIDE RIGHT
140
BRACKET FOR BUMPER BRACKET,OUTSIDE LEFT
143
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
143
SCREW , Replaced By: N304017008016
147
WASHER , Replaced By: N009021008213
147
WASHER BRACKET TO LEFT SIDE MEMBER
150
SEAL FRONT LEFT,BETWEEN BUMPER AND FENDER
150
SEAL FRONT RIGHT,BETWEEN BUMPER AND FENDER
153
SEAL PANELLING BELOW LIGHTING UNIT
156
PLATE FOR LICENSE PLATE
159
SCREW FOR LICENSE PLATE
162
LOCK FRONT LICENSE PLATE TO PLATE
165
SHEET METAL SCREW FRONT LICENSE PLATE TO PLATE
