Поз.
Артикул
Описание
10

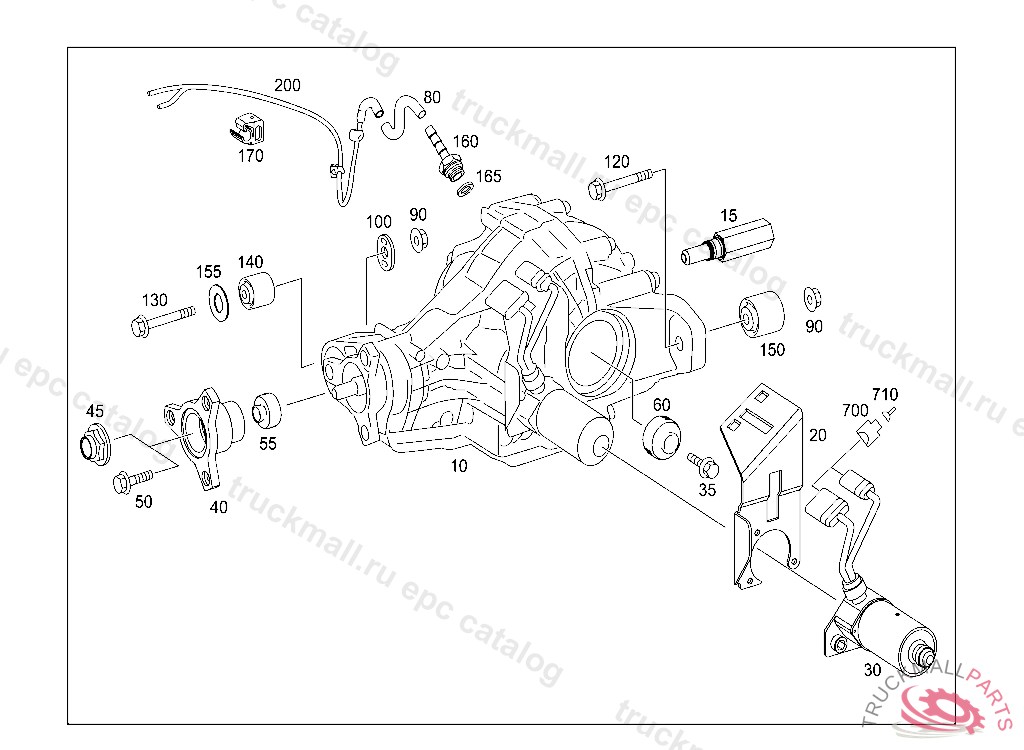

HOUSING REAR AXLE HOUSING WITH DIFFERENTIAL I3,70
10
HOUSING REAR AXLE HOUSING WITH DIFFERENTIAL I3,45
10
HOUSING REAR AXLE HOUSING WITH DIFFERENTIAL I3,45
15
CYLINDER AT HOUSING
20
BRACKET AT HOUSING
30
ELECTRIC MOTOR AT HOUSING
35
SCREW PLUG WITH SEAL RING
40
FLANGE
40
FLANGE
45
LOCKNUT FLANGE MOUNTING
50
CAP BOLT SOFT TOP FRAME AT CENTER AT FRAME M6X30
50
SCREW CONTROL SHAFT TO ENGINE
55
SHAFT SEAL INPUT SHAFT
55
SHAFT SEAL FRONT
60
SHAFT SEAL LEFT
60
SHAFT SEAL RIGHT
60
SHAFT SEAL LEFT
60
SHAFT SEAL LEFT
80
HOSE FROM ACTIVATED CHARCOAL FILTER TO REGENERATION VALVE,C 013142SIEHE KG 15
90
NUT BRACKET TO SIDE MEMBER M12X1.5
100
WASHER NUMBER OF NOTCHES: 2
120
HEXAGON HEAD BOLT TRANSMISSION TO SUBFRAME 12X110
130
HEXAGON HEAD BOLT TRANSVERSE CONTROL ARM LEFT TO BODY M12X1,5X95
130
HEXAGON HEAD BOLT. SCREW COOLING WATER LINE TO CYLINDER CRANKCASE
130
HEXAGON HEAD BOLT CAMBER STRUTS TO WHEEL CARRIER, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 14340920111128, Replaced By: N000000003864
140
BEARING REAR AXLE HOUSING WITH DIFFERENTIAL
150
BEARING REAR LEFT AND RIGHT
155
BEARING TRANSMISSION MOUNTING
160
FITTING BREATHER LINE
165
SEAL RINGTO 001 431 72 14
170
CLAMP LINES UNDER REAR SEAT FLOOR, A 360313 F 340137
200
BREATHER BREATHER LINE
700
PIN BUSHING HOUSING ENGINE COMPARTMENT/ENGINE CONNECTOR 2-PIN SLK2.8,X26/31
700
PLUG HOUSING CONNECTOR, PARKTRONIC, FRONT BUMPER 8-PIN MLK1.2, A 97500020070630 E 02900020071206808
710
GASKET4.0 MM2
710
GASKETTO 001 540 99 81
710
CONTACT SPRING OXYGEN SENSOR 0.75-1.0 MM2 MLK1.2,G3/1
710
FEMALE CONTACT OXYGEN SENSOR 0.22-0.5 MM2 MLK1.2,G3/1
