Mercedes A1409900014 - Болт

S 430 4MATIC 220.183

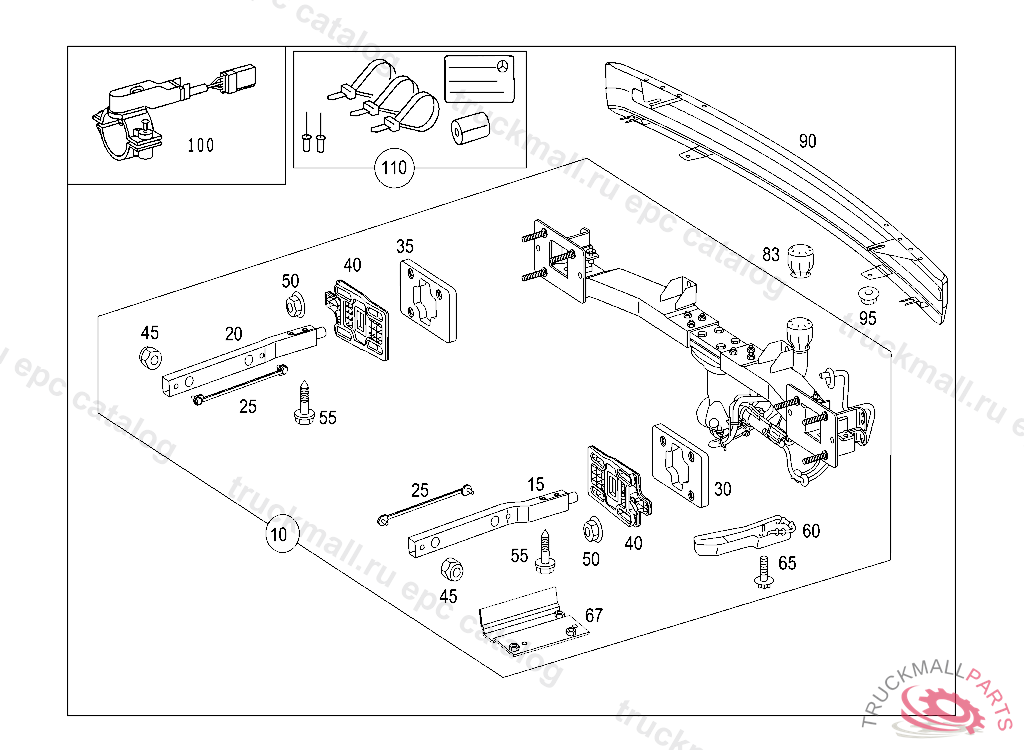

31 HITCHING MECHANISM - 015 TRAILER COUPLING

Поз.
Артикул
Описание
10
A2203100195
HITCH MECHAN. DELY. RANGE WITH PIVOTING BALL HEAD
15
A2206102325
REINFORCEMENT LEFT SIDE MEMBER
20
A2206102425
REINFORCEMENT RIGHT SIDE MEMBER
25
A2206100111
PLATE AT SIDE MEMBER,REAR
30
A2206180111
PLATE LEFT
35
A2206180211
PLATE RIGHT
40
A2206101126
KEY LEFT AND RIGHT
40
A2206100326
KEY
45
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
50
N910104010001
NUT-AND-WASHER ASSEMBLY REINFORCEMENT TO SIDE MEMBER M10, A 97499920070630809 E 06000020080901809
55
A1409900014
SCREW
60
A2203100073
LEVERTO A 220 310 01 95
65
N910143006005
HEXALOBULAR BOLT. SCREW CLAMP ON BRACKET M 6X35
67
A2206301431
CONSOLE
83
A0003150929
CAP
90
A2206102625
CROSS MEMBER
95
N000000006038
NUT-AND-WASHER ASSEMBLY RUBBER MOUNTING TO FRAME M8
100
A2208213051
SWITCH TRAILER COUPLING, MECHANICALLY HINGED
110
A0003150097
BOOT PARTS KIT
