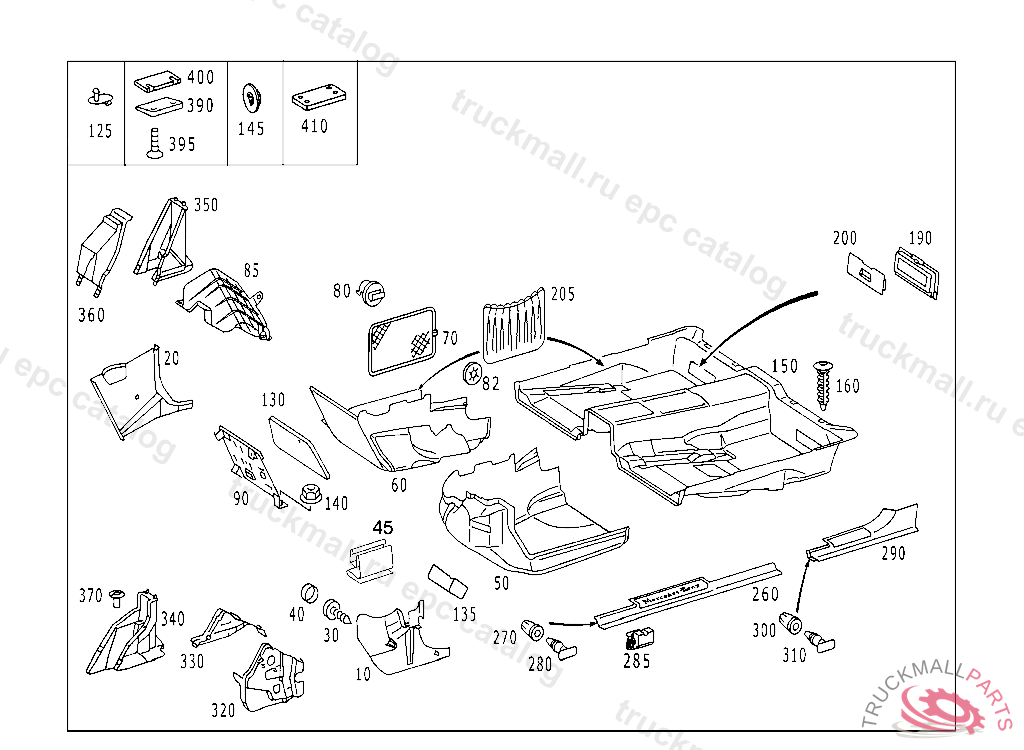

Поз.
Артикул
Описание
10
PANELING FRONT PANEL, LATERAL LEFT
10
PANELING FRONT PANEL, LATERAL LEFT
10
PANELING FRONT PANEL, LATERAL LEFT
10
PANELING FRONT PANEL, LATERAL LEFT
10
PANELING FRONT PANEL, LATERAL LEFT
20
PANELING FRONT PANEL,LATERAL RIGHT
20
PANELING FRONT PANEL,LATERAL RIGHT
20
PANELING FRONT PANEL,LATERAL RIGHT
20
PANELING FRONT PANEL,LATERAL RIGHT
30
BOLT PANELLING TO FRONT PANEL PILLAR 4.8X48
30
SCREW PANELLING TO FRONT PANEL
40
COVERING PANELLING TO FRONT PANEL,NO.9051I NO.5076I NO.8316I NO.8F20I NO.8F30I NO.6122I NO.3112I NO.7101I NO.9051I NO.8F30I NO.7101I
45
SPRING PANELLING TO CENTRAL PILLAR
45
SPRING PANELLING TO FRONT PANEL PILLAR, J 56858920010301802
45
SPRING PANELLING TO CENTRAL PILLAR
50
LINING FRONT FLOOR,LEFT
50
LINING FRONT FLOOR,LEFT
50
LINING FRONT FLOOR,LEFT
60
LINING DRIVER FLOOR, RIGHT
60
LINING DRIVER FLOOR, RIGHT
60
LINING DRIVER FLOOR, RIGHT
70
LUGGAGE NET
80
BRACKET FOR LUGGAGE NET, 9051QFT246A0370 BLACK
82
RETAINING RING STEP PLATE
85
FOOTREST DRIVER'S SIDE
90
STAY ON FIRE WALL BELOW FRONT FLOOR LINING, RIGHT
90
STAY ON FIRE WALL BELOW FRONT FLOOR LINING, LEFT
90
STAY CO-DRIVER'S LEGROOM
125
CATCH CARPET INSERT FASTENING
130
PAD BRACKET TO FRONT FLOOR
130
PAD BRACKET TO FRONT FLOOR
135
PAD ACCELERATOR PEDAL, AT FRONT FLOOR
135
PAD ACCELERATOR PEDAL
140
NUT COVERING TO CAB FIRE WALL
145
FASTENER BUTTON INSULATION TO PARTITION PANEL,RIGHT
150
LINING REAR FLOOR, WITH AIR CONDITIONER IN THE REAR
150
LINING REAR FLOOR, LESS AIR CONDITIONER IN THE REAR
160
STOP PLUG REAR TOP
190
FRAME ON CROSSMEMBER BELOW RIGHT AND LEFT REAR SEAT
200
COVER ON CROSSMEMBER BELOW RIGHT AND LEFT REAR SEAT
205
POCKET ,NO.9A84I NO.5A98I .......I NO.8F19I NO.8F33I .......I .......I NO.7C12I I
260
RAIL AS DOOR ENTRANCE SURROUND,FRONT RIGHT
260
RAIL AS DOOR ENTRANCE SURROUND,FRONT LEFT
260
RAIL AS DOOR ENTRANCE SURROUND,FRONT RIGHT
260
RAIL AS DOOR ENTRANCE SURROUND,FRONT LEFT
270
GROMMET CARRIER TO SIDE WALL
280
PUSH BUTTON RIGHT FRONT UPPER PART
285
CLIP LEFT AND RIGHT
290
RAIL AS DOOR ENTRANCE,SURROUND,REAR LEFT
290
RAIL AS DOOR ENTRANCE,SURROUND,REAR RIGHT
290
RAIL AS DOOR ENTRANCE,SURROUND,REAR RIGHT
290
RAIL AS DOOR ENTRANCE,SURROUND,REAR LEFT
300
GROMMET CARRIER TO SIDE WALL
310
PUSH BUTTON RIGHT FRONT UPPER PART
320
COVER FOOT OPERATED PARKING BRAKE, OUTSIDE
320
COVER FOOT OPERATED PARKING BRAKE, INSIDE
330
COVER FOOT OPERATED PARKING BRAKE, INSIDE
330
COVER FOOT OPERATED PARKING BRAKE, INSIDE
340
COVER BRAKE PEDAL
350
COVER BRAKE PEDAL
360
COVER BRAKE PEDAL
370
FASTENER BUTTON FIRE WALL BRACING TO SUPPORT, F 241918 C 000001
390
PLATE DOOR
395
SCREW SWITCH TO INSTRUMENT PANEL
395
SCREW MOUNTING PARTS,B 603276
400
PLATE RIGHT FRONT DOOR
410
DETENT RIGHT REAR DOOR, A 26505420020930802
