Mercedes A0039900422 - Болт

S 430 4MATIC 220.183

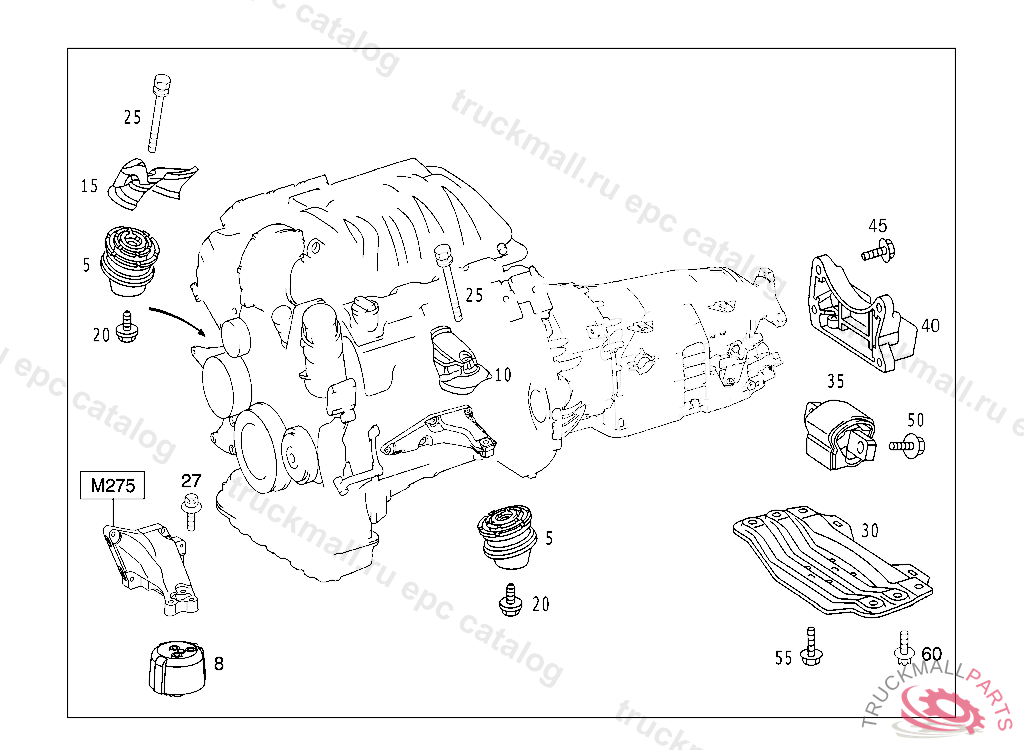

24 ENGINE SUSPENSION - 015 ENGINE SUSPENSION IL. 1

Поз.
Артикул
Описание
5
A2202403017
RUBBER MOUNT FRONT RIGHT
10
A2202410134
SCREENING PLATE LEFT
15
A2202400145
SCREENING PLATE RIGHT
20
A2029902201
BOLT FRONT ENGINE MOUNT ON FRAME-TYPE INTEGRAL SUPPORT M8X21
25
N304017010051
SCREW
25
N914007010066
COMBINATION BOLT. SCREW-AND-WASHER ASSEMBLY ENGINE FRONT RIGHT MOUNTING M10X60, Replaced By: N304017010051, +001N000000003260
50
N000000000428
HEXAGON HEAD BOLT BRACKET TO BRACKET M10X35
60
A2109900312
BOLT ENGINE SUPPORT TO FRAME M10X25
60
A0039900422
BOLT ENGINE REAR SUPPORT TO FRAME
