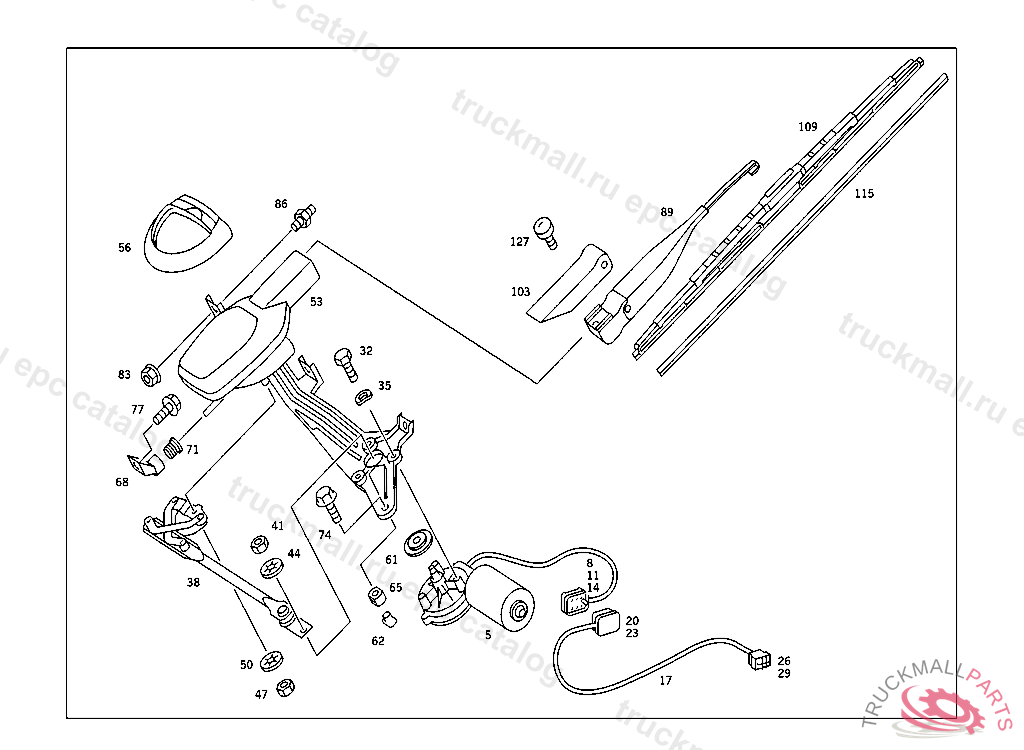

Поз.
Артикул
Описание
5
ELECTRIC MOTOR PANE WIPER BOSCH
5
ELECTRIC MOTOR PANE WIPER BOSCH
5
ELECTRIC MOTOR PANE WIPER SWF
5
ELECTRIC MOTOR , Replaced By: A2018206142
8
PLUG HOUSING
11
COVER
14
PLUG PIN ADDITIONAL CABLE TO SERIES CABLE
17
CABLE HARNESS FROM WIPER MOTOR PLUG-CONNECTION TO CENTRAL ELECTRICAL SYSTEM
20
PIN BUSHING HOUSING HEADLAMP,WIPER MOTOR,BLOWER SWITCH
23
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
26
PIN BUSHING HOUSING , Replaced By: A0095450528
29
ROUND PIN BUSHING LIGHT SWITCH
32
SCREW COVER PLATE TO BRACKET
35
SPRING WASHER LICENSE PLATE TO BRACKET
38
LINKAGE PANE WIPER LINKAGE SWF
38
LINKAGE PANE WIPER LINKAGE BOSCH
38
LINKAGE PANE WIPER LINKAGE BOSCH
41
NUT BRACKET TO PARTITION PANEL,1.9.89 B 065822 F 122353
44
TOOTHED WASHER LEVER TO AIR SPRING VALVE,K 186867
47
NUT BRACKET TO SUPPORT AND TO END PIECE
50
TOOTHED WASHER BRACKET TO EXHAUST PIPE BRACKET
53
GEARING , Replaced By: A2018200707, +001A2018205444
53
GEARINGBOSCH
53
GEARINGBOSCH, A 612173 F 815943NO.9123
56
SEAL NOT FOR USE WITH AIR CONDITIONER
61
CAP WIPER SYSTEM MOUNTING PLATE TO FRONT PANEL CENTER
62
SLEEVE WIPER SYSTEM MOUNTING PLATE TO PEDAL ASSEMBLY BRACKET
65
GROMMET WIPER SYSTEM MOUNTING PLATE TO PEDAL ASSEMBLY BRACKET
68
BRACKET WIPER SYSTEM MOUNTING PLATE TO PARTITION PANEL CENTER
71
GROMMET WIPER SYSTEM MOUNTING PLATE TO PARTITION PANEL CENTER
74
SCREW ALARM UNIT TO WHEELHOUSE
77
COMBINATION BOLT
83
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
83
NUT , Replaced By: N910112006001
83
NUT , Replaced By: N913023006001
86
BUFFER OIL TANK
89
WIPER ARMBOSCH, A 390765 F 391628
89
WIPER ARMSWF,NO.9123
89
WIPER ARM , Replaced By: A2018205444, +001A2018201145, +001A1248240349
89
WIPER ARM , Replaced By: A2018205244, +001A2018201045, +001A1248240349
103
CAP , Replaced By: A1248240349
103
CAPSWF,F 050188
103
CAP ,F 171150 NO.7126
109
WIPER BLADE , TO BE ADAPTED DURING ASSEMBLY
109
WIPER BLADE , Replaced By: A2018201145
109
WIPER BLADE , Replaced By: A2018201145
109
WIPER BLADE , Replaced By: A2018200645
109
WIPER BLADE , Replaced By: A2018200745
109
WIPER BLADE , Replaced By: A2018201045
115
WIPER RUBBER , Replaced By: A0008246027
115
WIPER RUBBER
115
WIPER RUBBER
127
SCREW WIPER ARM TO WIPER ROD
999
PLUG , Replaced By: A0065457828, +006A0015453826, +001A0095453028
999
LINKAGE , Replaced By: A2018201241
999
WIPER ARM , Replaced By: A2018204044
999
WIPER ARM , Replaced By: A2018205444, +001A2018201145, +001A1248240349
999
PLUG , Replaced By: A0035457128
999
WIPER ARM , Replaced By: A2018204244
999
WIPER ARM , Replaced By: A2018203844
