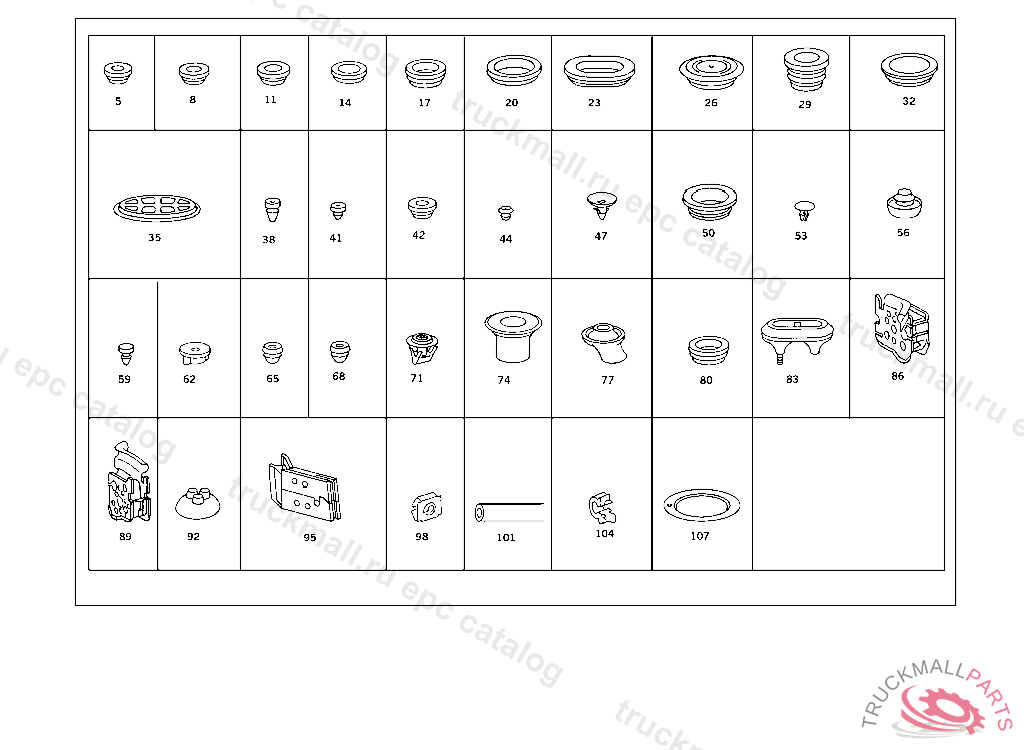

Поз.
Артикул
Описание
5
EXPANSION PLUG WHEELHOUSES, REAR FENDERS
8
EXPANSION PLUG IN FLOOR,FRONT
11
EXPANSION PLUG IN FRONT PANEL PILLAR,OUTSIDE, FOR SLIDING ROOF HOSE
14
EXPANSION PLUG ELECTRIC CABLE THRU FIRE WALL,4 9400475 187082
17
EXPANSION PLUG ANTENNA CABLE IN FRONT PANEL PILLAR
20
EXPANSION PLUG PAINT RUN-OFF IN FLOOR,LATERAL
20
EXPANSION PLUG IN FLOOR BELOW REAR SEAT BENCH
23
EXPANSION PLUG REAR SIDE MEMBER
26
EXPANSION PLUG FRONT AND REAR SIDE MEMBER COVERINGS D32,5 MM
29
EXPANSION PLUG STEERING INTERMEDIATE ARM PIVOT BEARING
32
EXPANSION PLUG
35
EXPANSION PLUG TO PLUG OVAL HOLES USED FOR CENTRAL LOCKING MECHANISM & WINDOW REGULATOR
38
RUBBER BUFFER TO PLUG THE MOUNTING HOLE USED FOR GROUND CONNECTION IN CASE OF R.H.D.
41
PLUG REAR PANEL,RIGHT
42
EXPANSION PLUG LATERAL REAR BUMPER TO BODY D10 MM, 083 000576 086 000341 093 000251 183 000754 190 000649
44
PLUG TO PLUG THE BORES
50
PLUG REAR CROSS MEMBER
50
PLUG SAFETY HOOK
53
LOCK. CLIP-TYPE NUT
56
PLUG TAKE-UP DEVICE TO FLOOR
62
RUBBER BUFFER FILLER NECK FLAP HOLE,ON VEHICLES EQUIPPED WITH CENTRAL LOCKING MECHAN.
65
RUBBER BUFFER BRACKET AT BOX
68
EXPANSION PLUG TO PLUG THE MOUNTING HOLE USED FOR GROUND CONNECTION IN CASE OF R.H.D.
68
RUBBER BUFFER TO PLUG THE FREE CONNECTIONS
71
TREENAIL , Replaced By: A6739880025
71
TREENAIL BRACKET TO WINDOW SILL
74
GROMMET
77
GROMMET MAIN FLOOR
80
EXPANSION PLUG VENTILATION BORE IN WHEELHOUSE, ONLY FOR REPAIR PURPOSES
83
GROMMET RIGHT FRONT CONSOLE
86
GROMMET PARTITION PANEL
89
GROMMET PARTITION PANEL
92
GROMMET
95
GROMMET PARTITION PANEL,RIGHT
98
GROMMET
98
GROMMET , Replaced By: A0089971781
101
HOSE TANK FILLER NECK DRAIN PIPE 750 MM
104
CLAMP
107
COVER FOR PAINT RUN-OFF HOLE IN SPARE WHEEL WELL
999
GROMMET , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A2019974181
999
HOSE , Replaced By: A1406390094
