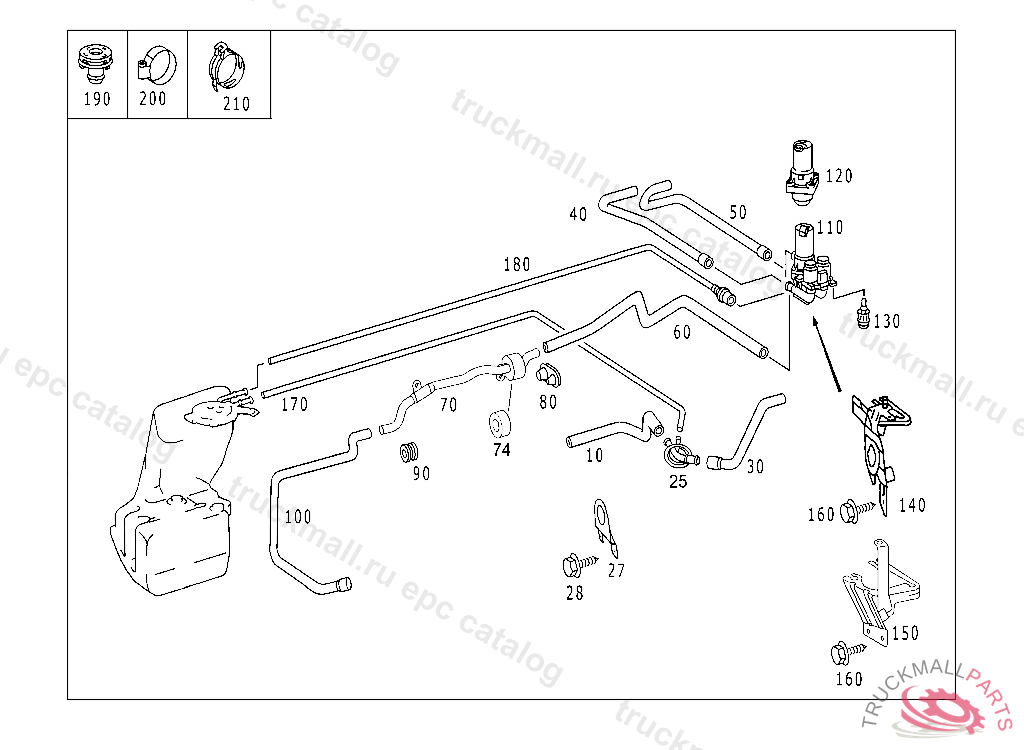

Поз.
Артикул
Описание
10
HOSE FROM ENGINE TO CONNECTING TUBE
25
PIPELINE FEED THRU PARTITION PANEL
25
PIPELINE FEED THRU PARTITION PANEL
27
BRACKET PIPE LINE TO PARTITION PANEL
28
COMBINATION BOLT MOUNTING PARTS
30
HOSE FROM CONNECTING TUBE TO HEAT EXCHANGER
30
HOSE FROM CONNECTING TUBE TO HEAT EXCHANGER
30
HOSE FROM CONNECTING TUBE TO HEAT EXCHANGER
40
HOSE HEAT EXCHANGER RETURN TO TOP LEFT WATER VALVE
40
HOSE HEAT EXCHANGER RETURN TO TOP LEFT WATER VALVE
50
HOSE HEAT EXCHANGER RETURN TO BOTTOM RIGHT WATER VALVE
50
HOSE HEAT EXCHANGER RETURN TO BOTTOM RIGHT WATER VALVE
60
HOSE ELECTROMAGNETIC WATER VALVE HOSE ON ADAPTOR
60
HOSE ELECTROMAGNETIC WATER VALVE HOSE ON ADAPTOR
70
PIPELINE ELECTROMAGNETIC WATER VALVE HOSE ON ADAPTOR
80
GROMMET TO SPRING TOWER FOR RETURN LINE
90
GROMMET LINE PASSAGE AT SIDE MEMBER 24 MM,5 473494
100
HOSE RETURN LINE TO ENGINE
110
VALVE (ELECTRO-MAGNETIC WITH CIRCULATION PUM
120
CIRCULATION PUMP
130
RUBBER BUFFER BETWEEN BRACKET AND DOUBLE WATER VALVE
140
BRACKET TIMING VALVE
150
BRACKET TIMING VALVE
160
COMBINATION BOLT MOUNTING PARTS
170
HOSE FLOW PIPE, WINDOW WASHER HEATING
180
HOSE RECIRCULATION, WINDOW WASHER HEATING
180
HOSE RECIRCULATION, WINDOW WASHER HEATING
190
CATCH RETURN
200
CLAMP HOSE FASTENING 28-35 MM,V 207570
200
LOOM TIE HOSE TO RADIATOR AND TO EXPANSION TANK
200
HOSE CLAMP LINE MOUNTING
200
CLAMP25-40X13 MM
200
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
200
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
210
LOOM TIE , F 155735 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO F 155734 WITH CODE 808
210
CLAMP25 MM
210
CLAMP. LOOM TIE
210
CLAMP. LOOM TIE
210
CLAMP27-30 MM
210
CLAMP POWER STEERING PUMP TO OIL TANK, FROM MODEL YEAR 2000CODE 800
210
CLAMP HOSE TO HEAT EXCHANGER 23-26 MM
210
CLAMP ADVANCE ENGINE 27-30 MM
