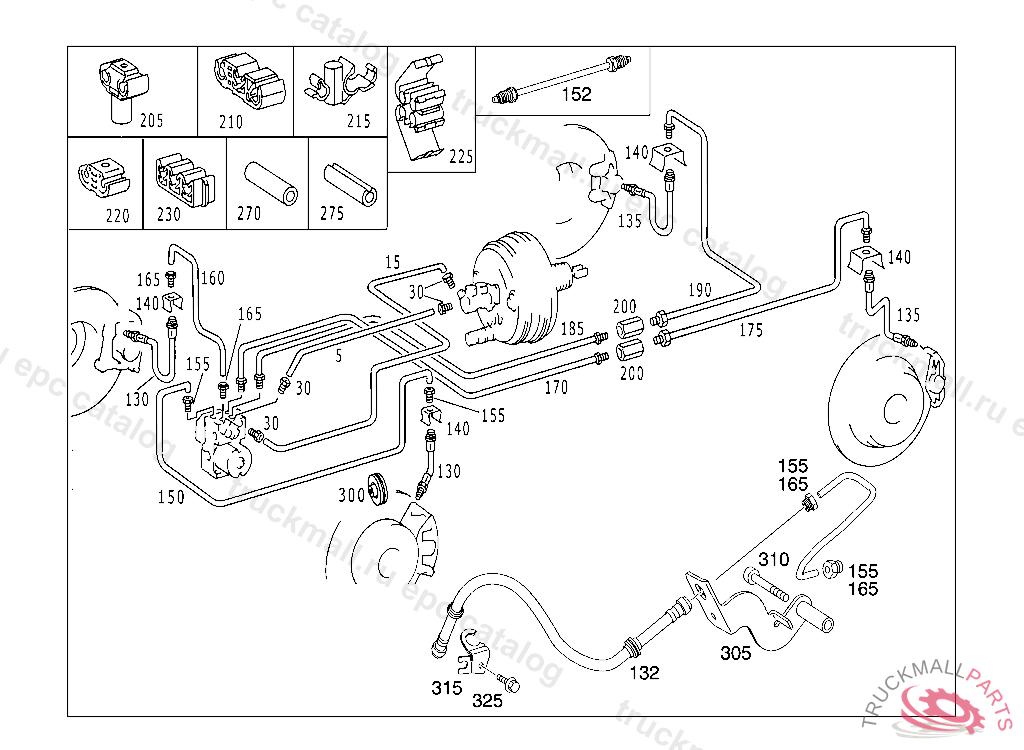

Поз.
Артикул
Описание
5
LINE FROM TEST CONNECTION TO RIGHT FRONT WHEEL BRAKE HOSE
5
LINE FROM TEST CONNECTION TO BRAKE POWER REGULATOR,CONNECTION "1",4 478495
15
LINE FROM TEST CONNECTION TO RIGHT FRONT WHEEL BRAKE HOSE
15
LINE FROM DISTRIBUTOR TO BRAKE HOSE ON REAR AXLE 1100 MM
30
SCREW. RETAINING SCREW
132
BRAKE HOSE FRONT
135
BRAKE HOSE REAR, A 02427920020930802
140
RETAINING SPRING BRAKE HOSE TO BRACKET
150
LINE FROM DISTRIBUTOR TO REAR RIGHT BRAKE HOSE
152
LINE FROM DISTRIBUTOR TO REAR LEFT BRAKE HOSE, FROM CHASSIS: 005,007,008,015,017 154396 011 022325 060 018681 062 013421
155
RETAINING SCREW. NUT
155
RETAINING SCREW DIA., 4,95 , M 12, A 394036 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO A 394035 WITH CODE 808
155
RETAINING SCREWM10X1
160
LINE FROM PRESSURE RETAINING VALVE TO LEFT REAR BRAKE HOSE 2655 MM
165
RETAINING SCREW. NUT
165
RETAINING SCREWM10X1
170
LINE FROM MASTER CYLINDER TO REAR BRAKE PRESSURE REGULATOR
175
LINE FROM ADAPTER FITTING TO BRAKE HOSE, REAR LEFT
185
LINE FROM MASTER CYLINDER TO REAR BRAKE PRESSURE REGULATOR
190
LINE FROM ADAPTER FITTING TO DISTRIBUTOR
190
LINE FROM VALVE TO LEFT REAR WHEEL 3560 MM
200
ADAPTER FITTING BETWEEN THE LINES
205
BRACKET BRAKE LINE TO FIRE WALL
210
BRACKET BRAKE LINE TO LEFT FRONT SIDE MEMBER
215
BRACKET WINDSHIELD WASHER PIPE LINE AND BRAKE LINE TO PARTITION PANEL
220
BRACKET BRAKE LINE TO FIRE WALL
220
CLAMP FRONT CROSS MEMBER
225
CLAMP
230
BRACKET FASTENING, BRAKE LINES UNDER HYDRAULICUNIT
270
HOSE4.5X10X900MM
275
HOSE4.5X10X900MM
275
HOSE LEAK LINE, ORDER BY THE METER
275
RUBBER PAD , Replaced By: A1263280181
300
GROMMET
305
BRACKET BRAKE HOSE CLAMP, RIGHT
305
BRACKET BRAKE HOSE CLAMP, LEFT
310
SCREWM 8X60
315
BRACKET RIGHT FRONT SUSPENSION STRUT
315
BRACKET LEFT FRONT SUSPENSION STRUT
325
HEXAGON HEAD BOLT LINE MOUNTING M6X10
