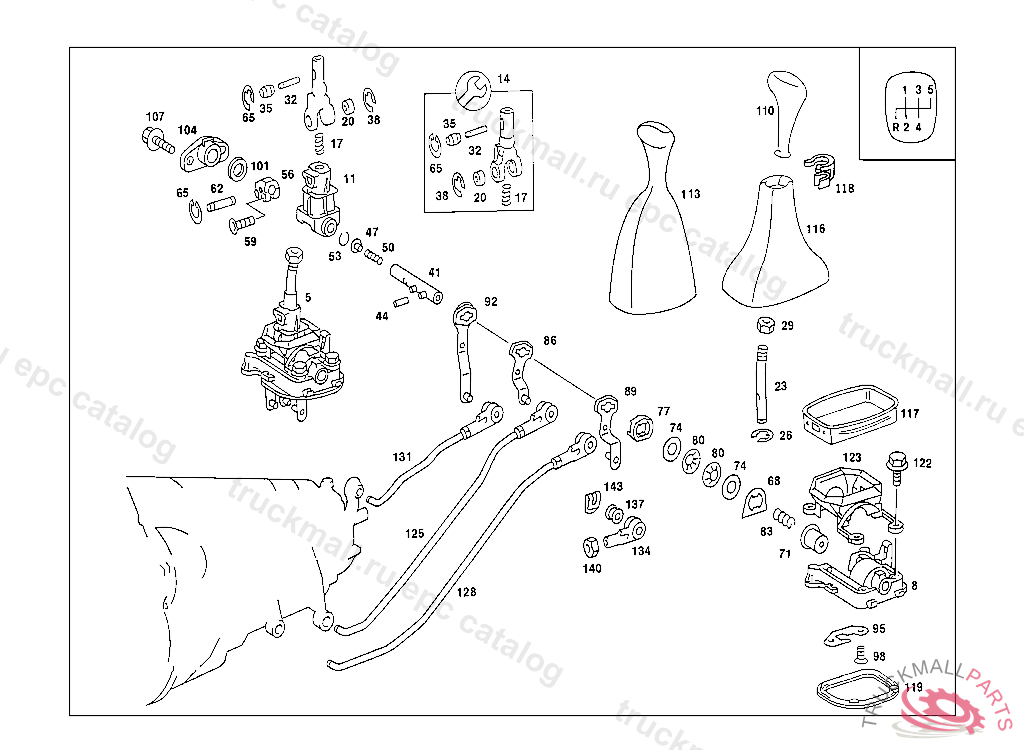

Поз.
Артикул
Описание
5
FLOOR SHIFT MECHANISM FOUR-GATE SHIFT, FROM 1.88 FOUR-GATE SHIFT A 427031 F 453773
8
BEARING BRACKET ,B 236460
11
SUPPORT
11
BRACKET , Replaced By: A2022670161
11
BRACKET , Replaced By: A1242671140
11
BRACKET , Replaced By: A1242670540
14
REPAIR KIT SHIFT LEVER
17
SPRING SHIFT LEVER
20
BUSHING
20
BUSHING , Replaced By: A1402670450
23
SHIFT LEVER
26
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
29
NUT
32
PIN
35
BUSHING
38
LOCK PLATE
41
SHIFTING TUBE FOUR-GATE SHIFT, 124.0,124.1 : F 063053 124.2,124.3 : F 079077
44
PIN
47
WASHER SHIFTING TUBE
50
SPRING SHIFTING TUBE
50
SPRING , Replaced By: A1249932101
53
SNAP RING SHIFTING TUBE
56
STOP
59
SCREW
62
PIN
65
LOCK
68
WASHER , 124.0,124.1 : F 063053 124.2,124.3 : F 079077
71
BUSHING , 124.0,124.1 : F 063053 124.2,124.3 : F 079077
74
SPACER WASHER , 124.0,124.1 : F 063053 124.2,124.3 : F 079077
77
WASHER , 124.0,124.1 : F 063053 124.2,124.3 : F 079077
80
DISC SPRING
83
SPRING , Replaced By: A2019936101
83
SPRING , 124.0,124.1 : F 063053 124.2,124.3 : F 079077
86
LEVER 1ST AND 2ND SPEED, 124.0,124.1 : F 063053 124.2,124.3 : F 079077
89
LEVER 3RD AND 4TH SPEED, 124.0,124.1 : F 063053 124.2,124.3 : F 079077
92
LEVER 5TH SPEED AND REVERSE
95
SLOTTED GATE
95
SLOTTED GATE , Replaced By: A2022670947
95
SLOTTED GATE , Replaced By: A2022670347
95
SLOTTED GATE , Replaced By: A1242670947
98
SCREW
101
FITTED WASHER MAIN PRESSURE VALVE
104
BEARING
104
BEARING , Replaced By: A2022670005
107
SCREW , Replaced By: N910106006000, +001N000125006421
107
SCREW
110
HANDLE ,F 188132
113
HANDLE
113
GEARSHIFT LEVER GEARSHIFT LEVER WITH LEATHER COVER, USED WITH SPORTLINE
113
HANDLE GEARSHIFT LEVER WITH LEATHER COVER, FROM 1.88 FOUR-GATE SHIFT A 427031 F 453773
113
HANDLE , Replaced By: A2012601040
116
BOOT
119
GASKET BEARING BRACKET TO TUNNEL
122
SCREW BEARING BRACKET TO TUNNEL
123
COVERING
125
SHIFTING ROD 1ST AND 2ND SPEED, FROM 1.88 FOUR-GATE SHIFT A 427031 F 453773
125
ROD 1ST AND 2ND SPEED, A 622702, F 824625
128
SHIFTING ROD 3RD AND 4TH SPEED
131
SHIFTING ROD 5TH SPEED AND REVERSE
134
END PIECE
137
BUSHING FROM LEVER TO VALVE BODY ASSEMBLY
137
BUSHING
140
NUT
143
LOCK
999
DISC SPRING , Replaced By: A1299930126
999
BUSHING , Replaced By: A1292670050
999
SPACER WASHER , Replaced By: A1292670052
999
STOP , Replaced By: A1242670241
999
WASHER , Replaced By: A1292670376
999
STOP , Replaced By: A1242670241
999
LEVER , Replaced By: A1242607137
999
BEARING BRACKET , Replaced By: A1242601394
999
BEARING BRACKET ,B 236459, Replaced By: A1242601294, +001A1242607137, +002A1299930126
