Mercedes
CAR
190 E JAPAN
201.024 TO 09/88
80 VACUUM SYSTEM

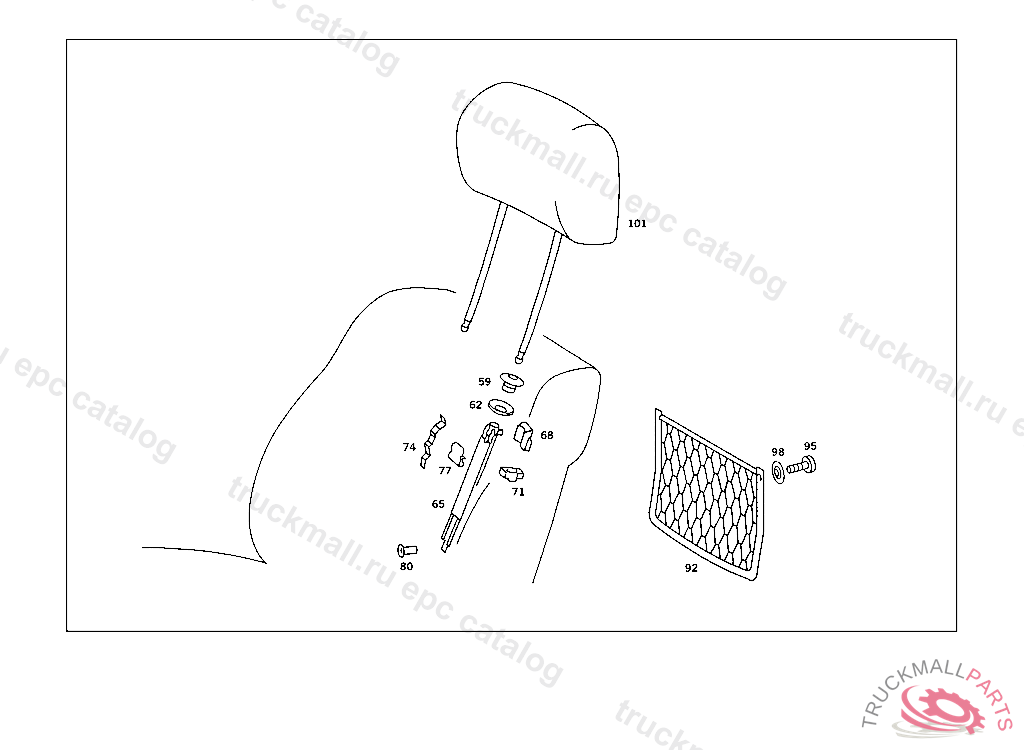

001 FRONT SEAT BACKREST,MB-TEX (TYPE 201,FOR ELECTRICAL PARTS,SEE STANDARD MICROFICH IL.2

Mercedes A0019848529 - Винт

190 E JAPAN 201.024 TO 09/88

80 VACUUM SYSTEM - 001 FRONT SEAT BACKREST,MB-TEX (TYPE 201,FOR ELECTRICAL PARTS,SEE STANDARD MICROFICH IL.2

Поз.
Артикул
Описание
59
A1269880082
EYE
62
A1269901240
WASHER STRAP TO REAR BACKREST
65
A1079700115
RAIL LEFT
65
A1079700215
RAIL RIGHT, HEADREST
68
A1159750024
SLIDE
71
A1159750023
FRICTION PIECE TOP
74
A1249750137
SPRING QUIDE RAIL,LEFT
74
A1159750237
SPRING , Replaced By: A1249750137
77
A1159880478
CLIP
80
N910001004105
RIVET LOCKING LEVER TO BATTERY/APPARATUS SUPPORT
92
A2018100049
LUGGAGE NET FRONT SEAT BACKREST,REAR
95
A2019901636
SCREW , Replaced By: A0019848529
95
A0019848529
SCREW
98
A1129900042
WASHER , Replaced By: A3019900042
98
A3019900042
WASHER
101
A1269705350
HEADREST FRONT SEAT
101
A1269705750
HEADREST FRONT SEAT
101
A2019701350
HEADREST
101
A1269705550
HEADREST FRONT SEAT, LEATHER, FROM MODEL YEAR '83 NO.9054 INO.5073 INO.8323 INO.8333 INO.6096 INO.3087 I I
999
A2019100547
COVER , Replaced By: A2019100047
999
A2019100546
COVER , Replaced By: A2019100946
999
A1159750137
SPRING , Replaced By: A1249750137
