Mercedes A2019884178 - ЗАЖИМ

C 250 TURBODIESEL 202.128

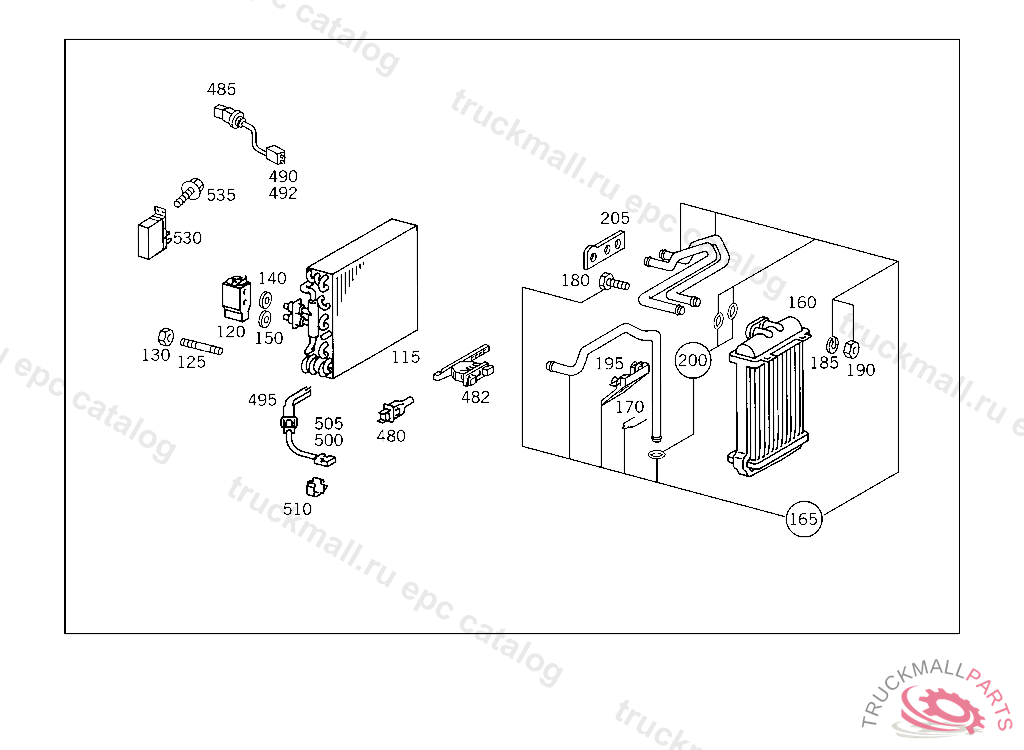

83 HEATING AND VENTILATION - 045 HEATER CASE WITH BLOWER IL. 3

Поз.
Артикул
Описание
115
A2028300758
EVAPORATOR
115
A2028300358
EVAPORATOR
120
A2028300184
VALVE (EXPANSION VALVE), A 328811 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO A 328810 WITH CODE 807
125
N000939006003
STUD BOLT
130
N913012006001
NUT CLAMP TO BRACKET
140
A1409970745
SEAL RING FROM LIQUID TANK TO T-FITTING
150
A1409970845
SEAL RING HOSE TO CONDENSER 14 MM
160
A2108300661
HEAT EXCHANGER
165
A0018309415
PIPE LINE PARTS KIT
165
A0018302215
PIPE LINE PARTS KIT
165
A0018309315
PIPE LINE PARTS KIT
170
A1408350034
SPRING HEAT EXCHANGER PIPES
180
N304017005011
SCREW COVER PLATE TO BRACKET
185
N912004005100
LOCK WASHER T-FITTING TO BRACKET
190
N000562005001
NUT PUMP TO BRACKET
195
A2028350298
SEAL , A 698507 X 012425 EXCEPT CODE 809 ALSO INSTALLED IN VEHICLE FROM A 698508, X 012426 WITH CODE 808
200
A0008357998
SEAL PARTS KIT
205
A2028351498
SEAL
482
A2108300472
TEMPERATURE SENSOR HEAT EXCHANGER
485
A2028300372
TEMPERATURE SENSOR AIR INTAKE
490
A0125458428
PLUG HOUSING
492
A0115451628
PLUG PIN
495
A2108300572
TEMPERATURE SENSOR EVAPORATOR
495
A2108300772
TEMPERATURE SENSOR EVAPORATOR
500
A0125458428
PLUG HOUSING
505
A0115451628
PLUG PIN
510
A2019884178
CLIP BELT LOCK TO SEAT RAIL
