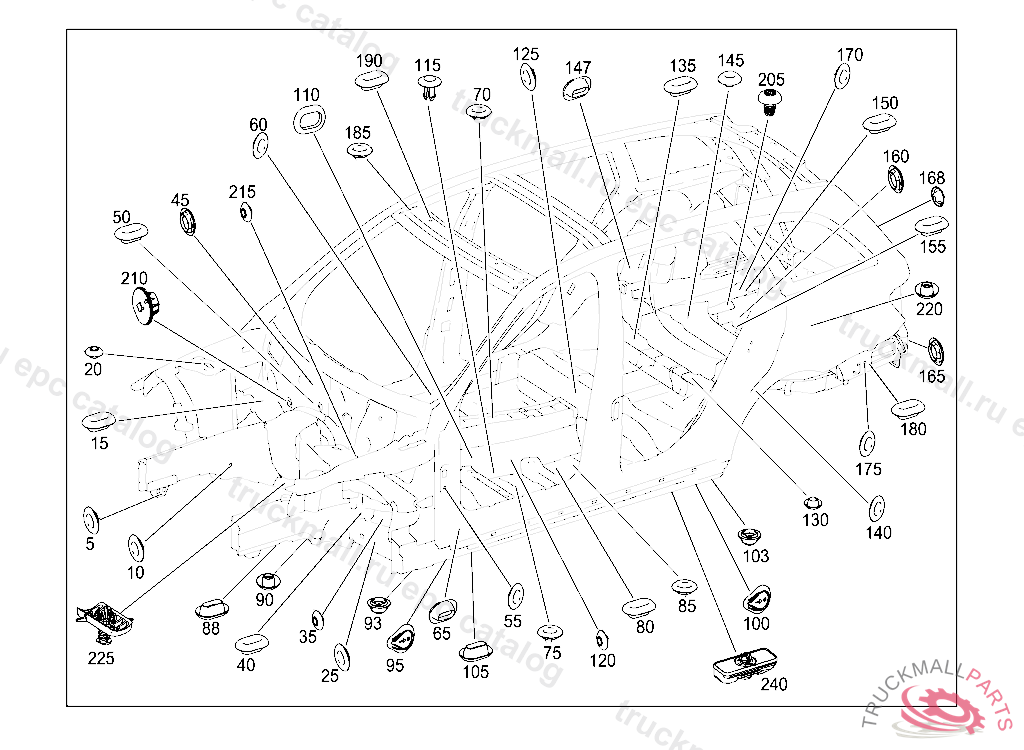

Поз.
Артикул
Описание
5
PLUG CROSS MEMBER IN THE REAR, RIGHT 25 MM
10
PLUG20 MM
15
STOP PLUG LONGITUDINAL MEMBER, TOP, RIGHT 10X20 MM
20
PLUG TO BODY 10 MM, J 78221020091022
25
PLUG CROSS MEMBER IN THE REAR, RIGHT 25 MM
25
STOP PLUG E-RECESS CENTER 30 MM
35
PLUG TO BODY 10 MM, J 78221020091022
40
ADHESIVE TAPE PIPING
40
STOP PLUG LONGITUDINAL MEMBER, TOP, RIGHT 10X20 MM
45
PLUG SIDE MEMBER,INSIDE LEFT 15 MM
45
PLUG CROSS MEMBER IN THE REAR, RIGHT 25 MM
45
EXPANSION PLUG TO PLUG THE MOUNTING HOLE USED FOR GROUND CONNECTION IN CASE OF R.H.D.
50
STOPPER WASHER CLUTCH LINE IN LEGROOM 25X55MM
50
STOP PLUG LONGITUDINAL MEMBER, TOP, RIGHT 10X20 MM
55
PLUG SIDE MEMBER,INSIDE LEFT 15 MM
60
PLUG SIDE MEMBER,INSIDE LEFT 15 MM
60
PLUG20 MM
65
STOP PLUG LONGITUDINAL MEMBER, TOP, RIGHT 10X20 MM
70
PLUG SIDE MEMBER,INSIDE LEFT 15 MM
75
PLUG SIDE MEMBER,INSIDE LEFT 15 MM
75
STOP PLUG BATTERY CASE 6.5 MM
75
PLUG CROSS MEMBER IN THE REAR, RIGHT 25 MM
80
STOP PLUG FASTENING, RIGHT TRIM 20X25 MM, J 72081320090217
80
STOP BUFFER OUTSIDE LEFT
85
PLUG CROSS MEMBER IN THE REAR, RIGHT 25 MM
88
STOP PLUG SIDE PANEL,RIGHT 15X25 MM
88
ADHESIVE TAPE PIPING
90
STOP PLUG ROCKER PANEL LEFT REAR 20 MM
93
GROMMET WATER DRAIN IN SPARE WHEEL WELL 26 MM
95
BUTTON GROMMET AT SIDE MEMBER 20 MM
100
BUTTON GROMMET AT SIDE MEMBER 20 MM
103
GROMMET WATER DRAIN IN SPARE WHEEL WELL 26 MM
105
STOPPER WASHER AT CROSS MEMBER, REAR AXLE 20X30 MM
110
PLUG TRANSMISSION TUNNEL,FRONT RIGHT
115
SEALING PLUGS TRANSMISSION TUNNEL, LEFT 8.6 MM
120
PLUG SIDE MEMBER,INSIDE LEFT 15 MM
120
PLUG TO BODY 10 MM, J 78221020091022
125
PLUG20 MM
130
PLUG TO BODY 10 MM, J 78221020091022
135
STOP PLUG LONGITUDINAL MEMBER, TOP, RIGHT 10X20 MM
140
PLUG20 MM
140
PLUG SIDE MEMBER,INSIDE LEFT 15 MM
140
STOP PLUG E-RECESS CENTER 30 MM
145
STOP PLUG ROCKER PANEL LEFT REAR 20 MM
145
STOP PLUG SIDE MEMBER,FRONT 25 MM
150
STOP PLUG LONGITUDINAL MEMBER, TOP, RIGHT 10X20 MM
155
STOP PLUG SIDE PANEL,RIGHT 15X25 MM
160
PLUG REAR BODY PANEL 37.7MM
165
PLUG REAR BODY PANEL 37.7MM
165
PLUG REAR RIGHT 40 MM
165
PLUG CROSS MEMBER IN THE REAR, RIGHT 25 MM
165
PLUG20 MM
165
STOP PLUG35 MM
168
STOP PLUG BATTERY CASE 6.5 MM
170
PLUG SIDE MEMBER,INSIDE LEFT 15 MM
175
EXPANSION PLUG VENTILATION BORE IN WHEELHOUSE, ONLY FOR REPAIR PURPOSES
180
STOP PLUG SIDE PANEL,RIGHT 15X25 MM
185
PLUG CROSS MEMBER IN THE REAR, RIGHT 25 MM
185
PLUG SIDE MEMBER,INSIDE LEFT 15 MM
190
STOP PLUG LONGITUDINAL MEMBER, TOP, RIGHT 10X20 MM
210
STOP PLUG TO PARTITION WALL, RIGHT
215
STOP PLUG BATTERY CASE 6.5 MM
220
PLUG TO BODY 10 MM, J 78221020091022
225
PLUG JACK TAKE-UP DEVICE ON FRAME-TYPE INTEGRAL SUPPORT, A 33643020091221 L 02994720090430 V 00123720090430 F 31976220090201 L 10000020090901
225
STOP BUFFER JACK TAKE-UP DEVICE ON FRAME-TYPE INTEGRAL SUPPORT, A 33642920091221 L 02994620090430 V 00123620090430 F 31976120090201 R 06979320090108
240
PLUG RIGHT VEHICLE JACK SUPPORT POINT
