Mercedes
CAR
S500 CGI 4MATIC
221.094

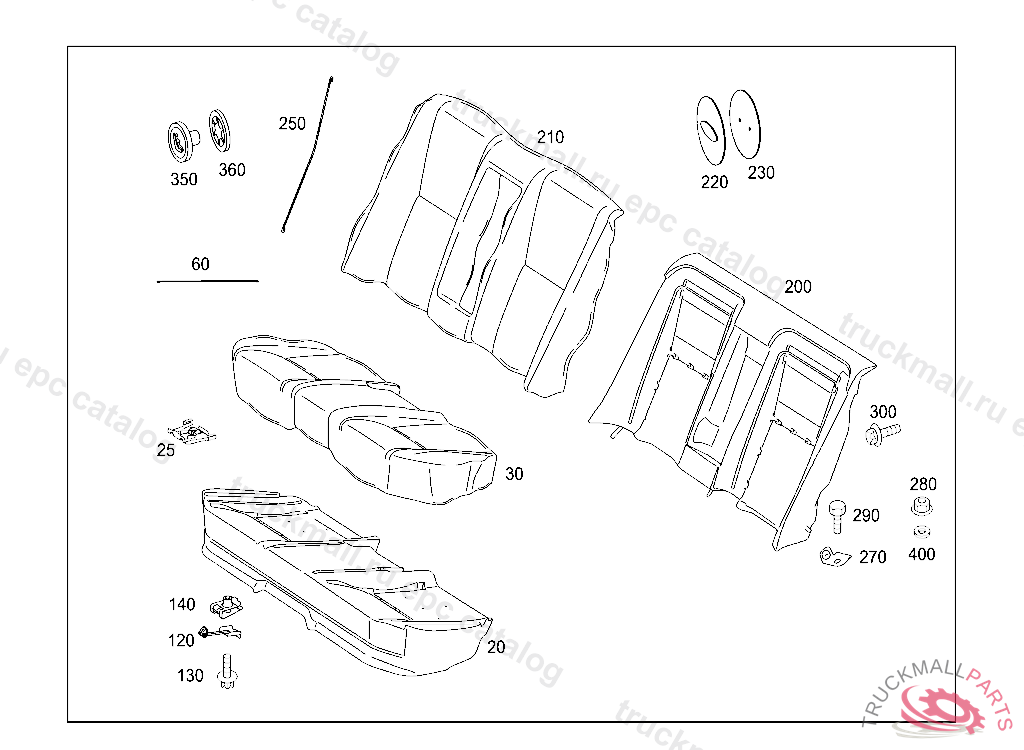

92 REAR SEAT BENCH
015 REAR SEAT CUSHION,REAR BACKREST

Mercedes N304017006016 - Винт M 6 X 16 8.8

S500 CGI 4MATIC 221.094

92 REAR SEAT BENCH - 015 REAR SEAT CUSHION,REAR BACKREST

Поз.
Артикул
Описание
20
A2219202550
REST SEAT CUSHION, A 26557620081001809
20
A2219202450
REST SEAT CUSHION, A 26557620081001809
25
A2219220136
STOP SPRING MOUNTING, SUPPORT TO FRAME
30
A2219203135
UPHOLSTERY CUSHION
30
A2219200833
UPHOLSTERY CUSHION LEATHER
30
A2219201833
UPHOLSTERY CUSHION CENTRAL
30
A2219203937
COVER REAR SEAT CUSHION
30
A2219203035
UPHOLSTERY CUSHION
30
A2219204137
COVER REAR SEAT CUSHION
30
A2219201733
UPHOLSTERY CUSHION CENTRAL
30
A2219200733
UPHOLSTERY CUSHION LEATHER
30
A2219202133
UPHOLSTERY CUSHION
30
A2219204037
COVER REAR SEAT CUSHION
30
A2219203235
UPHOLSTERY CUSHION
30
A2219202837
COVER REAR SEAT CUSHION
30
A2219202033
UPHOLSTERY CUSHION
30
A2219200533
UPHOLSTERY CUSHION SEAT CUSHION, 9E61 011A QFT221A2400 BLACK
30
A2219202635
UPHOLSTERY CUSHION CENTRAL
30
A2219203335
UPHOLSTERY CUSHION
30
A2219202935
UPHOLSTERY CUSHION CENTRAL
30
A2219200633
UPHOLSTERY CUSHION SEAT CUSHION, 9E61 011A QFT221A2400 BLACK
30
A2219202233
UPHOLSTERY CUSHION
30
A2219202835
UPHOLSTERY CUSHION CENTRAL
30
A2219201933
UPHOLSTERY CUSHION
30
A2219202735
UPHOLSTERY CUSHION CENTRAL
60
A2019240729
BRACKET SEAT COVER MOUNTING,LONGITUDINAL, USED WITH LEATHER TRIM
60
A1269242729
BRACKET ALONGSIDE STITCHING OF COVER, WITH FABRIC TRIM
120
A2219200014
BRACKET REAR SEAT CUSHIONS MOUNTING
130
N000000005805
HEXALOBULAR BOLT COVER PANEL FASTENING M8 X 16
130
N910142008002
HEXALOBULAR BOLT ROOF FRAME HINGE M8X16, J 43489420070108
140
A0049941845
SPRING-THREAD NUT PROTECTIVE PLATE
200
A2219208416
REST , A 26557620081001809 A 36930420100930
200
A2219208516
REST BACKREST, A 36930520100930 L 00726620100831
210
A2219202533
BACKREST UPHOLSTERY , A 36930420100930801 9E61 011A QFT221A2400 BLACK
210
A2219201937
COVER REAR SEAT BACKREST
210
A2219203333
BACKREST UPHOLSTERY
210
A2219203133
BACKREST UPHOLSTERY
210
A2219203033
BACKREST UPHOLSTERY
210
A2219204033
BACKREST UPHOLSTERY
210
A2219203833
BACKREST UPHOLSTERY
210
A2219201837
COVER REAR SEAT BACKREST
210
A2219206047
COVER FABRIC
210
A2219203933
BACKREST UPHOLSTERY
210
A2219203633
BACKREST UPHOLSTERY , A 30200020090930800 9E61 011A QFT221A2400 BLACK
210
A2219202833
BACKREST UPHOLSTERY
210
A2219202433
UPHOLSTERY CUSHION , A 36930420100930801 9E61 011A QFT221A2400 BLACK
210
A2219202733
BACKREST UPHOLSTERY
210
A2219202947
COVER FABRIC
210
A2219204333
BACKREST UPHOLSTERY
210
A2219203233
BACKREST UPHOLSTERY
210
A2219202933
BACKREST UPHOLSTERY
210
A2219204133
BACKREST UPHOLSTERY
210
A2219203533
BACKREST UPHOLSTERY , A 30200020090930800 9E61 011A QFT221A2400 BLACK
210
A2219204233
BACKREST UPHOLSTERY
210
A2219203733
BACKREST UPHOLSTERY
210
A2219204433
BACKREST UPHOLSTERY
210
A2219202633
BACKREST UPHOLSTERY
220
A2218100269
PLATE DESIGNO, 7K71QFT204A2185 CHROME
230
A2219120014
BRACKET
250
A1249240429
BRACKET SEAT COVER MOUNTING,LONGITUDINAL
250
A1249241829
BRACKET , Replaced By: A2109240529
270
A2219200314
BRACKET REAR BACKREST MOUNTING, LEFT
270
A2219200414
BRACKET REAR BACKREST TO RIGHT LONGITUDINAL MEMBER
280
N910104006000
NUT-AND-WASHER ASSEMBLY. NUT ABS MOUNTING ON BRACKET ASSEMBLY
290
N304017006016
SCREW PUMP TO BRACKET
300
N000000005805
HEXALOBULAR BOLT COVER PANEL FASTENING M8 X 16
300
N910142008002
HEXALOBULAR BOLT ROOF FRAME HINGE M8X16, J 43489420070108
350
A2208170001
SYMBOL
360
N912010006000
LOCK PLATE BRACKET MOUNTING
360
A0009940648
LOCK BRACKET MOUNTING, Replaced By: N912010006000
400
N000000003260
WASHER LINE MOUNTING
