Mercedes
CAR
E 320 BLUE EFFICIENCY
207.362
88 ATTACHMENT PARTS

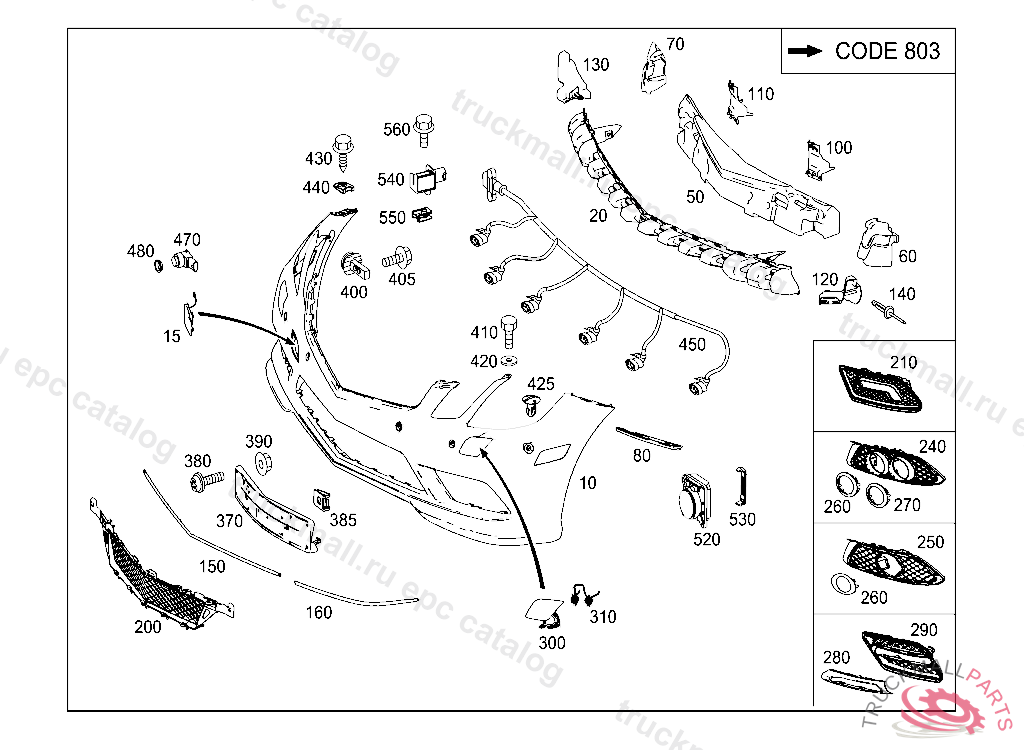

030 FRONT BUMPER IL. 1

Mercedes N304017006016 - Винт M 6 X 16 8.8

E 320 BLUE EFFICIENCY 207.362

88 ATTACHMENT PARTS - 030 FRONT BUMPER IL. 1

Поз.
Артикул
Описание
10
A2078808940
PANELING FRONT BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT207L9000 COLORLESS
10
A2078800547
TRIM BUMPER FRONT BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT207L9000 COLORLESS
10
A2078800847
TRIM BUMPER FRONT BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT207L9000 COLORLESS
10
A2078856625
TRIM BUMPER FRONT BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT207L9000 COLORLESS
10
A2078809040
PANELING FRONT BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT207L9000 COLORLESS
10
A2078808740
PANELING FRONT BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT207L9000 COLORLESS
10
A2078809140
PANELING FRONT BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT207L9000 COLORLESS
10
A2078805547
TRIM BUMPER FRONT BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT207L9000 COLORLESS
10
A2078804840
PANELING FRONT BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT207L9000 COLORLESS
10
A2078856725
TRIM BUMPER FRONT BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT207L9000 COLORLESS
10
A2078804940
PANELING FRONT BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT207L9000 COLORLESS
10
A2078800647
TRIM BUMPER FRONT BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT207L9000 COLORLESS
10
A2078807940
PANELING FRONT BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT207L9000 COLORLESS
10
A2078800347
TRIM BUMPER FRONT BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT207L9000 COLORLESS
10
A2078800147
TRIM BUMPER FRONT BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT207L9000 COLORLESS
10
A2078804640
PANELING FRONT BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT207L9000 COLORLESS
10
A2078800747
TRIM BUMPER FRONT BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT207L9000 COLORLESS
10
A2078857825
TRIM BUMPER FRONT BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT207L9000 COLORLESS
10
A2078808040
PANELING FRONT BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT207L9000 COLORLESS
10
A2078857925
TRIM BUMPER FRONT BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT207L9000 COLORLESS
10
A2078807740
PANELING FRONT BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT207L9000 COLORLESS
10
A2078804740
PANELING FRONT BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT207L9000 COLORLESS
10
A2078800447
TRIM BUMPER FRONT BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT207L9000 COLORLESS
10
A2078807840
PANELING FRONT BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT207L9000 COLORLESS
10
A2078800247
TRIM BUMPER FRONT BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT207L9000 COLORLESS
15
A2078850024
COVER TOWING EYE TOWING EYE, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT207L9000 COLORLESS
15
A2078851023
COVER TOWING EYE TOWING EYE
15
A2078850123
COVER TOWING EYE
20
A2078850265
FRAME CENTRAL
20
A2078850065
BASIC CARRIER CENTRAL
50
A2078851537
ENERGY-ABSORBING UNIT CENTRAL
50
A2078853037
IMPACT ABSORBER CENTRAL
50
A2078850837
ENERGY-ABSORBING UNIT CENTRAL
50
A2078852937
IMPACT ABSORBER CENTRAL
50
A2078852437
IMPACT ABSORBER CENTRAL
50
A2078850437
ENERGY-ABSORBING UNIT CENTRAL
50
A2078852337
IMPACT ABSORBER CENTRAL
50
A2078850337
ENERGY-ABSORBING UNIT CENTRAL
60
A2078853237
IMPACT ABSORBER RIGHT
60
A2078851937
ENERGY-ABSORBING UNIT LEFT
60
A2078852137
ENERGY-ABSORBING UNIT LEFT
60
A2078852737
IMPACT ABSORBER LEFT
60
A2078850537
ENERGY-ABSORBING UNIT LEFT
60
A2078852837
IMPACT ABSORBER RIGHT
60
A2078851137
ENERGY-ABSORBING UNIT LEFT
60
A2078853537
IMPACT ABSORBER LEFT
60
A2078853137
IMPACT ABSORBER LEFT
70
A2078852037
ENERGY-ABSORBING UNIT RIGHT
70
A2078852237
ENERGY-ABSORBING UNIT RIGHT
70
A2078851237
ENERGY-ABSORBING UNIT RIGHT
70
A2078850637
ENERGY-ABSORBING UNIT RIGHT
80
A2078800114
BRACKET MOUNTING RAIL, LEFT
80
A2078800214
BRACKET MOUNTING RAIL, RIGHT
100
A2078850716
REINFORCEMENT LEFT
100
A2078850316
REINFORCEMENT LEFT
100
A2078850916
REINFORCEMENT LEFT
100
A2078850116
REINFORCEMENT LEFT
110
A2078851016
REINFORCEMENT RIGHT
110
A2078850816
REINFORCEMENT RIGHT
110
A2078850216
REINFORCEMENT RIGHT
110
A2078850416
REINFORCEMENT RIGHT
120
A2078850516
REINFORCEMENT LEFT
120
A2078851516
STIFFENING LEFT
120
A2078851416
STIFFENING RIGHT
120
A2078851316
STIFFENING LEFT
120
A2078851616
STIFFENING RIGHT
120
A2078851216
STIFFENING RIGHT
120
A2078851116
STIFFENING LEFT
130
A2078850616
REINFORCEMENT RIGHT
140
A0039909497
BLIND RIVET AT COVERING
150
A2078852321
MOULDING BOTTOM, CENTER
150
A2078851321
MOULDING BOTTOM, CENTER
160
A2078851921
MOULDING BOTTOM LEFT
160
A2078852021
MOULDING BOTTOM RIGHT
200
A2078851923
COVER BUMPER AREA CENTRAL BOTTOM
200
A2078850423
GRILLE CENTRAL BOTTOM
200
A2078850224
COVER BUMPER AREA CENTRAL BOTTOM
210
A2078850453
GRILLE RIGHT BOTTOM
210
A2078871325
COVER RIGHT BOTTOM
210
A2078850353
GRILLE LEFT BOTTOM
240
A2078800905
COVER LEFT BOTTOM
240
A2078850553
GRILLE LEFT BOTTOM
240
A2078801005
COVER RIGHT BOTTOM
240
A2078850653
GRILLE RIGHT BOTTOM
250
A2078800705
COVER LEFT BOTTOM
250
A2078800805
COVER RIGHT BOTTOM
260
A2128850774
CHROMIUM COVER LEFT INSIDE
260
A2128850574
CHROMIUM COVER LEFT OUTSIDE
270
A2128850874
CHROMIUM COVER RIGHT INSIDE
270
A2128850674
CHROMIUM COVER RIGHT OUTSIDE
280
A2078850574
ORNAMENTAL MOLDING RIGHT DAYTIME RUNNING LAMP
280
A2078850474
ORNAMENTAL MOLDING LEFT DAYTIME RUNNING LAMP
290
A2078850753
COVER GRILLE LEFT DAYTIME RUNNING LAMP
290
A2078801224
COVER BUMPER AREA RIGHT BOTTOM
290
A2078801124
COVER BUMPER AREA LEFT BOTTOM
290
A2078850853
COVER GRILLE RIGHT DAYTIME RUNNING LAMP
300
A2078800205
COVER HEADLAMP WIPER,RIGHT
300
A2078800105
COVER HEADLAMP WIPER,LEFT
310
A0019930520
SPRING COVERING
370
A2078851181
LICENSE PLATE MOLDING
370
A2078170378
LICENSE PLATE MOULDING
370
A2078851381
LICENSE PLATE MOLDING
370
A2078850581
LICENSE PLATE MOLDING
370
A2078850781
LICENSE PLATE MOLDING
370
A2078801144
LICENSE PLATE MOLDING
370
A2078850681
LICENSE PLATE MOLDING
370
A2078170278
LICENSE PLATE MOULDING
370
A2078801444
LICENSE PLATE MOLDING
370
A2078850981
LICENSE PLATE MOLDING
370
A2078851281
LICENSE PLATE MOLDING
370
A2078851581
LICENSE PLATE MOLDING
370
A2078851481
LICENSE PLATE MOLDING
370
A2078850881
LICENSE PLATE MOLDING
380
A1639900336
SHEET METAL SCREW ORNAMENTAL COVER TO BUMPER
385
A0049941445
LOCK NUT. LOCK PANELLING TO BUMPER
390
A0039947545
CLIP FASTENER. LOCK PROTECTIVE GRILLE ON CONDENSER BRACKET
400
A2188800430
SIDE STABILITY TO BRACKET, LAMP UNIT, A 20130308 L 06828120130331 V 00525720130331 G 09425320130228 L 20130228
400
A2048800130
GUIDE SIDE GUIDE, E 02900020071206808
410
N304017006016
SCREW PUMP TO BRACKET
410
N000000001145
SCREW BRACKET TO COVERING
420
N009021006208
WASHER COMPRESSED AIR LINE TO BRACKET
425
A0009981495
ROTARY CATCH LIGHTING UNIT TO BUMPER
430
N000000001454
TAPPING SCREW , A 192209 ALSO INSTALLED ON A 159651 - A 192207 WITH CODE 805 FROM MODEL YEAR'95
430
N000000000825
TAPPING SCREW BRACKET TO CAB REAR PANEL 6.3X16
430
N000000000815
TAPPING SCREW BRACKET TO CAB FLOOR
440
A0009940645
LOCK INSTRUMENT PANEL TO PANELLING
440
A0039949345
LOCK NUT. SPRING NUT HEADLINER TO BODY
450
A2074400808
ELECTRICAL WIRING HARNESS
450
A2075406510
WIRING HARNESS PARKTRONIC SYSTEM
450
A2074400208
ELECTRICAL WIRING HARNESS
450
A2075406210
WIRING HARNESS PEDESTRIAN PROTECTION
450
A2074400408
ELECTRICAL WIRING HARNESS
450
A2075405910
WIRING HARNESS PEDESTRIAN PROTECTION
450
A2074409807
ELECTRICAL WIRING HARNESS
450
A2075406010
WIRING HARNESS PEDESTRIAN PROTECTION
450
A2074400508
ELECTRICAL WIRING HARNESS
450
A2074400708
ELECTRICAL WIRING HARNESS
450
A2074409907
ELECTRICAL WIRING HARNESS
450
A2075406110
WIRING HARNESS PEDESTRIAN PROTECTION
450
A2074400008
ELECTRICAL WIRING HARNESS
450
A2075406410
WIRING HARNESS PARKTRONIC SYSTEM
450
A2075406310
WIRING HARNESS PARKTRONIC SYSTEM
450
A2074400608
ELECTRICAL WIRING HARNESS
450
A2074400108
ELECTRICAL WIRING HARNESS
450
A2074400308
ELECTRICAL WIRING HARNESS
470
A0009051202
DISTANCE SENSOR OUTSIDE LEFT AND RIGHT, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT246L9000 COLORLESS
470
A0009059300
DISTANCE SENSOR INSIDE LEFT AND RIGHT, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT246L9000 COLORLESS
480
A0005421251
DECOUPLING RING PARKTRONIC SYSTEM
520
A0009055103
RADAR SENSOR , PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE
520
A0009058702
RADAR SENSOR PROXIMITY-CONTROLLED CRUISE CONTROL, PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE
530
A2128850314
BRACKET RADAR SENSOR
540
A2079056902
PRESSURE SENSOR PEDESTRIAN PROTECTION
540
A1729056000
ACCELERATION SENSOR PEDESTRIAN PROTECTION CENTER, BUMPER AT LEFT AND RIGHT
550
A0009903492
EXPANSION RIVET ORNAMENTAL COVER TO BUMPER
550
A0049941345
FUSE FASTENING SENSOR LEFT/RIGHT
560
N910105005003
HEXAGON HEAD BOLT. SCREW RELAY TO APPARATUS PLATE M 5X20
