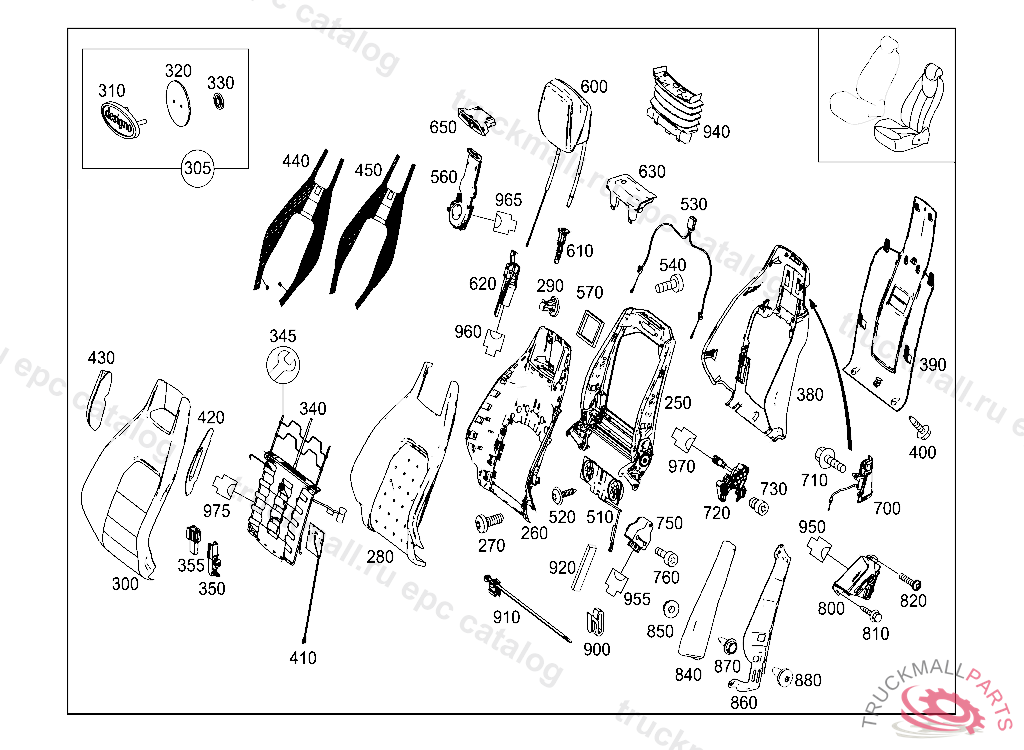

Поз.
Артикул
Описание
250
BACKREST FRAME ASSEMBLY
250
BACKREST FRAME ASSEMBLY
250
BACKREST FRAME ASSEMBLY
260
BACKREST SHELL
260
BACKREST SHELL
270
SCREW
270
HEXALOBULAR BOLT. SCREW BRACKET TO SUPPORT M5 X 12
280
REST
280
REST
280
PAD FRONT SEAT BACKREST
280
REST
280
REST
290
BRACKET
300
COVER TWO COLORED LETHER TRIM
300
COVER
300
COVER FRONT SEAT BACKREST
300
COVER
300
COVER
300
COVER FRONT SEAT BACKREST
300
COVER FRONT SEAT BACKREST
300
COVER FRONT SEAT BACKREST LEATHER
300
COVER FRONT SEAT BACKREST
300
COVER FRONT SEAT BACKREST FABRIC
300
COVER LEATHER
300
COVER FRONT SEAT BACKREST LEATHER
300
COVER FABRIC
300
COVER ONE COLORED LEATHER TRIM
300
COVER LEATHER
300
COVER FRONT SEAT BACKREST LEATHER
300
COVER FRONT SEAT BACKREST LEATHER
300
COVER FABRIC
300
COVER FRONT SEAT BACKREST
300
COVER
300
COVER "TWIN" LEATHER
300
COVER FRONT SEAT BACKREST LEATHER
300
COVER FRONT SEAT BACKREST "TWIN" LEATHER
300
COVER FRONT SEAT BACKREST
300
COVER FRONT SEAT BACKREST FABRIC
305
PLATE DESIGNO, 7K71QFT204A2185 CHROME
310
GUIDE SIGN DESIGNO
320
BRACKET
330
LOCK PLATE BRACKET MOUNTING
340
ADJUSTABLE INSERT (LUMBAR SUPPORT (FFO))
345
PARTS BOX LUMBAR SUPPORT ADJUSTMENT
350
BRACKET
355
HOUSING TAXI OR PREINSTALLATION FOR RENTAL CAR 2-PIN SLK2.8
380
COVER BACKREST BACKREST FRAME
380
COVER BACKREST FRAME
390
PANELING BACKREST
390
PANELING BACKREST
400
SCREW
410
ADJUSTABLE INSERT CENTRAL
420
ADJUSTABLE INSERT LEFT
430
ADJUSTABLE INSERT RIGHT
440
SEAT HEATING
450
BACKREST INSERT
510
AXIAL FAN, ELECTRICAL
520
SCREW
530
PULL LEFT BACKREST LOCK
540
HEXALOBULAR BOLT. SCREW BRACKET TO SUPPORT M5 X 12
560
AXIAL BLOWER SEAT VENTILATION
570
BASE BLOWER
600
HEADREST FABRIC
600
HEAD RESTRAINT
600
HEADREST
600
HEADREST
600
HEAD RESTRAINT
600
HEADREST
600
HEAD RESTRAINT FABRIC, Replaced By: A2079706750
600
HEADREST LEATHER, DESIGNO, UNI-COLOR
600
HEADREST
600
HEADREST
600
HEADREST
600
HEADREST FABRIC
600
HEAD RESTRAINT LEATHER, DESIGNO, TWO-COLOR, Replaced By: A2079707250
600
HEAD RESTRAINT
600
HEAD RESTRAINT LEATHER, DESIGNO, UNI-COLOR, Replaced By: A2079707150
600
HEADREST , 9D88 741A QFT207A2040 BLACK
600
HEADREST "TWIN" LEATHER
600
HEADREST
600
HEAD RESTRAINT
600
HEADREST , 8S73 274A QFT207A2220 ESPRESSO BROWN
600
HEADREST LEATHER, 9E43 221A QFT204A2092 BLACK
600
HEADREST
600
HEADREST LEATHER
600
HEAD RESTRAINT
600
HEADREST , 8R01 874A QFT207A2093 ESPRESSO BROWN
600
HEAD RESTRAINT LEATHER, Replaced By: A2079706850
600
HEADREST LEATHER, DESIGNO, TWO-COLOR
600
HEAD RESTRAINT
600
HEADREST , 9E43 231A QFT207A2041 BLACK
600
HEADREST , 8R01 874A QFT207A2093 ESPRESSO BROWN
600
HEAD RESTRAINT "TWIN" LEATHER, Replaced By: A2079706550
600
HEADREST LEATHER
600
HEAD RESTRAINT
600
HEAD RESTRAINT LEATHER, Replaced By: A2079706650
600
HEADREST LEATHER
610
GUIDE FOR HEADREST WITHOUT LEFT RELEASE
610
GUIDE FOR HEADREST WITHOUT RIGHT RELEASE
610
GUIDE FOR HEADREST WITH UNLOCKING MECHANISM, 9051QFT204A2425 BLACK
620
ADJUSTER POWER HEADRESTS
630
PANELING HEADREST GUIDE
650
AIR NOZZLE HEAD RESTRAINT
700
LOCKING MECHANISM BACKREST, Replaced By: A2079108506
700
LOCKING MECHANISM BACKREST, Replaced By: A2079108306
700
LOCK FOR SEAT BACKREST BACKREST
700
LOCK FOR SEAT BACKREST BACKREST
700
LOCK FOR SEAT BACKREST BACKREST
700
LOCK FOR SEAT BACKREST BACKREST
710
HEXALOBULAR BOLT. SCREW BRACKET TO SUPPORT M5 X 12
720
UNLOCKING BACKREST
720
UNLOCKING BACKREST
730
BOLT TO PRESSURE SENSOR
750
CONTROL UNIT SEAT VENTILATION
760
SCREW FUSE BOX TO SIDE MEMBER,5 097182
800
PELVIS AIRBAG LEFT
810
SCREW
820
BOLT MOUNTING PLATE COVER 4 X 20 MM
840
AIR BAG
850
NUT RELAY TO BRACKET M5
860
PLATE FASTENING SIDE AIRBAG
870
SCREW
880
BOLT. SCREW CAN NEUTRAL POINT ON EQUIPMENT PLATE M 6X15/10
900
CLIP
910
CABLE STRAP FOR SHEET THICKNESS: 1.0-3.0 MM
920
BASE LUMBAR SUPPORT PUMP
940
BOOT
950
REP.SET CONTACT WINDOWBAG SQUIB, REAR 2-PIN 0.5MM2,R12/22 R12/23
950
PLUG HOUSING UNIPOLAR
955
PLUG HOUSING. PIN BUSHING HOUSING SEAT ADJUSTMENT SWITCH, A 394035 X 004165, J 036478 EXCEPT CODE 808 ALSO INSTALLED IN VEHICLE FROM A 394036 / X 004166 WITH CODE 807
960
PIN BUSHING HOUSING RAIN SENSOR 4 POLIG
965
PLUG FUSE AND RELAY BOX NEAR DRIVER'S SEAT 2POLIG, A 519674 F 619721 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO A 519673, F 619720 WITH CODE 808
965
SOCKET HOUSING TRUNK LID RELEASE SWITCH 4-PIN MQS,S15/1
970
PLUG HOUSING. PIN BUSHING HOUSING STEERING COLUMN ELECTRICALLY ADJUSTABLE 4-POLIG, A 843748 X 019421
975
PIN BUSHING HOUSING FROM BATTERY TO CONTACTOR
975
PLUG HOUSING DOOR CONTROL MODULE, LEFT 7-PIN MQS, MCP2.8
