E 320 - 210.055 TO MODELLJAHR CODE 809 - 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS

5

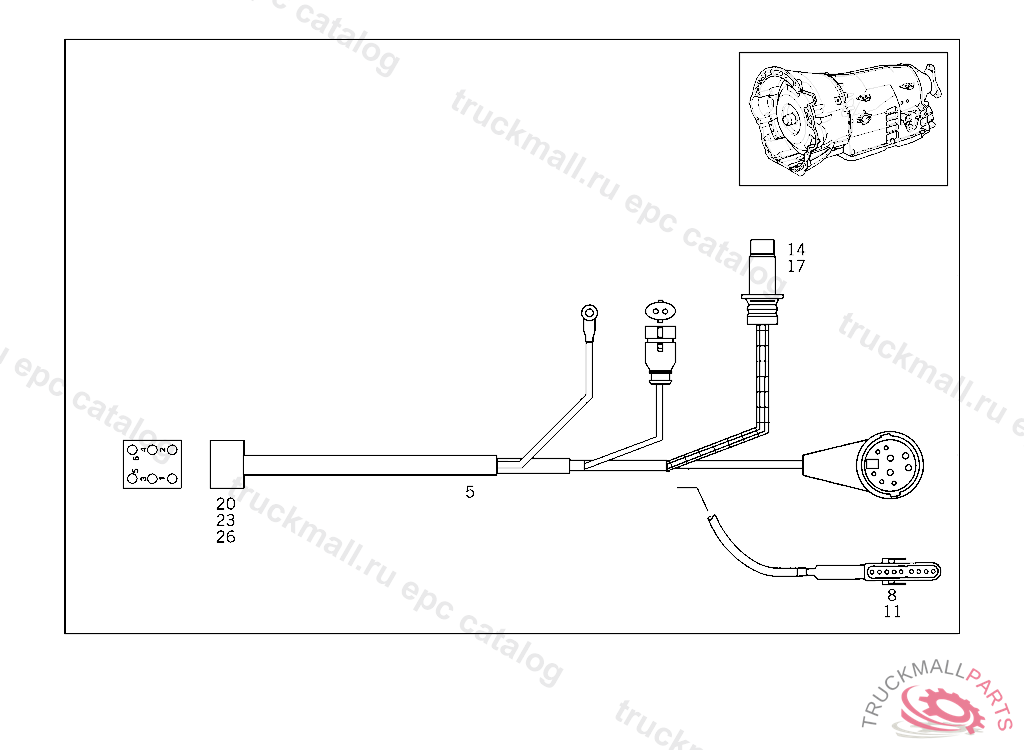

CABLE HARNESS STARTER NON-REPEAT AND BACK-UP LIGHT SWITCH, AS OF IDENT.NO.: SEE TU 54/685 CABLE HARNESS (FRONT FLOOR UNIT) A 177063 J 024801 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE FROM A 177064, J 024802 WITH CODE 806

14

PIN BUSHING HOUSING KICK-DOWN SOLENOID VALVE

17

ROUND PIN BUSHINGTO 012 545 35 28

20

PLUG HOUSING

23

COVER

26

PLUG PIN ADDITIONAL CABLE TO SERIES CABLE
