Mercedes A2102410034 - Экран

E 300 TURBODIESEL 210.225 TO MODELLJAHR CODE 809

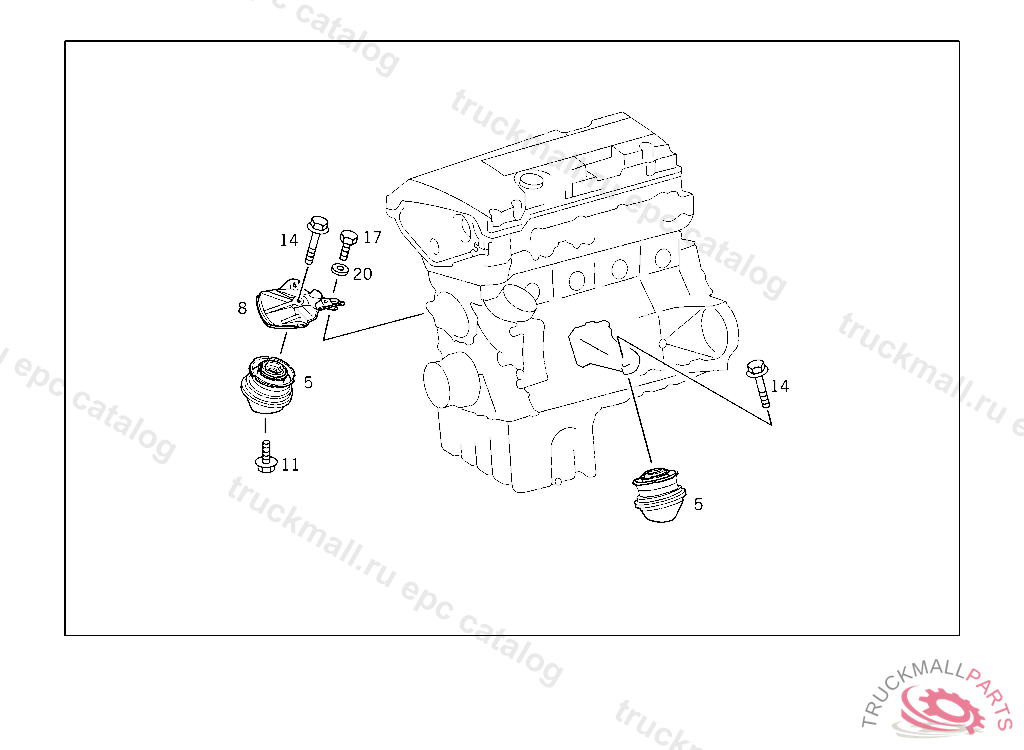

24 ENGINE SUSPENSION - 015 ENGINE SUSPENSION IL. 1

Поз.
Артикул
Описание
5
A2022403017
ENGINE MOUNTING FRONT RIGHT
5
A2032400617
ENGINE MOUNTING FRONT RIGHT
5
A2022402817
ENGINE MOUNTING , Replaced By: A2032400617
8
A2102410034
SCREENING PLATE ENGINE FRONT RIGHT MOUNTING
11
A2029902201
BOLT FRONT ENGINE MOUNT ON FRAME-TYPE INTEGRAL SUPPORT M8X21
14
N304017010051
SCREW
14
N914007010066
COMBINATION BOLT. SCREW-AND-WASHER ASSEMBLY ENGINE FRONT RIGHT MOUNTING M10X60, Replaced By: N304017010051, +001N000000003260
17
N914146006102
SCREW CLAMP MOUNTING M 6X16
20
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
20
N000125006449
WASHER COMPRESSED AIR LINE TO BRACKET
