Поз.
Артикул
Описание

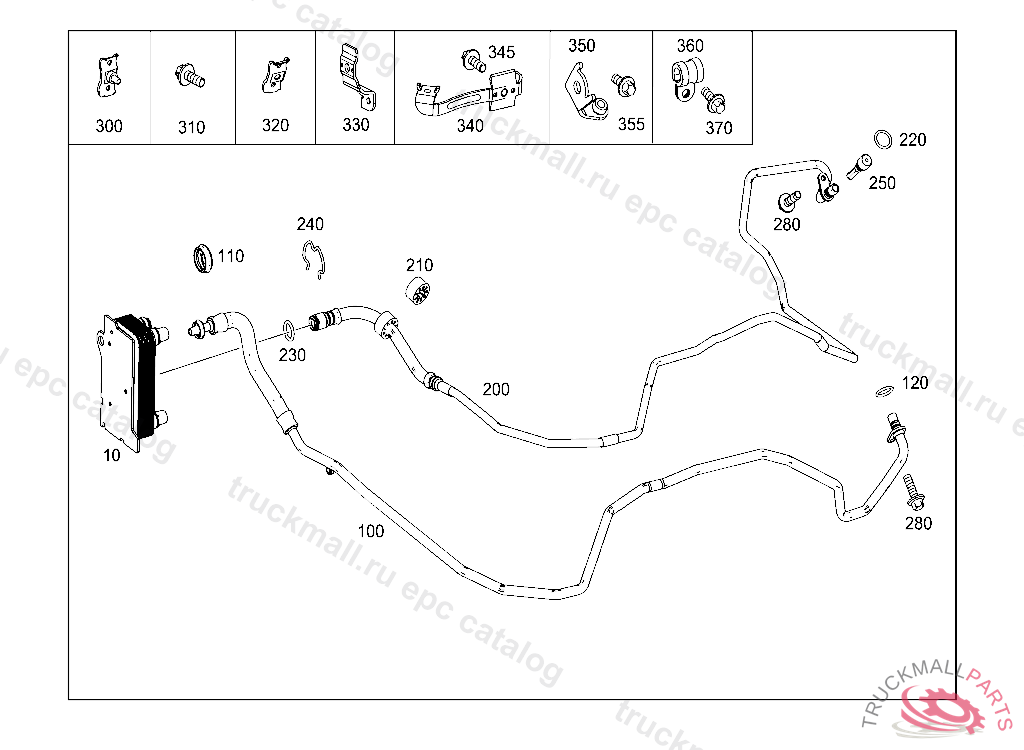

10
OIL COOLER TRANSMISSION OIL
100
OIL LINE FROM TRANSMISSION TO OIL COOLER,LEFT
110
DUST PROTECTION CAP OIL LINE LEFT
110
DUST PROTECTION CAP OIL LINE RIGHT
110
PROTECTIVE CAP OIL LINE
120
O-RING OIL LINE TO TRANSMISSION
120
O-RING OIL LINE 9.70X1.50, A 02316520090124
200
OIL LINE RIGHT
220
O-RING OIL LINE 9.70X1.50, A 02316520090124
220
O-RING OIL LINE TO TRANSMISSION
230
O-RING TRANSMISSION OIL LINE TO OIL COOLER 9.25X1.78
230
O-RING RIGHT 9.25X1.78
240
DETENT SPRING OIL LINE
280
HEXALOBULAR BOLT. SCREW WIRING HARNESS ON OIL FILTER HOUSING
300
CLAMP FASTENING, TRANSMISSION FLUID LINES
