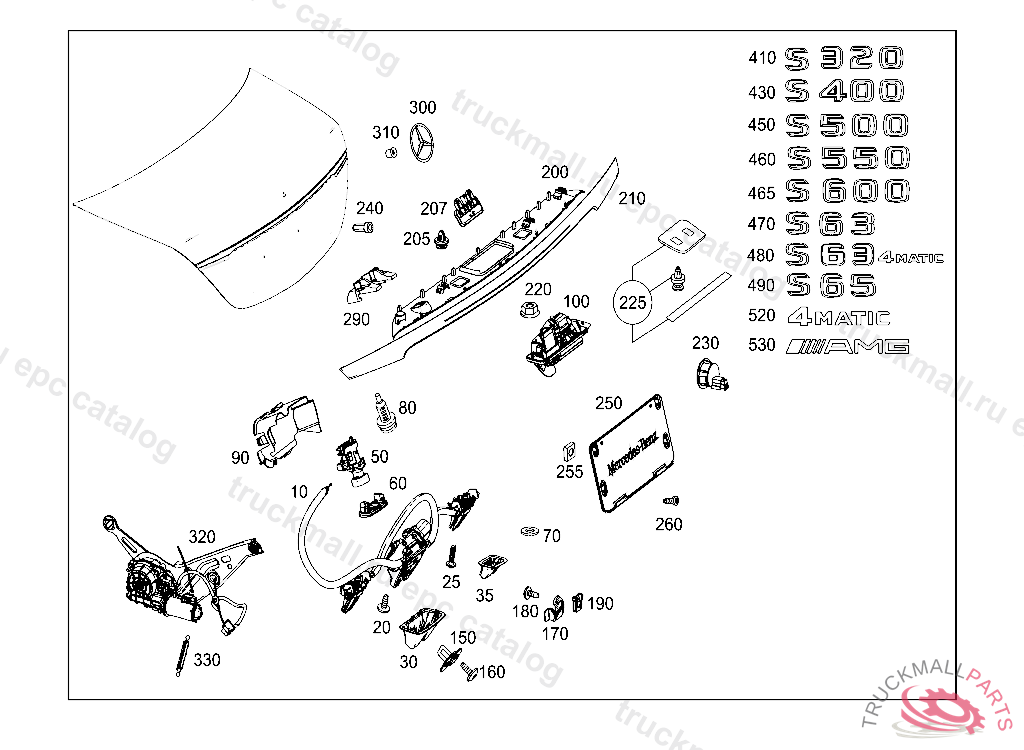

Поз.
Артикул
Описание
10
LOCK REAR LID
10
LOCK REAR LID
10
LOCK REAR LID
20
HEXALOBULAR BOLT BRACKET ON TUBULAR SUPPORTING FRAMEWORK M6X12
25
BOLT ATTACHMENT COVER
30
COVER MOLDING CENTER LOCK
35
COVER MOLDING RIGHT LOCK
35
COVER MOLDING LEFT LOCK
50
UNLOCKING MECHANICAL FOR EMERGENCY ACTUATION
60
BRACKET MECHANICAL FOR EMERGENCY ACTUATION
70
COVER MOLDING BUFFER TO TRUNK LID
80
TUMBLER , THEFT-RELEVANT PART
90
COVER, RELEASE MANUAL UNLOCKING
100
RELEASE HANDLE ELECTRIC
100
RELEASE HANDLE TRUNK LID RELEASE
100
RELEASE HANDLE TRUNK LID RELEASE
150
U-SHAPED STRIKER TO REAR END CENTER ASSEMBLY
150
U-SHAPED STRIKER TO REAR END CENTER ASSEMBLY
160
FILLISTER HEAD SCREW BRACKET MOUNTING M6X18,8
170
U-SHAPED STRIKER TO REAR END CENTER ASSEMBLY
180
HEXALOBULAR BOLT BRACKET ON TUBULAR SUPPORTING FRAMEWORK M6X12
190
LOCK NUT. SPRING NUT STEP TO ENTRANCE
200
HANDLE MOLDING ON REAR LID
205
PANELING CLIP DOOR TRIM MOUNTING LEFT
207
PUSH-BUTTON SWITCH TRUNK LID RELEASE
207
PUSH-BUTTON SWITCH MOULDING TYPE HANDLE, J 53092220070910808
210
MOULDING ON REAR LID
220
NUT , Replaced By: N913023006001
225
MOUNTING MATERIAL HANDLE LEDGE TO REAR LID
230
BUZZER IN REAR-END DOOR
240
NUT ROUND HEAD, LICENSE PLATE TO TAIL CENTRAL PART
250
MOUNTING PLATE DESIGNATION
250
FASTENING PLATE AT REAR PANEL DOOR
255
NUT ATTACHMENT PLATE
255
NUT , F 184896
260
HEXALOBULAR BOLT PLATE TO REAR LID M5X16
290
BRACKET CONNECTOR, BACKUP CAMERA
290
BRACKET CAMERA
300
MERCEDES STAR ON REAR LID
310
GROMMET MERCEDES STAR TO REAR LID
320
DRIVE UNIT TRUNK LID DRIVE TRUNK LID
330
STANCHION
465
MODEL PLATE TRUNK LID, LEFT S600L
465
MODEL PLATE TRUNK LID, LEFT S600
