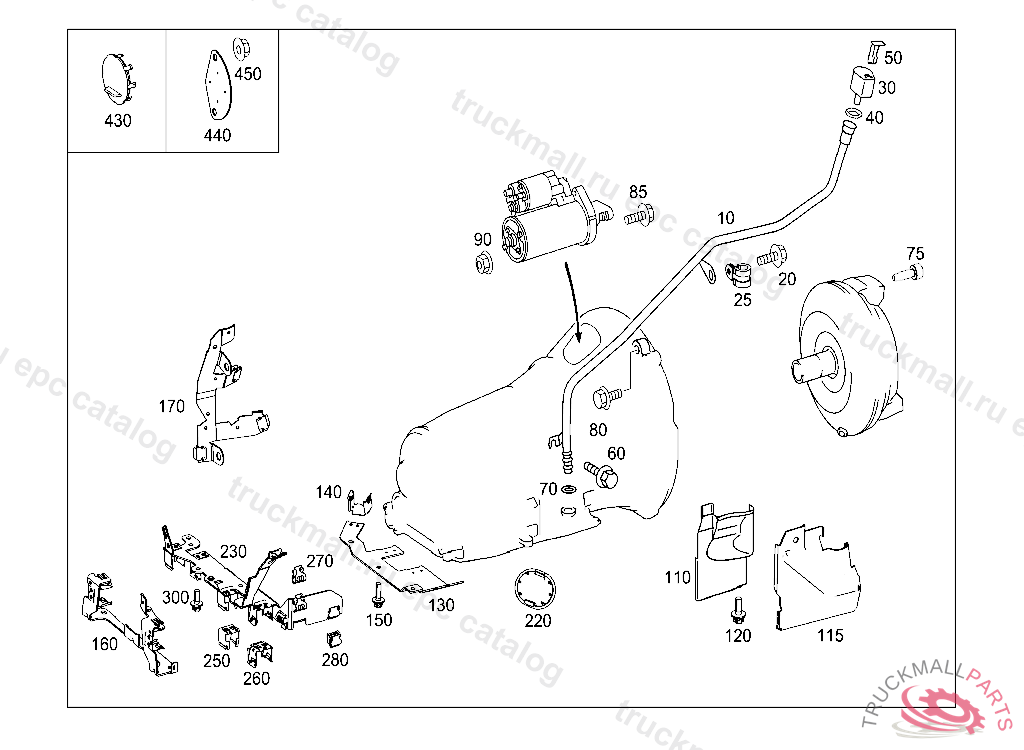

Поз.
Артикул
Описание
20
HEXAGON HEAD BOLT
25
MOUNTING CLAMP OIL FILLER TO ENGINE
25
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
30
COVER OIL FILLER PIPE
40
SEAL RING COVER OIL FILLER PIPE 11.5X2.5
50
DOWEL PIN OIL FILLER PIPE
60
HEXAGON HEAD BOLT
70
SEAL RING COVER OIL FILLER PIPE 11.5X2.5
75
CAPSCREW W HEXAL. DRIVE DRIVE CONNECTION, ENGINE TO CONVERTER M10X34
75
SCREWM 8X18
75
BOLT DRIVE CONNECTION BETWEEN ENGINE AND TRANSMISSION M10X31, F 95500020070630
80
SCREW PLATE TO FRAME M 10X45
85
HEXALOBULAR BOLT P.T.O. TO TRANSMISSION M10X90
90
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
110
COVER TRANSMISSION CASE AND OIL PAN
115
SCREENING PLATE AT TRANSMISSION CASE, A 38522920100226 L 03616920091130 V 00202920091130 F 45787320091213 L 10798620100225
115
COVER AT TRANSMISSION CASE, F 45787220091213
120
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
220
CAP CAP ASSEMBLY OPENING IN OIL PAN
440
COVER FOR STARTER EYE
