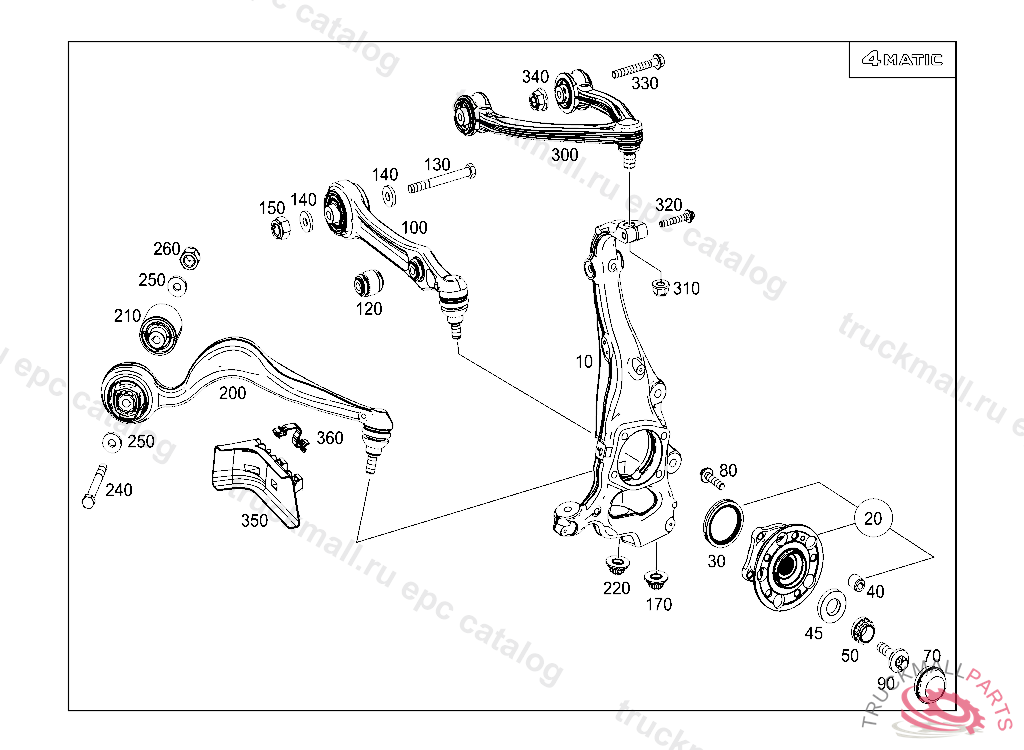

Поз.
Артикул
Описание
10
STEERING KNUCKLE LEFT
10
STEERING KNUCKLE RIGHT
20
FRONT WHEEL HUB LEFT AND RIGHT
30
SEAL RING WHEEL HUB, RIGHT
40
CLAMPING PIN BRAKE DISC TO WHEEL HUB
45
DISK WHEEL HUB, LEFT
50
NUT AXLE SHAFT TO REAR AXLE SHAFT FLANGE
70
LOCKING CAP FRONT WHEEL HUB TO STEERING KNUCKLE
100
SPRING LINK LEFT
100
SPRING LINK RIGHT
100
SPRING LINK LEFT
130
HEXAGON HEAD BOLT SHOCK ABSORBER TO BOTTOM BRACKET M16X1.5X140
130
HEXAGON HEAD BOLT LOWER CONTROL ARM TO FRAME M14X1,5X130
140
SHIM SPRING CONTROL ARM TO INTEGRAL CARRIER, RIGHT
140
SPACER DISK TORQUE STRUT TO FRAME-TYPE INT. SUPP.
150
HEXAGON NUT EXTENSION TO REAR AXLE CARRIER
150
HEXAGON NUT STEER. KNUCKLE TO TRAN. CON. ARM RIGHT M14X1,5
170
NUT HYDROPNEUMATIC SPRING LEG TO SPRING CONTROL ARM
170
BIHEXAGONAL NUT TORQUE STRUT AT STEERING KNUCKLE, RIGHT M16
200
STRUT ROD LEFT
200
STRUT ROD RIGHT
220
BIHEXAGONAL NUT TORQUE STRUT AT STEERING KNUCKLE, RIGHT M16
220
NUT TORQUE STRUT AT STEERING KNUCKLE, RIGHT M16
240
HEXAGON HEAD BOLT LOWER CONTROL ARM TO FRAME M14X1,5X130
240
HEXAGON HEAD BOLT SHOCK ABSORBER TO BOTTOM BRACKET M16X1.5X140
250
SPACER DISK TORQUE STRUT TO FRAME-TYPE INT. SUPP.
250
SHIM SPRING CONTROL ARM TO INTEGRAL CARRIER, RIGHT
260
HEXAGON NUT STEER. KNUCKLE TO TRAN. CON. ARM RIGHT M14X1,5
260
HEXAGON NUT EXTENSION TO REAR AXLE CARRIER
310
NUT LINKAGE TO REAR AXLE M10, J 45136320070307
320
HEXAGON HEAD BOLT AUTOMATIC TRANSMISSION AT ENGINE M10X60
330
HEXAGON HEAD BOLT TRANSVERSE CONTROL ARM LEFT TO BODY M12X1,5X95
340
NUT SUPPORTING STRUT AT BRACKET AT LEFT BOTTOM M12X1.5, A 20131120
