Поз.
Артикул
Описание

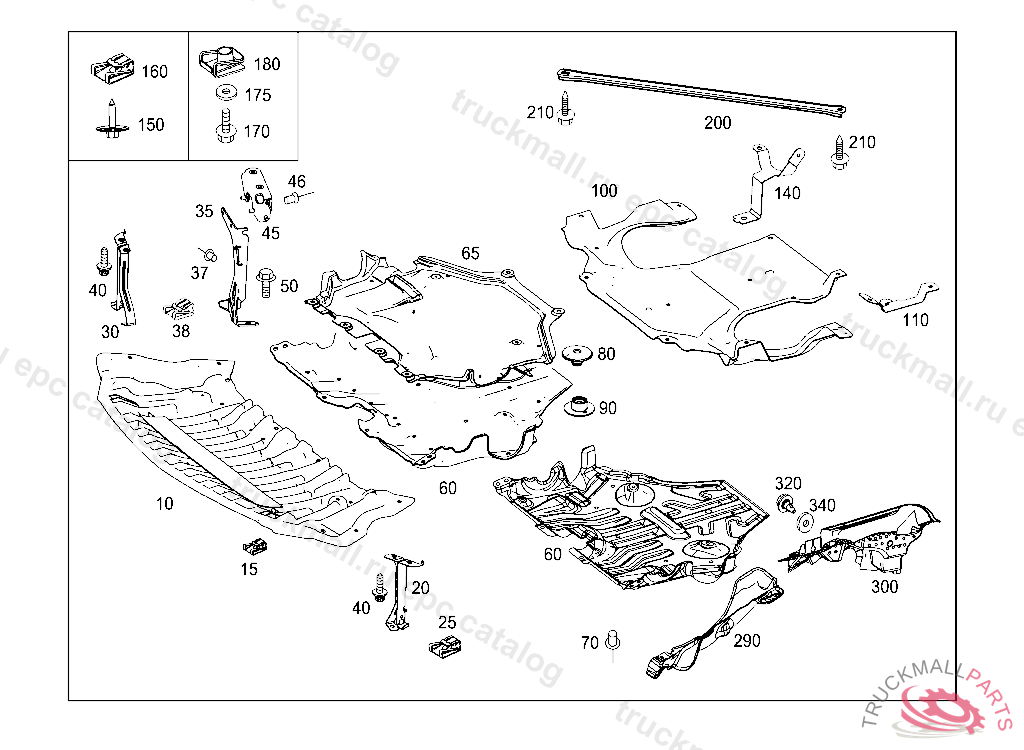

10
COVER F ENGINE COMP. BM FRONT, A 05127220120330
10
COVER F ENGINE COMP. BM FRONT, A 20130822
10
COVER F ENGINE COMP. BM FRONT
10
ENCAPSULATION FRONT
10
COVER F ENGINE COMP. BM FRONT, A 05127320120330 A 20130822
15
CLIP-TYPE NUT BUMPER TO FRONT MODULE 4,8, J 47253620070424
20
BRACKET LEFT
30
BRACKET RIGHT
40
HEXALOBULAR BOLT. SCREW
60
COVER F ENGINE COMP. BM CENTRAL
60
UNDERBODY PROTECTION CENTRAL
80
FASTENER BUTTON UPPER PART
90
FASTENER BUTTON LOWER PART
100
COVER F ENGINE COMP. BM REAR
100
COVER F ENGINE COMP. BM REAR, Replaced By: A2185240200
110
BRACKET REAR LEFT
140
BRACKET REAR RIGHT
150
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
160
LOCK. CLIP-TYPE NUT
160
CLIP-TYPE NUT BUMPER TO FRONT MODULE 4,8, J 47253620070424
170
SCREW BRACKET TO CROSS CONNECTION STRUT
175
WASHER BRACKET TO CAB REAR PANEL
180
SPRING-THREAD NUT PROTECTIVE PLATE
200
STRUT FRONT RIGHT
210
HEXAGON HEAD BOLT ROCKER PANEL AT FRONT M10X23,5
300
ENCAPSULATION CENTRAL RIGHT
300
ENCAPSULATION CENTRAL LEFT
320
BOLT HOSE TO FRAME-TYPE INTEGRAL SUPPORT M6X12
