Поз.
Артикул
Описание

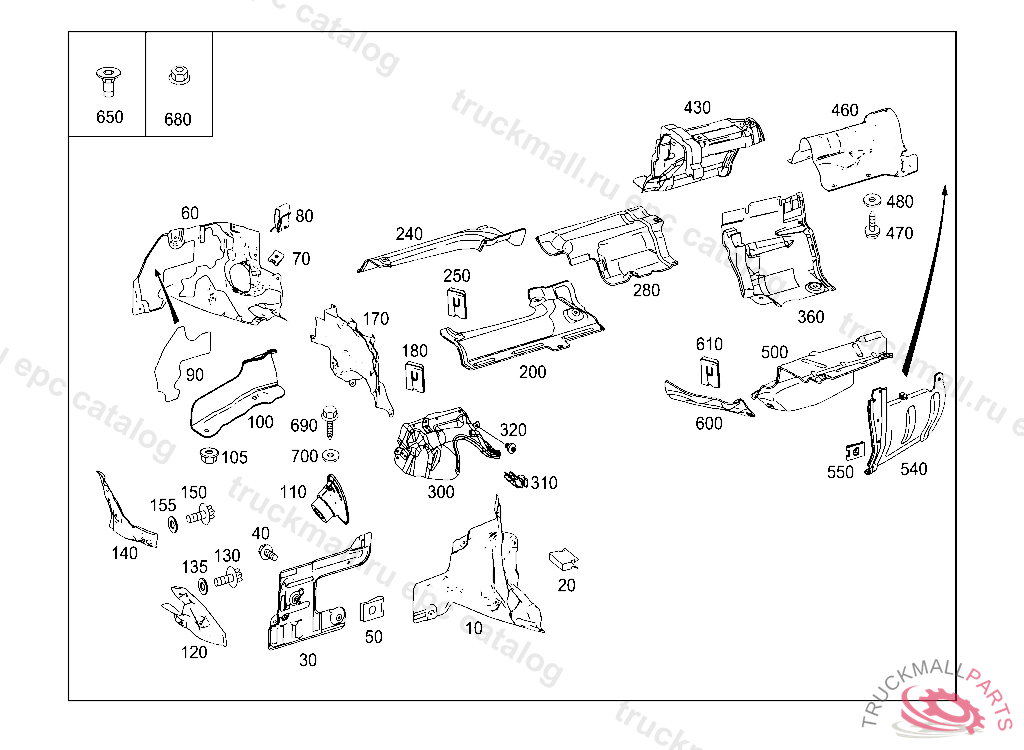

10
SCREENING TO FIRE WALL,LEFT, A 04139120120110
10
SHIELDING TO FIRE WALL,LEFT, A 04139220120110
10
SHIELDING TO FIRE WALL,LEFT, A 04139220120110
10
SHIELDING TO FIRE WALL,LEFT, A 04139120120110
20
CLIP , 023 045544 033 023449 123 031503 130 041295
30
SHIELDING ENGINE COMPARTMENT,LEFT
30
SHIELDING ENGINE COMPARTMENT,RIGHT
30
SHIELDING ENGINE COMPARTMENT,LEFT, Replaced By: A2126827471
30
SHIELDING ENGINE COMPARTMENT,RIGHT, Replaced By: A2126825971
40
BOLT ABSORBER AT LONGITUDINAL MEMBER
50
CLIP
60
SHIELDING TO GUARD
60
SCREENING TO FIRE WALL,RECHTS
110
SHIELDING STEERING JOINT BOOT
110
SHIELDING STEERING JOINT BOOT, A 03982120111219
110
SHIELDING STEERING JOINT BOOT
110
SHIELDING STEERING JOINT BOOT, A 03982120111219
200
SCREENING PLATE TO MAIN FLOOR LEFT, Replaced By: A2126828571
200
SHIELDING TO MAIN FLOOR LEFT
240
SHIELDING FLOOR,RIGHT, A 07073320120911
240
SCREENING PLATE FLOOR,RIGHT, A 07073220120911
250
CLIP
280
SHIELDING OVER CATALYST, A 07158420120918
280
SCREENING PLATE OVER CATALYST, A 05893620120601
280
SHIELDING OVER CATALYST, A 05893720120601 A 07158320120918
360
SCREENING PLATE OVER LEFT CENTER MUFFLER
430
SCREENING PLATE OVER RIGHT CENTER MUFFLER
460
SCREENING PLATE BELOW FUEL TANK
470
HEXALOBULAR BOLT. SCREW BRACKET TO SUPPORT M5 X 12
480
WASHER AIR VENT FASTENING
500
SHIELDING REAR MUFFLER RIGHT, INSIDE, A 20130930
500
SHIELDING REAR MUFFLER, LEFT, INSIDE
540
SCREENING PLATE REAR MUFFLER, RIGHT, OUTER
540
SCREENING PLATE REAR MUFFLER, LEFT, OUTER
550
LOCK RIGHT PANELLING TO SIDE MEMBER
600
SHIELDING RIGHT FRONT SPARE TIRE WELL, A 20130930
600
SCREENING PLATE LEFT FRONT SPARE TIRE WELL
610
CLIP
650
HEXAGON NUT W COLLAR BRACKET MOUNTING
680
NUT , Replaced By: N913023006001
690
TAPPING SCREW PROTECTIVE GRILLE 4.8X16 MM
700
WASHER
