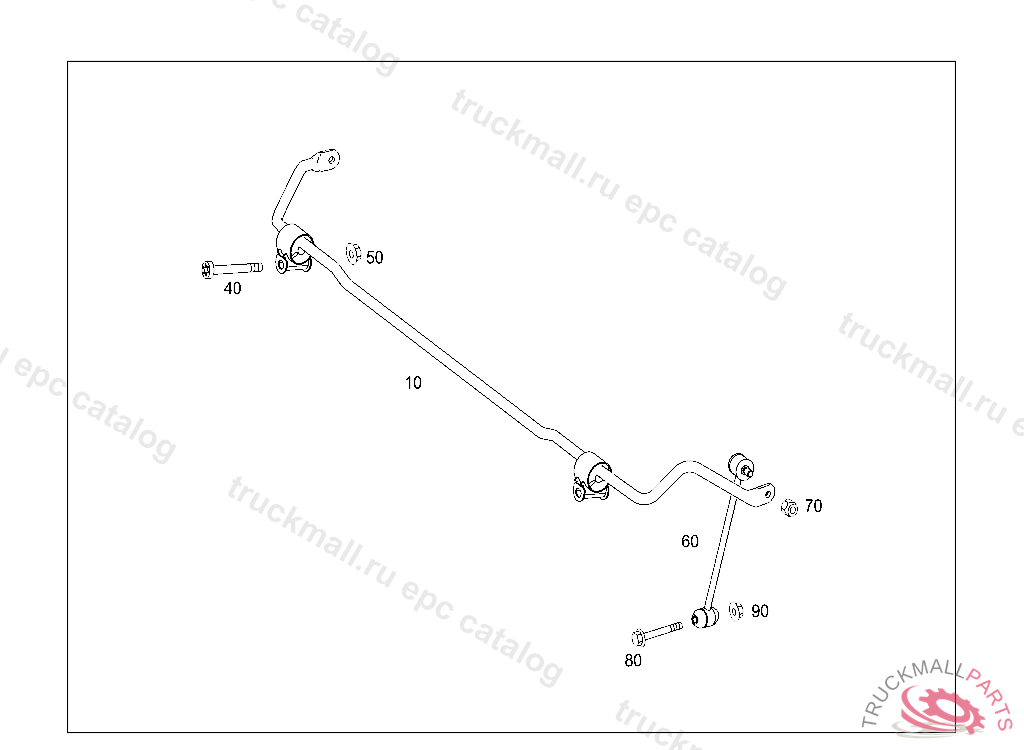

CLS 500 - 218.373 - 32 SPRINGS, SUSPENSION AND HYDRAULIC SYSTEM
Поз.
Артикул
Описание
10
TORSION BAR WITH BEARING D20MM
40
HEXALOBULAR BOLT TORSION BAR TO REAR AXLE CARRIER
50
NUT SUPPORTING STRUT AT BRACKET AT LEFT BOTTOM M12X1.5, A 20131120
60
ROD RIGHT
60
ROD LEFT
70
NUT ROD TO TORSION BAR
80
HEXALOBULAR BOLT TRAVEL SENSOR TO FRAME SIDE MEMBER M8X70,V 207570
90
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
