Поз.
Артикул
Описание
10

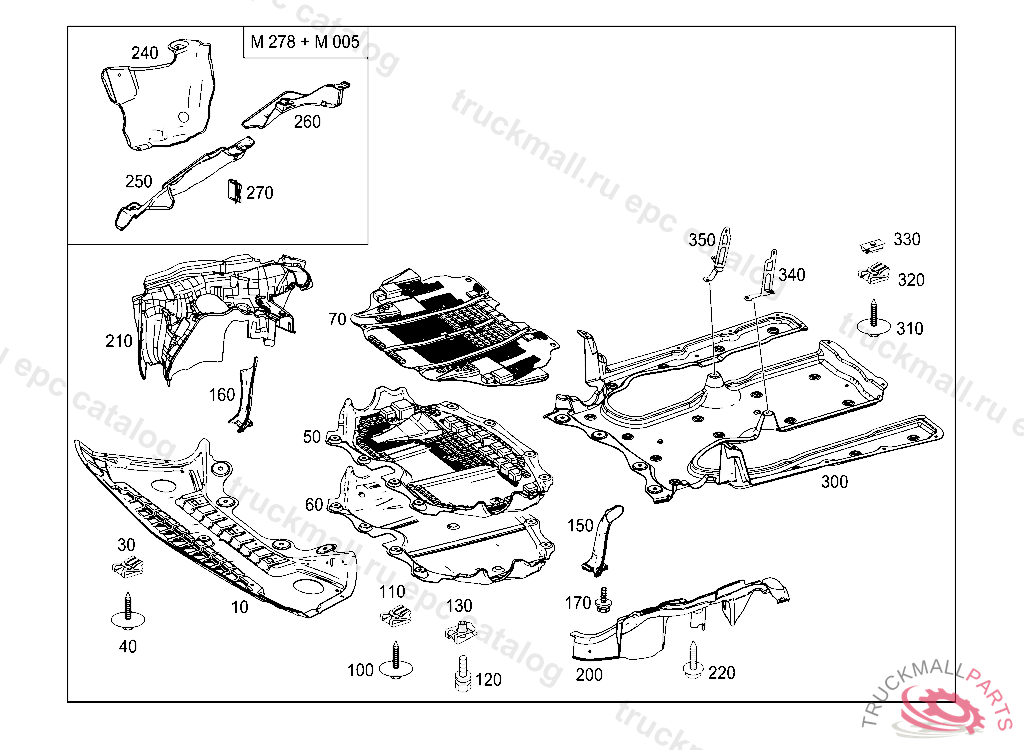

ENCAPSULATION ENGINE COMPARTMENT FRONT PANELLING
10
ANTINOISE CAPSULE FRONT, Replaced By: A2215206723
10
ENCAPSULATION FRONT, A 02846920110531
30
CLIP-TYPE NUT BUMPER TO FRONT MODULE 4,8, J 47253620070424
40
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
50
UNDERBODY GUARD INSULATION IN ENGINE COMPARTMENT, CENTRAL, A 02846820110531
50
ANTINOISE CAPSULE INSULATION IN ENGINE COMPARTMENT, CENTRAL, A 02430720090731800 A 02846820110531
50
UNDERBODY PROTECTION INSULATION IN ENGINE COMPARTMENT, CENTRAL, A 02846920110531
50
ENCAPSULATION INSULATION IN ENGINE COMPARTMENT, CENTRAL, A 02846920110531
60
COVER F ENGINE COMP. BM INSULATION IN ENGINE COMPARTMENT, CENTRAL, A 02846920110531
60
PANELING INSULATION IN ENGINE COMPARTMENT, CENTRAL, A 02846820110531
70
DAMPING STRIP INSULATION IN ENGINE COMPARTMENT, CENTRAL
100
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
110
CLIP-TYPE NUT BUMPER TO FRONT MODULE 4,8, J 47253620070424
120
SCREW BRACKET TO CROSS CONNECTION STRUT
130
SPRING-THREAD NUT PROTECTIVE PLATE
150
PIPE LEFT SIDE ENGINE BULKHEAD INSULATION
160
PIPE RIGHT SIDE ENGINE BULKHEAD INSULATION
200
ANTINOISE CAPSULE LEFT SIDE ENGINE COMPARTMENT, A 02430720090731800
200
ANTINOISE CAPSULE LEFT SIDE ENGINE COMPARTMENT, A 02093420080723
210
ANTINOISE CAPSULE RIGHT SIDE ENGINE COMPARTMENT, A 02093420080723
210
ENCAPSULATION RIGHT SIDE ENGINE COMPARTMENT, A 02430720090731800
220
HEXALOBULAR BOLT. SCREW STEP TO ENTRANCE
300
COVER F ENGINE COMP. BM REAR ENGINE COMPARTMENT COVERING
320
CLIP-TYPE NUT BUMPER TO FRONT MODULE 4,8, J 47253620070424
330
LOCK. CLIP-TYPE NUT
340
BRACKET PANELLING REAR LATERAL LEFT
350
BRACKET PANELLING REAR LATERAL RIGHT
