Mercedes A2225050161 - Воздушный канал

S 350 BLUETEC 4-MATIC 222.033

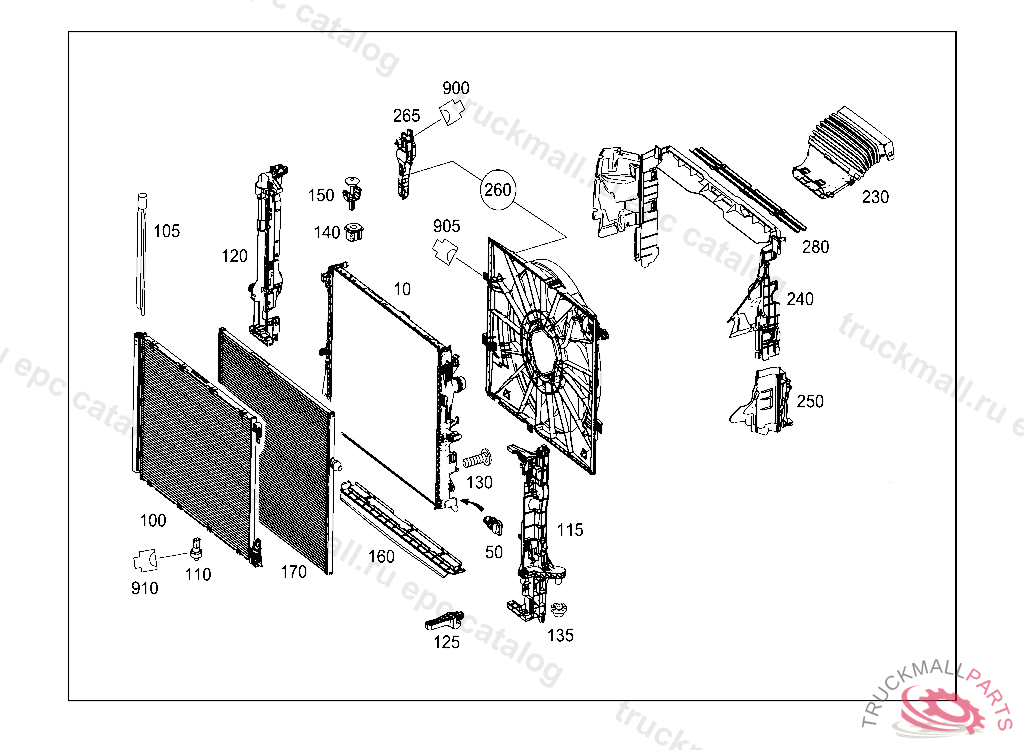

50 RADIATOR - 015 RADIATOR,MOUNTING,AND COVERING IL. 1

Поз.
Артикул
Описание
10
A0995003303
WATER COOLER
50
A0009970024
DRAIN PLUG DRAIN PLUG
100
A0995001854
REFRIGERANT CONDENSER
105
A2228350200
REFRIGERANT DRIER
110
A2110000283
PRESSURE SENSOR
115
A0995041918
SUPPORTING FRAME TO LEFT RADIATOR
120
A0995042018
SUPPORTING FRAME TO RIGHT RADIATOR
125
A2225045940
BRACKET RIGHT
125
A2225045840
BRACKET LEFT
130
N000000002179
HEXALOBULAR BOLT SPLASH GUARD TO FENDER M6X20
135
A2035040012
RUBBER MOUNT BOTTOM LEFT & RIGHT
140
A1695040114
BEARING TOP LEFT AND RIGHT, J 06236120041209
150
A0009912195
CLIP RADIATOR TO SUPPORT
160
A0995000218
RADIATOR GRILLE RADIATOR BOTTOM
170
A0995003603
WATER COOLER LOW TEMPERATURE
230
A2225050161
AIR DUCT COLD AIR INTAKE
240
A2225052530
AIR DUCT TOP
250
A2225054430
AIR DEFLECTOR BOX BOTTOM RIGHT
250
A2225054630
AIR DUCT SEGMENT BOTTOM LEFT, A 20131004
250
A2225054730
AIR DUCT SEGMENT BOTTOM RIGHT, A 20131004 L 00004820131031 V 00004820131031
250
A2225054330
AIR DEFLECTOR BOX BOTTOM LEFT
260
A0999060512
BLOWER
260
A0999060612
BLOWER850 WATT
265
A2049065902
ACTUATOR SHUTTER
280
A2225052730
AIR DUCT RADIATOR
900
A0275457426
CLUTCH HOUSING VALVE UNIT ACTIVE BODY CONTROL Y36/2
905
A2225400081
COUPLING HOUSING COOLER BLOWER M4/7
910
A2105402181
CLUTCH. PIN BUSHING HOUSING SIREN
