Mercedes A6420904801 - Демпферный фильтр

S 350 BLUETEC 4-MATIC 222.133

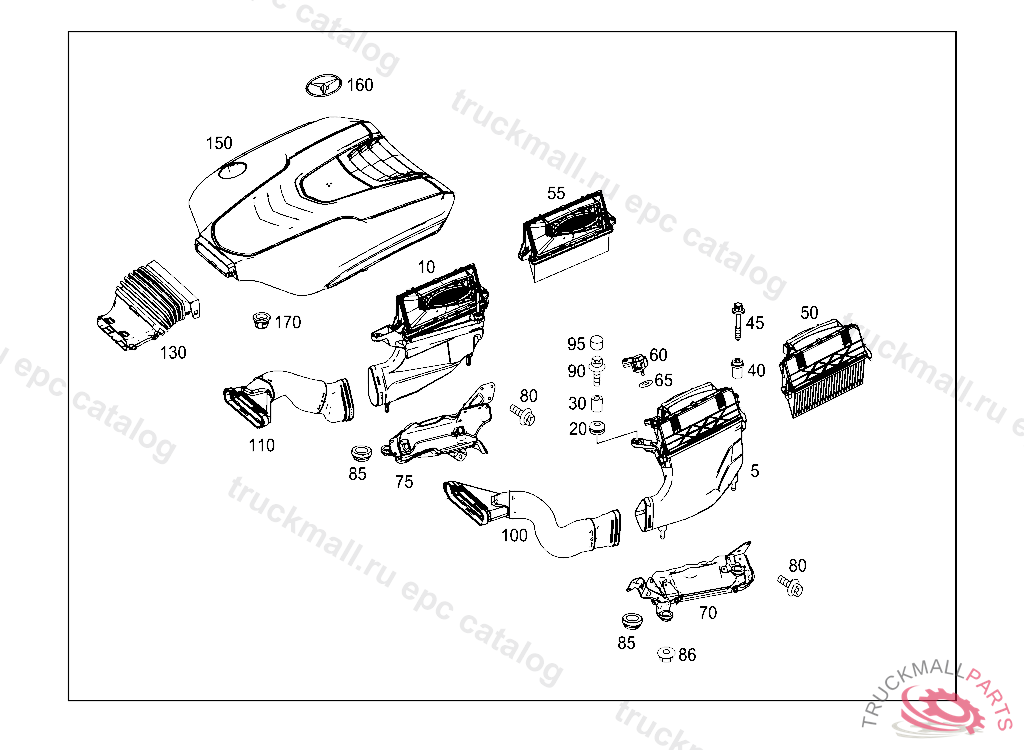

52 CHASSIS SHEET METAL / AIR INTAKE - 135 AIR INTAKE,DIESEL VEHICLES

Поз.
Артикул
Описание
5
A6420904301
DAMPER FILTER LEFT
5
A6420904701
DAMPER FILTER LEFT
10
A6420904401
DAMPER FILTER AIR FILTER HOUSING RIGHT
10
A6420904801
DAMPER FILTER RIGHT
20
A6420940685
RUBBER BUMPER FRONT AND REAR AIR FILTER HOUSINGFASTENING
30
A3522680250
BUSHING SHIFTING ROD
40
A0009920307
THREADED BUSHING REAR AIR FILTER HOUSING FASTENING
45
A0009908403
BOLT FASTENING, LEFT REAR AIR FILTER HOUSING
50
A6420942304
AIR FILTER INSERT LEFT
55
A6420942404
AIR FILTER INSERT RIGHT
60
A0061539728
PRESSURE SENSOR
60
A0051535028
SENDER UNIT
65
A0279972748
SEAL RING PRESSURE SENSOR
70
A6420902941
BRACKET LEFT
75
A6420903141
BRACKET RIGHT
80
N000000003018
HEXALOBULAR BOLT RIGHT BRACKET TO CYLINDER HEAD COVER M6X18
80
N910143006000
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
85
A6420940985
ELASTOMER BEARING AT RIGHT BRACKET
86
N910112006001
NUT , Replaced By: N913023006001
90
N000000003648
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
95
N913018008100
PROTECTIVE CAP. PROTECTION CAP MOUNTING PLATE TO UNDERRUN PROTECTION
100
A6420947797
RAW AIR LINE LEFT
110
A6420947897
RAW AIR LINE RIGHT
130
A2225050161
AIR DUCT COLD AIR INTAKE
150
A6420107267
ENGINE COVER
160
A2037580058
MERCEDES STAR
170
A6420910350
BALL HEAD CONSUMPTION ATTACHMENT, ENGINE COVER
