Mercedes A2315000131 - ДЕРЖАТЕЛЬ

SL 400 231.461

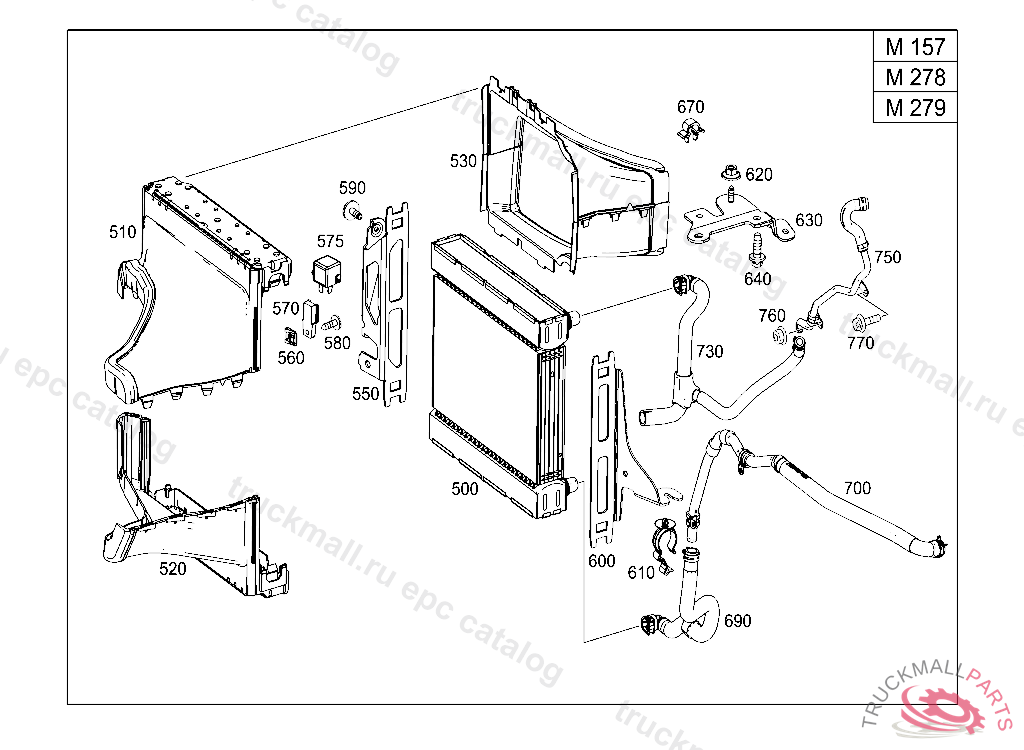

50 RADIATOR - 015 RADIATOR,MOUNTING,AND COVERING IL. 4

Поз.
Артикул
Описание
500
A0995003203
WATER COOLER RIGHT WHEEL ARCH
560
A0049943145
CLIP-TYPE NUT BUMPER TO FRONT MODULE 4,8, J 47253620070424
570
A0025450240
RELAY SACKET. BRACKET RELAY,DRIVE AUTHORIZATION SYSTEM, A 394035 X 001164 EXCEPT CODE 808 ALSO INSTALLED IN VEHICLE FROM A 394036 WITH CODE 807
580
N000000000528
TAPPING SCREW. SHEET METAL SCREW BRACKET TO CAB
590
A0019908000
BOLT LOWER SUPPORT M6X19
600
A2315000131
BRACKET LEFT
610
A1705060241
CLAMP FASTENING COOLANT HOSE
620
N910104006001
NUT-AND-WASHER ASSEMBLY. NUT , Replaced By: N910104006000
630
A2315040940
BRACKET AT LEFT BRACKET
640
N910143008002
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
