Mercedes N910105008005 - БОЛТ М8

SL 400 231.461

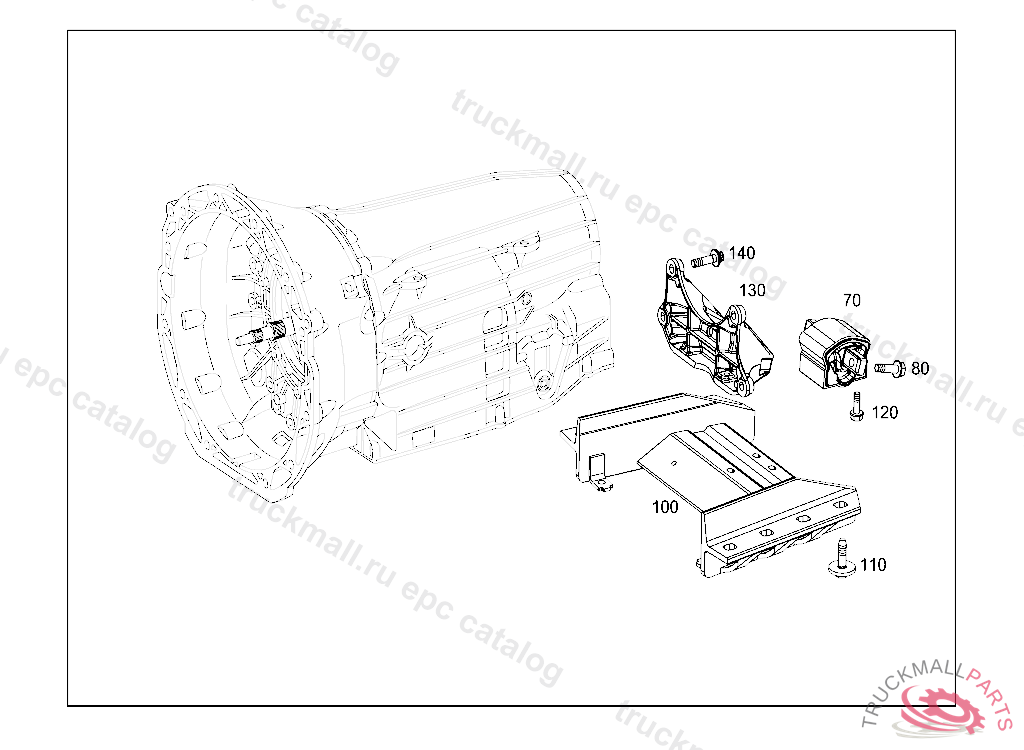

24 ENGINE SUSPENSION - 015 ENGINE SUSPENSION IL. 1

Поз.
Артикул
Описание
70
A2122400818
RUBBER BUSHING REAR, F 78951620111003
80
N000000000428
HEXAGON HEAD BOLT BRACKET TO BRACKET M10X35
100
A2312400802
ENGINE MOUNT REAR
110
A0009906711
HEXAGON HEAD BOLT ENGINE REAR SUPPORT TO FRAME M10X38, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009908911
110
A0009908911
HEX. HD. BOLT W FLANGE ENGINE REAR SUPPORT TO FRAME M10X38
120
N910105008005
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
130
A2112420340
BRACKET AT TRANSMISSION
140
N910143008003
SCREW. HEXALOBULAR BOLT MOUNTING FRAME TO SUPPORT M 8X30
