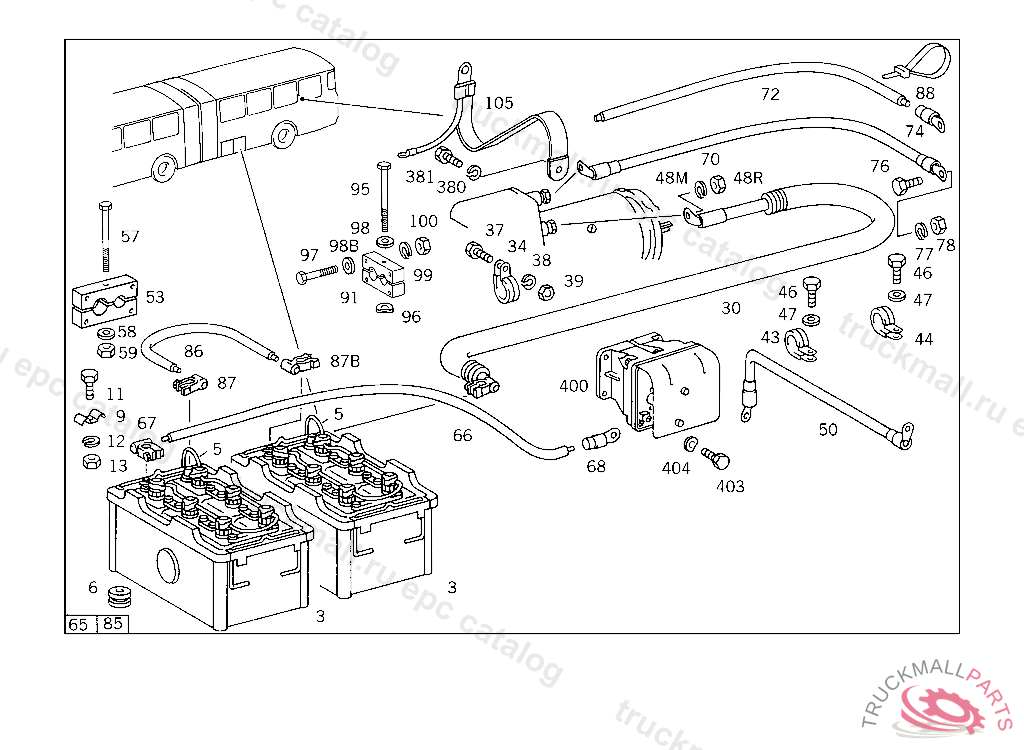

Поз.
Артикул
Описание
3
BATTERY LESS ACID 12V-180A
3
BATTERY FILLED AND CHARGED 12V/180AH
3
BATTERY FILLED AND CHARGED 12V / 200 AH, STATE INDEX 64 WHEN ORDERING
5
VENT BATTERY, UP TO CHASSIS 022725 EXCEPT FOR SEE FOOTN.67,ALSO INSTALLED ON 022728,022734,022744,022746,022749,022752
6
GROMMET CAB ROOF
9
CLAMP
11
SCREW , Replaced By: N304017006018
11
SCREW COVER PLATE TO COVER PLATE M 6 X 12
12
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
13
NUT BALL PIVOT TO LEVER
30
POSITIVE CABLE , Replaced By: A3075400130
30
POSITIVE CABLE , Replaced By: A0005460413, +001A0005469330, +001A3075460240, +001A3075460044
30
ELECTRIC CABLE FROM BATTERY TO CABLE CONNECTOR, ORDER BY THE METER
34
CLAMP LINE MOUNTING
37
SCREW , Replaced By: N304017006020
37
SCREW LICENSE PLATE TO BRACKET
38
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
39
NUT L.H. THREAD
43
CLAMP LINE MOUNTING
44
CLAMP PIPE ON FAN SHROUD
46
SCREW BRACKET MOUNTING
47
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
50
NEG. CABLE , FOR THE NEW PART NO.,SEE STANDARD VERSION, Replaced By: N922002095000, +002N046234010006
50
ELECTRIC CABLE FROM BATTERY MASTER SWITCH TO CABLE CONNECTOR
53
CLAMPING PIECE , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 018248, Replaced By: A3055460644
53
CLAMPING PIECE CABLE HARNESS MOUNTING
57
SCREW , Replaced By: N304014006004
57
SCREW BRACKET TO CROSS MEMBER
58
WASHER , Replaced By: N009021006208
58
WASHER COMPRESSED AIR LINE TO BRACKET
59
NUT L.H. THREAD
65
NEG. CABLE , FOR THE NEW PART NO.,SEE STANDARD VERSION, Replaced By: N072551095880, +001N046234010006, +001N072332015200
66
ELECTRIC CABLE , Replaced By: N922002095000
66
ELECTRIC CABLE FROM BATTERY MASTER SWITCH TO CABLE CONNECTOR
67
SOLDERING TERMINAL NEG.POLE
68
CABLE SHOE FROM BATTERY MASTER SWITCH TO FRAME
70
NEG. CABLE , Replaced By: N072551095880, +002N046432010006
70
ELECTRIC CABLE , Replaced By: N922002095000
72
ELECTRIC CABLE FROM BATTERY MASTER SWITCH TO CABLE CONNECTOR
74
CABLE SHOE FROM BATTERY MASTER SWITCH TO FRAME
76
SCREW , Replaced By: N304017010002
76
SCREW BRACKET TO SIDE MEMBER
77
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
78
NUT L.H. THREAD
85
POSITIVE CABLE , FOR THE NEW PART NO.,SEE STANDARD VERSION, Replaced By: N072551095880, +001N046234010006, +001N072332015100
85
POSITIVE CABLE , FOR THE NEW PART NO.,SEE STANDARD VERSION, Replaced By: N072551095880, +001N046234010006, +001N072332015100
86
ELECTRIC CABLE , Replaced By: N922002095000
86
ELECTRIC CABLE FROM BATTERY MASTER SWITCH TO CABLE CONNECTOR
87
SOLDERING TERMINAL POS. POLE
88
LOOM TIE LINE MOUNTING 280 MM
91
CLAMPING PIECE , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 018248, Replaced By: A3055460644
91
CLAMPING PIECE CABLE HARNESS MOUNTING
95
SCREW DELIVERY AND SUCTION LINES TO ENGINE, FRONT M 6X35
96
SPRING WASHER LICENSE PLATE TO BRACKET
97
SCREW , Replaced By: N304014006004
97
SCREW BRACKET TO CROSS MEMBER
98
WASHER , Replaced By: N009021006208
98
WASHER COMPRESSED AIR LINE TO BRACKET
99
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
100
NUT BALL PIVOT TO LEVER
105
GROUND CABLE GROUND TO ENGINE AND TO FRAME, UP TO CHASSIS 018693 EXCEPT FOR 018411,018469,018489,018529,018549,018589,018610 ALSO INSTALLED ON 018709,018713,018731,018735,018752,018756,018777,018784,018805,018817,018839,018843,018859,018871, 018874,018883,018892,018901,018907,018911,018917,019001,019023,019044,019064,019085,019135,019157, 019180,019221,019243,019276,019319,019361,019403,019424,019488,019530.
380
LOCK WASHER CAB TO FRONT CONSOLE,4 444945
381
SCREW OIL LINE TO CRANKCASE
400
SWITCH ELECTRO-MAGNETIC
400
RELAY (BATTERY MASTER SWITCH)
403
SCREW CLAMP TO BRACKET AND TO PIPE
404
SPRING WASHER , Replaced By: N000137008212
999
CABLE SLEEVE
999
999
999
CASE ELECTRICAL COMPARTMENT
999
SEAL RING BATTERIES I AND II,POS.POLE
999
SEAL RING BATTERY COVER
999
HOSE DE-AERATION 7X11 MM, ORDER BY THE METER
999
VENT , Replaced By: A0005410847
999
VENT BATTERY COVER
999
BLIND CAP TACHOGRAPH LEAD SEALING,4 895864
999
NUT
999
DIAGRAM PAPER SET100 PIECES
999
ROD
999
ROD
999
DETENT
999
FLANGE
999
CONTACT PIN TO PLUG THE BORES
999
BUSHING 3-POLE
999
SWITCH , Replaced By: A3055450022
999
SHELL FROM ELECTRICAL COMPARTMENT PLUGCONNECTION TO LOCK-ANGLE SENDER UNIT
999
LENS HIGH BEAM CONTROL
999
LENS TRUCK-TRACTOR BLINKER,008096
999
SHELL TRAILER BLINKER
999
BOOT PIN BUSHING
999
CONTACT BREAKER POINT , Replaced By: A0115450628
999
NUT PUSH BUTTON SWITCH
999
SOCKET RANGE SELECTOR,AUTOMATIC TRANSMISSION
999
BUTTONTO 003 545 81 24
999
PIN BUSHING HOUSING PIN BUSHING 5.3 MM
999
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2,5 MM2
999
PIN BUSHING , Replaced By: A0075458226
999
PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 4-6 MM2
999
PIN BUSHING , Replaced By: A0005453726
999
BUTTON PUSH BUTTON SWITCH
999
BUTTON
999
BUTTONTO 005 545 90 24
999
PLUG SOCKET , Replaced By: A0005454426
999
PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2.5 MM2
999
ANGLE CABLE CONNECTOR
999
999
GROMMET
999
INSULATING HOSE HOSE LINE PROTECTION 10 MM, ORDER BY THE METER
999
INSULATING HOSE RIGID, FOR CABLE HARNESS DIA.: 12 MM, ORDER BY THE METER
999
INSULATING HOSE PRESSURE REGULATOR,CONNECTION "3", ORDER BY THE METER5 148812
999
INSULATING HOSE RIGID, FOR CABLE HARNESS DIA.: 23 MM, ORDER BY THE METER
999
END PIECE
999
INSULATING HOSE FROM BATTERY TO STARTING MOTOR
999
GROMMET
999
CONNECTOR
999
CONNECTOR
999
CORRUGATED HOSE , ORDER BY THE METER, Replaced By: A0005461630
999
CABLE CONNECTOR
999
999
INSULATING HOSE FLEXIBLE, FOR CABLE HARNESS DIA.: 29.0 MM, ORDER BY THE METER
999
CONDENSER SECONDARY SWITCHBOARD
999
RING DRAIN VALVE TO 000 432 08 07, NOT USED
999
EDGE GUARD SECTION , ORDER BY THE METER
999
EXPANSION PLUG ,030090
999
CLIP HOSE TO CAB,4 238841
999
NUT PRESSURE SWITCH SCREW-CONNECTION M 24X1,5 129167
999
NUT PRESSURE SWITCH SCREW-CONNECTION M 27X1
999
FITTING
999
FITTING
999
WASHER PRESSURE SWITCH SCREW-CONNECTION TO M 24X1,5 129167
999
GROMMET
999
GROMMET1.75 MM
999
PLUG (NEUTRAL SAFETY SWITCH)
999
GROMMET , Replaced By: A0009970381
999
GROMMET3.0 MM
999
GROMMET5.0 MM
999
GROMMET HOSE LINE PROTECTION TO 000 546 16 30,71 30
999
GROMMET LINE MOUNTING 10.0 MM
999
GROMMET
999
GROMMET , Replaced By: A0009972081
999
GROMMET TACHOGRAPH OR SPEEDOMETER
999
GROMMET
999
PLUG TO PLUG THE FREE HOLES FOR TELL-TALE LAMP
999
TELL-TALE LAMP , Replaced By: A0005451630, +001A0005452319
999
LENS TIRE PRESSURE
999
LENS LESS SYMBOL, GREEN TO 001 545 06 15
999
PIN BUSHING HOUSING 4-POLE
999
ROUND PIN BUSHING REAR "ENR" SOLENOID VALVE BRANCH-OFF 0.75-2.5MM2
999
SWITCH
999
RELAY PRESSURE SWITCH
999
999
SWITCH , Replaced By: A0015458107
999
PLUG SOCKET FROM ELECTRICAL COMPARTMENT PLUGCONNECTION TO LOCK-ANGLE SENDER UNIT
999
PLUG 3-POLE
999
SWITCH , Replaced By: A0055451714
999
SWITCH , Replaced By: A0045459614
999
SWITCH STARTING "START", FROM CHASSIS 022726 ALSO INSTALLED ON SEE FOOTN.67,EXCEPT FOR 022728,022734,022744,022746,022749,022752
999
PIN BUSHING HOUSING 6-POLE
999
PLUG HOUSING 8-POLE
999
PIN BUSHING HOUSING 8-POLE
999
PIN BUSHING HOUSING 4-POLE
999
PIN BUSHING HOUSING 3-POLE
999
PLUG LESS DETENT,BUT WITH CATCH FOR HOUSING 2.5 MM2
999
PIN BUSHING HOUSING BIPOLAR
999
999
999
LOOM TIE LINE MOUNTING
999
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
999
PIN BUSHING HOUSING UNIPOLAR
999
PLUG HOUSING 4-POLE
999
PIN BUSHING HOUSING UNIPOLAR
999
PLUG LESS DETENT,BUT WITH CATCH FOR HOUSING 4-6 MM2
999
FLAT PIN BUSHING , Replaced By: A0035455326
999
LENS TELL-TALE LAMP
999
SWITCH FRONT DOOR
999
LENS BABY-CARRIAGE
999
LENS STOP SIGN
999
LENS OIL SUPPLY
999
LENS DOOR RELEASE
999
LENS PARKING BRAKE
999
LENS
999
LENS , NOT USED
999
LENS JACKKNIFING ANGLE
999
LENS AMBER, SYMBOL: BABY-CARRIAGE
999
LENS STOP SIGN
999
LENS OIL SUPPLY
999
LENS RED, SYMBOL: DOOR RELEASE
999
LENS PARKING BRAKE
999
LENS BUS STOP BRAKE
999
LENS FAILURE
999
PIN BUSHING HOUSING 3-POLE,4 483482
999
LENS AUTOMATIC TRANSMISSION, TO BE ADAPTED DURING ASSEMBLY
999
TEMPERATURE GAUGE , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 029742, Replaced By: A0035426305
999
LENS HIGH BEAM
999
LENS BLINKER CONTROL
999
LENS LESS SYMBOL, GREEN
999
LENS"1",950455
999
LENS"2",6 950455
999
LENS"3",6 950455
