Поз.
Артикул
Описание

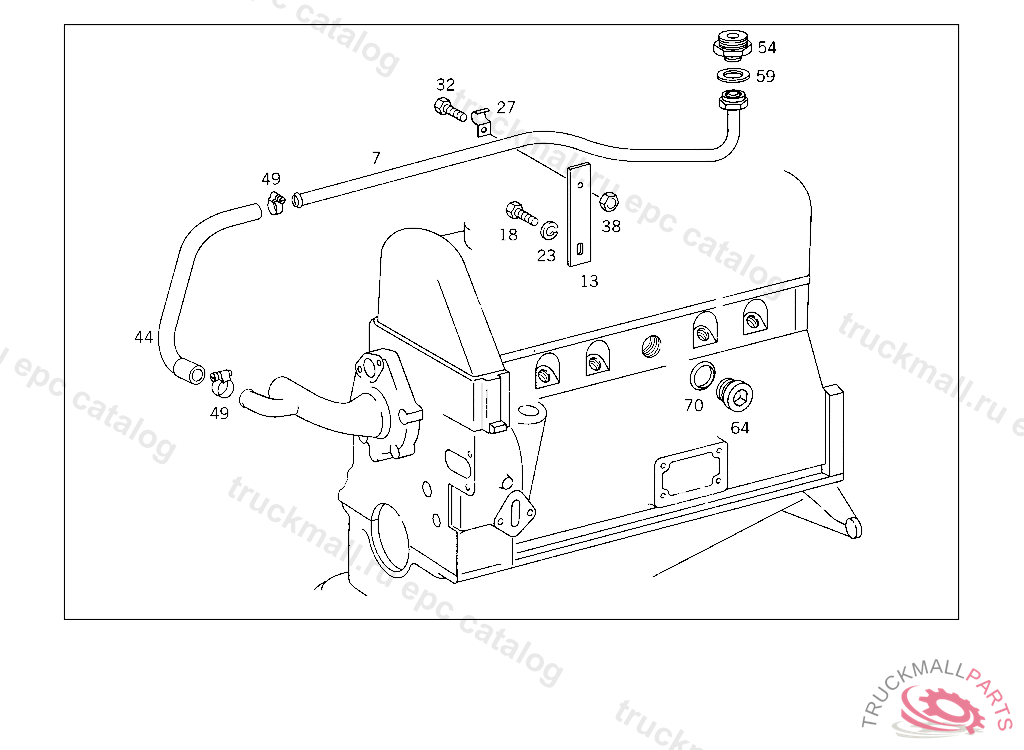

7
LINE HEATING WATER LINE,556499
13
MOUNTING ANGLE HEATING WATER PIPE TO ENGINE
18
SCREW , Replaced By: N304017008016
18
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
23
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
27
CLAMP , Replaced By: A1109950401
27
CLAMP FUEL LINE TO BRACKET
32
SCREW COVER PLATE TO BRACKET
38
NUT PUMP TO BRACKET
38
NUT , Replaced By: N913004006001
44
HOSE PIPE LINE TO CONNECTION FITTING AND TO PRESSURE REGULATOR
44
HOSE FROM PUMP TO HEATING WATER PIPE,504534
49
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
49
CLAMP , Replaced By: N000000000667
54
FITTING LINE CONNECTION
59
SEAL RING
64
SCREW PLUG IN PLACE OF SPEEDOMETER DRIVE
70
SEAL RING OIL LINE TO OIL COOLER
999
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
999
CAP EXPANSION TANK
999
LINE , Replaced By: A0005516256, +001N915003013203, +001N915017015200
999
HOSE FROM HEAT EXCHANGER TO WATER PUMP,028345
999
HOSE FROM PUMP TO HEATING WATER PIPE,504535556499
999
HOSE FROM CYLINDER HEAD TO HEAT EXCHANGER,556500
999
HOSE FROM HEAT EXCHANGER TO WATER PUMP,556500
999
HOSE FROM CYLINDER HEAD TO HEAT EXCHANGER,556500
999
HOSE FROM PUMP TO HEATING WATER PIPE,556500
999
CAP , Replaced By: A6162010008
999
DUST CAP FEED
999
CLAMP , Replaced By: N000000000667
