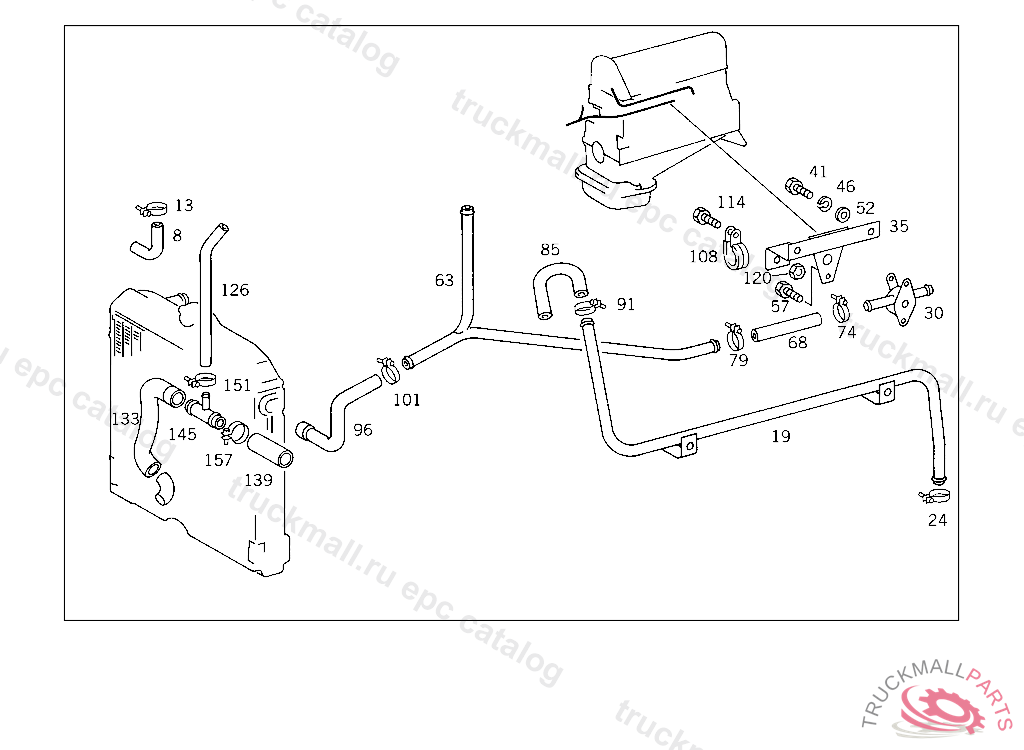

Поз.
Артикул
Описание
8
HOSE FROM CYLINDER HEAD TO HEAT EXCHANGER
13
CLAMP , Replaced By: N000000000667
13
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
19
LINE HEATING WATER
24
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
24
CLAMP , Replaced By: N000000000667
30
VALVE , Replaced By: A0008352420
30
CONTROL VALVE , Replaced By: A0008352820
30
CONTROL VALVE (REGULATING VALVE)
35
BRACKET VALVE
41
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
41
SCREW , Replaced By: N304017008016
46
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
52
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
57
SCREW IN CASE OF SUBSEQUENT INSTALLATION
63
LINE HEATING WATER
68
HOSE HEATING WATER LINE 18X27X90, ORDER BY THE METER
74
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
74
CLAMP , Replaced By: N000000000667
79
CLAMP , Replaced By: N000000000667
79
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
85
HOSE WATER PUMP, NOT USED
91
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
91
CLAMP , Replaced By: N000000000667
96
HOSE HEATING WATER LINES
101
CLAMP , Replaced By: N000000000667
101
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
108
CLAMP LINE MOUNTING
114
SCREW COVER PLATE TO BRACKET
120
NUT , Replaced By: N913004006001
120
NUT PUMP TO BRACKET
126
HOSE FROM HEAT EXCHANGER TO WATER PUMP
133
HOSE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 541599 THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3105010282
139
HOSE , Replaced By: N900271042012
139
HOSE FROM THERMOSTAT TO RADIATOR FILLER NECK, ORDER BY THE METER
145
INTERMEDIATE PIECE
145
HOSE FROM HEAT EXCHANGER TO WATER PUMP
151
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
151
CLAMP , Replaced By: N000000000667
157
CLAMP , Replaced By: N000000000671
157
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
