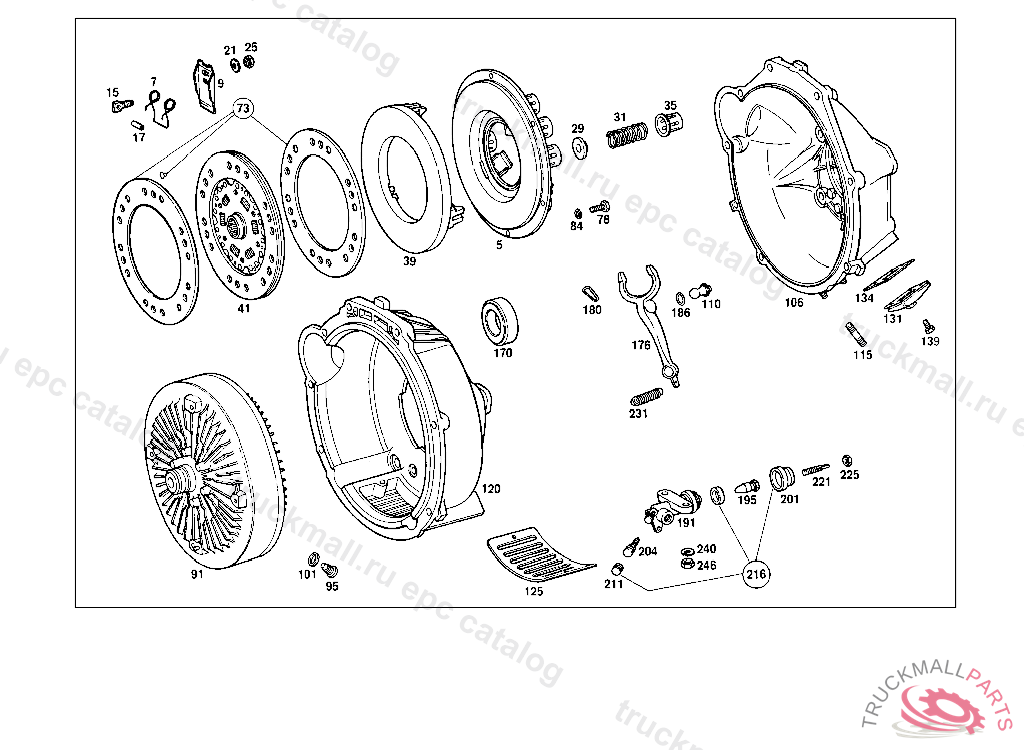

Поз.
Артикул
Описание
7
SPRING
15
PIN
21
SPACER RING
25
NUTTO 001 250 03 04
25
NUT , Replaced By: A0002522772
29
WASHER
78
SCREW PIPE CLAMP
78
SCREW , Replaced By: N304017008021
84
LOCK WASHER TAIL LAMP TO BRACKET
91
HYDRAULIC CLUTCH , 000,001,010 UP TO CHASSIS 130557, 100,101,110 UP TO CHASSIS 225647
95
SCREW PLUG
101
SEAL RING
106
HOUSING
115
STUD TAIL-, BRAKE-, AND TURN SIGNAL LIGHTS
120
HOUSING HYDRAULIC CLUTCH
125
COVER PLATE
131
BOOT
134
SEAL HOLDER
139
SCREW COVER PLATE TO COVER PLATE M 6 X 12
139
SCREW , Replaced By: N304017006018
170
BALL BEARING , 000,001,004,010,016 FROM CHASSIS 081441, 100,101,104,110,116 FROM CHASSIS 128634
176
RELEASE YOKE
180
SPRING
186
SNAP RING
221
ROD
225
NUT , Replaced By: N304035008001
225
NUT
240
LOCK WASHER TAIL LAMP TO BRACKET
246
NUT
999
CLUTCH PRESSURE PLATE , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
SLEEVE
999
RIVET , NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
999
PRESSURE SPRING CLUTCH PRESSURE PLATE
999
CLUTCH LINING , Replaced By: A1085860025
999
THRUST WASHER
999
PRESSURE SPRING , Replaced By: A0002524120
999
RELEASE LEVER , ON SPECIAL REQUEST, H.D. CLUTCH
999
VALVE
999
PIN
999
BOOT
999
BOOT ,027649
999
SLAVE CYLINDER , 010 FROM CHASSIS 048977,012 FROM CHASSIS 108750 NOT FOR USE WITH MERCEDES-BENZ HYDRAULIC-AUTOMATIC CLUTCH
999
PROTECTIVE CAP , Replaced By: A0004217187
999
PROTECTIVE CAP ,5 962906
999
REPAIR KIT , 014 FROM CHASSIS 049462,021 FROM CHASSIS 049449,023 FROM CHASSIS 049723
999
REPAIR KIT ,027649
999
BALL BEARING , 000,001,004,010,016 FROM CHASSIS 081441, 100,101,104,110,116 FROM CHASSIS 128634
999
CLUTCH DISC SPLINE-SHAFT SECTION, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
REPAIR KIT ON CLUTCH END, NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
999
RELEASE BEARING
999
RELEASE BEARING , ON SPECIAL REQUEST, H.D. CLUTCH
999
HYDRAULIC CLUTCH , 000,001,004,010,016 FROM CHASSIS 130558, 100,101,104,110,116 FROM CHASSIS 225648
999
SPRING
999
REPAIR KIT CLUTCH LINING
999
WASHER BRACKET TO REAR CROSS MEMBER
999
SPRING WASHER LICENSE PLATE TO BRACKET
999
SPRING WASHER , Replaced By: N000137008212
999
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SPRING WASHER CAB FLOOR
999
SPRING WASHER AIR COMPRESSOR LINE TO ENGINE,5 812731 - 5 8174215 936366 - 5 999999K 000001N 817422K 126820
999
SCREW CONNECTOR TO EXHAUST MANIFOLD
999
SCREW COVER PLATE TO BRACKET
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N304017012002
999
NUT STRAP TO SUPPORT,5 149419
999
CLAMPING SLEEVE
999
SEAL RINGTO 001 431 72 14
999
SCREW PUMP TO BRACKET
999
SCREW RELEASE LEVER TO SHAFT, 024,026,027,028,121,122 5 095724 065,131,132 5 104252
999
LOCK WASHER FITTING TO BRACKET
