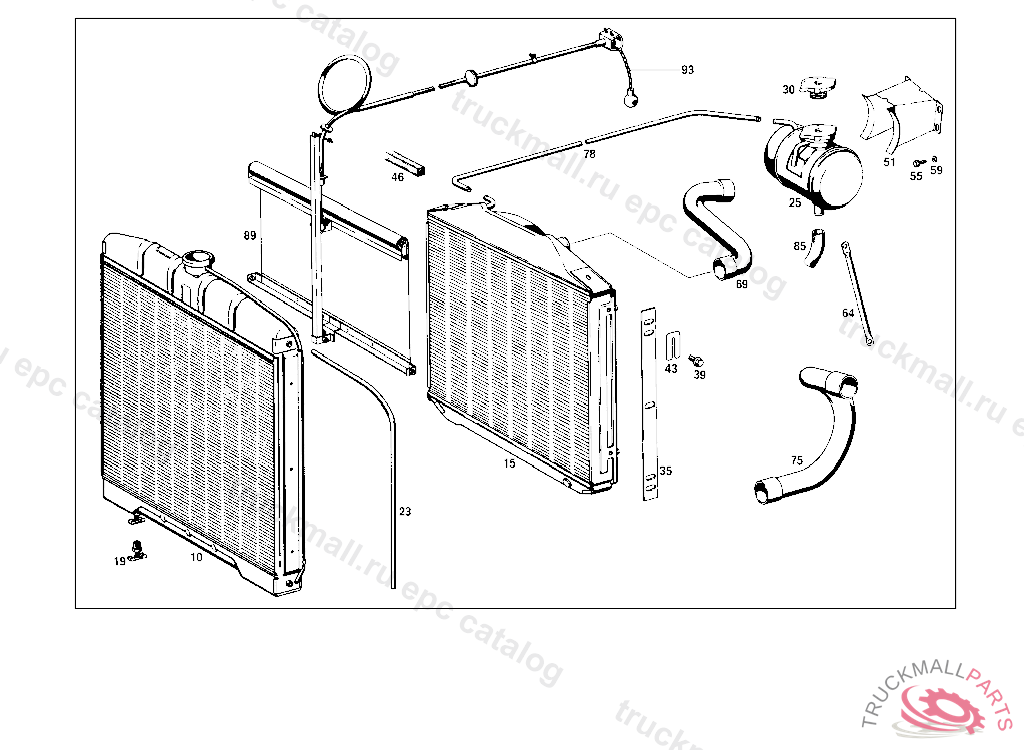

Поз.
Артикул
Описание
15
RADIATOR
19
VALVE
25
TANK
30
RADIATOR CAPTO 309 500 22 02,309 500 46 02
35
DAMPING STRIP 386 MM
39
SCREW
43
SHIM RADIATOR MOUNTING
51
BRACKET
55
SHEET METAL SCREW BRACKET TO CAB FLOOR, EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 5 180559
59
WASHER COMPRESSED AIR LINE TO BRACKET
59
WASHER , Replaced By: N009021006208
64
BRACKET EXPANSION TANK TO BRACKET, NO LONGER AVAILABLE
69
HOSE , 014 FROM CHASSIS 021277 021 FROM CHASSIS 021242
75
HOSE , FROM CHASSIS 031456 INSTALLED ON,SEE FOOTN.14 021,023 FROM CHASSIS 031524 INSTALLED ON,SEE FOOTN.15
78
BREATHER PIPE
85
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR, ORDER BY THE METER
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
LOCK WASHER T-FITTING TO BRACKET
999
CLAMP
999
CLAMP
999
HOSE , Replaced By: N900271008019
999
CLAMP , 014 UP TO CHASSIS 021276 021 UP TO CHASSIS 021241
999
STRAP AIR HOSE TO ELBOW AND TO INTAKE CASE 570 MM, ORDER BY THE METER
999
LOOM TIE ALTERNATOR BREATHING
999
SCREW PUMP TO BRACKET
999
HOSE HAND BRAKE VALVE BLEEDING, ORDER BY THE METER
999
CLAMP
999
NUT BALL PIVOT TO LEVER
999
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
999
SCREW COVER PLATE TO BRACKET
999
SCREW WIRE CABLE TO BRACKET OF BEARING BRACKET
999
LOCK WASHER. SPRING LOCK WASHER ELECTRIC CABLE TO HORN TO 004 542 44 20 /45 20
999
WASHER , UP TO CHASSIS: 017 029988 114 000523 117 064694
999
PLASTIC SECTION RADIATOR MOUNTING,500 MM
999
FAN SHROUD
999
LOOM TIE
999
RADIATOR CAP
