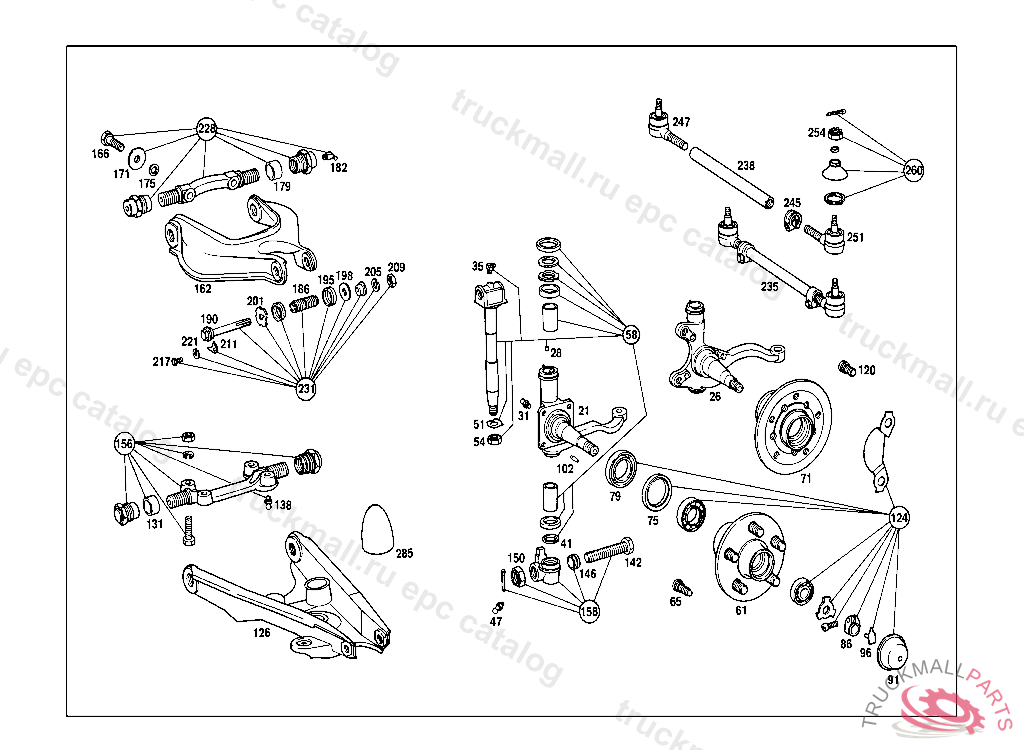

Поз.
Артикул
Описание
26
STEERING KNUCKLE LEFT
28
CYLINDRICAL PIN
31
GREASE NIPPLE
31
GREASE NIPPLE , Replaced By: N071412008102
35
GREASE NIPPLE FOR SPRING
41
SPACER WASHER AS REQUIRED 1.7 MM
47
GREASE NIPPLE
47
GREASE NIPPLE , Replaced By: N071412008102
51
LOCK
54
NUT BRACKET TO SIDE MEMBER,K 035196
54
NUT , Replaced By: N308673014001
58
REPAIR KIT STEERING KNUCKLE
71
WHEEL HUB
75
RETAINER
79
SEAL RING
86
NUT
91
HUB CAP
96
CONTACT SPRING FRONT WHEEL HUB TO STEERING KNUCKLE
102
GROOVED PIN ON SPECIAL REQUEST, INSTALLATION OF RADIO SET
120
SCREW
124
REPAIR KIT FRONT WHEEL BEARING
124
REPAIR KIT , Replaced By: A1073300051
126
TRANSVERSE CONTROL ARM BOTTOM LEFT
131
SEAL RING
138
GREASE NIPPLE , Replaced By: N071412008102
138
GREASE NIPPLE
142
PIN
146
SEAL RING
150
NUT
156
REPAIR KIT LOWER CONTROL ARM PIVOT PIN
158
REPAIR KIT LOWER CONTROL ARM
162
TRANSVERSE CONTROL ARM TOP
166
SCREW
171
LOCK
175
WASHER , Replaced By: N000433013010
175
WASHER PULL ROD TO BRAKE INTERMEDIATE LEVER
179
SEAL RING
182
GREASE NIPPLE FOR SPRING
186
SCREW COLLAR
190
PIN
195
SEAL RING
198
WASHER
201
WASHER
205
LOCK WASHER COMPRESSED AIR LINE TO BRACKET
209
NUT BATTERY CABLE
209
NUT BRACKET TO SUPPORT AND TO END PIECE
211
LOCK
217
SCREW GROUND CABLE TO FRAME M 10X20
221
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
228
REPAIR KIT UPPER CONTROL ARM PIVOT PIN
231
REPAIR KIT UPPER TRANSVERSE CONTROL ARM
235
TIE ROD
238
TIE ROD , Replaced By: A1153300703
238
TIE ROD , NO LONGER AVAILABLE
245
CLAMP JOINT TO TIE ROD,063899-073467
245
CLAMP , Replaced By: A0003384245
247
BALL JOINT , Replaced By: A0003385210, +001N913002010002
247
BALL JOINT R.H. THREAD
247
BALL JOINT R.H. THREAD
251
BALL JOINT L.H. THREAD, 000,003,007,102,103,105,200 10/50,12/52 A 063107 20/60,22/62 A 072609 083,086,093,183,190,193,280,283 F 007679
251
BALL JOINT L.H. THREAD, 023 128307 EXCEPT FOR 127479,127481,127553,127564,127586,127637,127646,127652,127654,127657,127661,127664,127669,127671, 127673,127675,127676,127678,127684,127687,127689,127690,127692-127696,127698,127701,127702,127704, 127705,127708-127727,127729-127892,127894-128306. 033 052425 EXCEPT FOR 052340,052362,052366,052367,052373-052375,052380,052382,052383,052386-052388,052393-052398,052400- 052404,052406-052423.
251
BALL JOINT , 003 114309 007 106209 093 012242 102,103 359715 105 289849 183 023856 190 027445 193 012550 200 125617 280 005879 283 013383 000,003,007,102,103,105,200 10/50,12/52 A 063106 20/60,22/62 A 072608 083,086,093,183,190,193,280,283 F 007678, Replaced By: A0003385010, +001N913002010002
254
NUT
260
REPAIR KIT TIE ROD BOOT AND DRAG LINK BOOT,RESP., 000,003,007,102,103,105,200 10/50,12/52 A 063106 20/60,22/62 A 072608 083,086,093,183,190,193,280,283 F 007678
999
BOOT , Replaced By: A0003381397
999
CLAMPING RING BOTTOM, NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
CLAMPING RING TOP, NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
BOOT , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
TAPERED ROLLER BEARING INSIDE,F 023121 ALSO INSTALLED ON F 027127
999
TAPERED ROLLER BEARING OUTSIDE,F 023121 ALSO INSTALLED ON F 027127
999
BEARING HOUSING
999
HALF FRONT AXLE RIGHT
999
RUBBER BUFFER
999
RUBBER BUFFER
999
HOUSING
999
RUBBER MOUNTING , NO LONGER AVAILABLE
999
UNIVERSAL JOINT , NO LONGER AVAILABLE
999
HALF FRONT AXLE ,042 016642, Replaced By: A1113303198, +001A0005862742
999
TRANSVERSE CONTROL ARM BOTTOM RIGHT
999
HALF FRONT AXLE ,042 016643, Replaced By: A1103301498, +001A0014218298
999
HALF FRONT AXLE ,042 016643, Replaced By: A1103301598, +001A0014278398, +001A0005867242
999
STEERING KNUCKLE RIGHT
999
RETAINER
999
KINGPIN , NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
999
BUSHING BOTTOM
999
PIN
999
PIN LOWER CONTROL ARMS
999
SCREW COLLAR THREAD O. D. 30.9 MM
999
SCREW COLLAR THREAD O. D. 29.9 MM
999
RUBBER BUFFER
999
RUBBER MOUNTING
999
HUB CAP , Replaced By: A1083340025, +002A2015470085
999
TIE ROD , Replaced By: A1073300103, +002N913002010002
999
RING
999
LOCK
999
ECCENTRIC BUSHING
999
SPACER RING , NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
999
THRUST WASHER BOTTOM, NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
999
DUST CAP , NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
999
THRUST WASHER TOP, NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
999
SCREW COLLAR THREAD O. D. 29.9 MM
999
SCREW COLLAR THREAD O. D. 30.9 MM
999
SCREW , ON SPECIAL REQUEST, FLOOR SHIFT
999
SPACER WASHER AS REQUIRED 2.3 MM
999
SPACER WASHER AS REQUIRED 2.5 MM
999
SPACER WASHER AS REQUIRED 2.7 MM
999
SPACER WASHER AS REQUIRED 1.9 MM
999
SPACER WASHER AS REQUIRED 2.1 MM
999
BUSHING TOP
999
STEERING KNUCKLE SUPPORT
999
COTTER PIN CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
999
COTTER PIN
999
LOCK WASHER
999
LOCK WASHER TAIL LAMP TO BRACKET
999
SCREW CLAMP TO BRACKET AND TO PIPE
999
NUT
999
NUT , Replaced By: N304032008006
999
NUT COVER PLATE
999
NUT , Replaced By: N308673012002
999
SCREW CLAMP
999
NUT
999
NUT. HEXAGON NUT SHOCK ABSORBER MOUNTING
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
LOCK WASHER FITTING TO BRACKET
999
NUT BRACKET TO CROSS MEMBER
