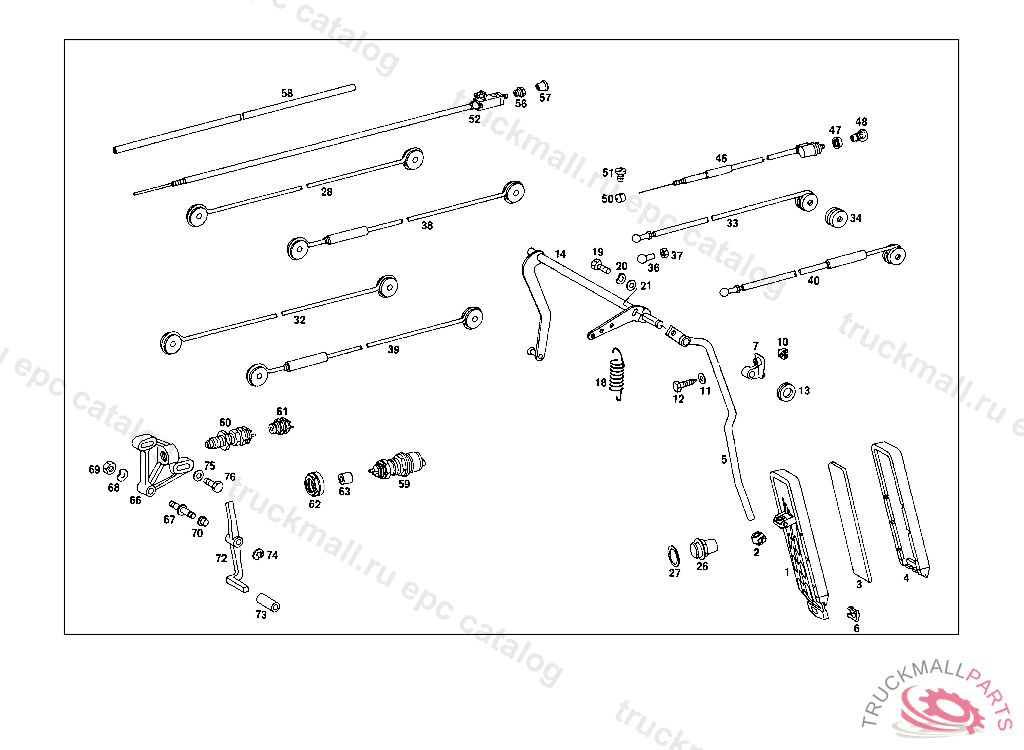

Поз.
Артикул
Описание
1
ACCELERATOR PEDAL
2
JOINT ,B 859430
3
ACCELERATOR PEDAL
3
INSERT , Replaced By: A1163010182
4
PAD , Replaced By: A1233000204
5
LEVER
6
CLIP
6
BRACKET , Replaced By: A1249888678
7
BEARING
10
CLIP PRE-GLOW TIME RELAY TO COWL
11
WASHER COMPRESSED AIR LINE TO BRACKET
11
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
12
SHEET METAL SCREW
13
GROMMET
14
SHAFT
18
SPRING
19
SCREW , Replaced By: N304017008016
19
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
20
SPRING WASHER , Replaced By: N000137008212
20
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
21
WASHER , Replaced By: N000125008443
21
WASHER EXHAUST MUFFLER TO STRAP
26
STOP
27
SEAL RING KICK-DOWN SWITCH
40
ROD
46
WIRE CABLE
47
NUT
48
BUTTON IDLING ADJUSTMENT,303364
50
END PIECE WIRE CABLE
51
SCREW
59
STOP , UP TO CHASSIS: 011: 12/52 100000 007,008,015,017: 12/52 200000
60
STOP
61
SWITCH , UP TO CHASSIS: 011: 12/52 100000 007,008,015,017: 12/52 200000
62
NUT
63
RUBBER BUFFER
66
BEARING BRACKET
67
STUD
68
SPRING WASHER STEERING COLUMN BRACKET TO CAB
69
NUT , Replaced By: N304032010002
69
NUT
70
BUSHING
72
LEVER
73
HOSE FUEL LINE, ORDER BY THE METER
74
LOCK PLATE RELEASE LEVER TO SHAFT
75
WASHER , Replaced By: N000125008443
75
WASHER EXHAUST MUFFLER TO STRAP
76
SCREW , Replaced By: N304017008034
76
SCREW BRACKET TO CROSS CONNECTION STRUT
999
KICK-DOWN SWITCH , Replaced By: A0003000141
999
KICK-DOWN SWITCH , FROM CHASSIS: 011: 12/52 100001 007,008,015,017: 12/52 200001
999
BALL SOCKET , Replaced By: A0009918922
999
BALL SOCKETTO 102 070 09 75, Replaced By: A0009930461
999
CONICAL CUPTO 102 070 09 75
999
WIRE CABLE , Replaced By: A1153000832
999
BUTTON. KNOB
999
BUSHING , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 015 203557 017 002324 110 404833 105,107,108,117,119,001920 115 204352, Replaced By: A1150720450
999
ACCELERATOR PEDAL , Replaced By: A1233000204
999
WIRE CABLE , Replaced By: A1153000832
999
SHAFT , Replaced By: A1143000020
999
ACCELERATOR PEDAL , UP TO CHASSIS: 000,002,010 103904 015 131402 100,102,103,110,112 273248 115 137906, Replaced By: A1233000204, +001A1249888678
999
WIRE CABLE , Replaced By: A1153000832
999
ACCELERATOR PEDAL , Replaced By: A1233000204
999
SHAFT , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 015 260648 005,017 043713 110 443775 105,107,108,117,119 082072 115 275669, Replaced By: A1153001920
999
SHAFT , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 000,002,010 111614 015,143479 100,102,103,110,112,295234 115 150652, Replaced By: A1153001920
999
SHAFT , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 015 260648 005,017 043713 110 443775 105,107,108,117,119 082072 115 275669, Replaced By: A1153001920
999
SHAFT
999
ROD , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 000,002,010 111614 015,143479 100,102,103,110,112,295234 115 150652, Replaced By: A1153003415
999
JOINT
999
PAD , Replaced By: A1163010082
999
BEARING , Replaced By: A1153010518
999
BEARING , Replaced By: A1153010818
999
LEVER
999
ACCELERATOR PEDAL , Replaced By: A1233000204
999
PAD , Replaced By: A1163010182
999
RING WIRE CABLE TO LEVER
999
ACCELERATOR PEDAL , Replaced By: A1233000204
999
BOOT
999
SPRING
999
NUT TACHOGRAPH TO BRACKET
999
LOCK RING
